! Argument of \language@active@arg" has an extra } in a tikz-cd diagram

Question

I am trying to insert a tikz-cd diagram which I have previously drawn in Obsidian into my TeX document. The code including the diagram is:

\begin{equation*}
    \begin{tikzcd}[scale=3]
        \mathcal{A} \otimes \mathcal{A} \otimes \mathcal{A}
            \arrow[r, "\nabla \otimes \text{id}"]
            \arrow[d, "\text{id} \otimes \nabla"] &
        \mathcal{A} \otimes \mathcal{A} \arrow[d, "\nabla"] \\
        \mathcal{A} \otimes \mathcal{A} \arrow[r, "\nabla"] &
        \mathcal{A}
    \end{tikzcd}
\end{equation*}

I get the following error:

Argument of \language@active@arg" has an extra }.
<inserted text>
\par
l.100 \end{tikzcd}
I've run across a `}' that doesn't seem to match anything.
For example, `\def\a#1{...}' and `\a}' would produce
this error. If you simply proceed now, the `\par' that
I've just inserted will cause me to report a runaway
argument that might be the root of the problem. But if
your `}' was spurious, just type `2' and it will go away.
Runaway argument?

My preamble:

\documentclass[a4paper,12pt]{article}
\usepackage{cmap}

\usepackage[utf8]{inputenc}

\usepackage[english,russian]{babel}
\usepackage{framed}
\usepackage{hyperref}
\usepackage{amsmath}
\usepackage{amsthm}
\usepackage{amssymb}
\usepackage{graphicx}
\usepackage[colorinlistoftodos]{todonotes}
\usepackage{wrapfig}
\usepackage{lipsum}
\usepackage{listings}
\usepackage{color}
\usepackage{indentfirst}
\usepackage{times}
\usepackage{textcomp}
\usepackage{tikz-cd}
\definecolor{mygray}{rgb}{0.4,0.4,0.4}
\definecolor{mygreen}{rgb}{0,0.8,0.6}
\definecolor{myorange}{rgb}{1.0,0.4,0}
\lstdefinestyle{customc}{
  belowcaptionskip=1\baselineskip,
  breaklines=true,
  frame=L,
  xleftmargin=\parindent,
  language=C,
  showstringspaces=false,
  basicstyle=\footnotesize\ttfamily,
  keywordstyle=\bfseries\color{green!40!black},
  commentstyle=\itshape\color{purple!40!black},
  identifierstyle=\color{blue},
  stringstyle=\color{orange},
  numbers=left,
  numbersep=12pt,
  numberstyle=\small\color{mygray},
}
\lstset{escapechar=@,style=customc}
\newcommand{\HRule}{\rule{\linewidth}{0.5mm}}
\theoremstyle{definition}
\newtheorem{definition}{Определение}

Googling this error, I've come across an answer recommending finding some substitute for the " symbol. However, I have no idea how am I supposed to substitute " in a tikz-cd diagram.

P.S. This is my first time using tikz-cd in a TeX document, and not inside the Obsidian environment, so errors in my use of tikz-cd are also possible.

score 1 · Accepted Answer · answered Feb 24 '24 at 17:47

You want to load the TikZ library babel.

By the way, times is obsolete and actually does nothing at all when Cyrillic is involved. The package tempora has support of a Times-like Cyrillic font; I also load newtxmath for Times-like math symbols.

Also \text{id} is wrong and should be \mathrm{id}.

Change the order of package loading: hyperref should be last. No need for either cmap or inputenc.

\documentclass[a4paper,12pt]{article}
%\usepackage{cmap}
%\usepackage[utf8]{inputenc}
\usepackage[english,russian]{babel}
\usepackage{amsmath}
\usepackage{amsthm}
\usepackage{amssymb}
\usepackage{graphicx}
\usepackage[colorinlistoftodos]{todonotes}
\usepackage{wrapfig}
\usepackage{lipsum}
\usepackage{listings}
\usepackage{color}
\usepackage{indentfirst}
\usepackage{tempora}
\usepackage{newtxmath}
\usepackage{textcomp}
\usepackage{tikz-cd}
\usetikzlibrary{babel}
\usepackage{framed}
\usepackage{hyperref}
\definecolor{mygray}{rgb}{0.4,0.4,0.4}
\definecolor{mygreen}{rgb}{0,0.8,0.6}
\definecolor{myorange}{rgb}{1.0,0.4,0}
\lstdefinestyle{customc}{
  belowcaptionskip=1\baselineskip,
  breaklines=true,
  frame=L,
  xleftmargin=\parindent,
  language=C,
  showstringspaces=false,
  basicstyle=\footnotesize\ttfamily,
  keywordstyle=\bfseries\color{green!40!black},
  commentstyle=\itshape\color{purple!40!black},
  identifierstyle=\color{blue},
  stringstyle=\color{orange},
  numbers=left,
  numbersep=12pt,
  numberstyle=\small\color{mygray},
}
\lstset{escapechar=@,style=customc}
\newcommand{\HRule}{\rule{\linewidth}{0.5mm}}
\theoremstyle{definition}
\newtheorem{definition}{Определение}
\begin{document}

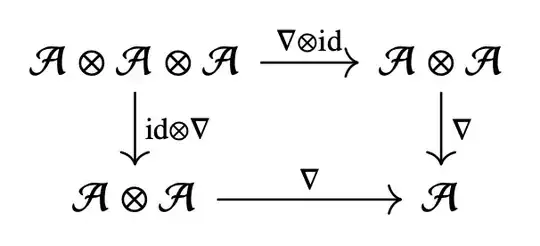

\begin{equation}
    \begin{tikzcd}[scale=3]
        \mathcal{A} \otimes \mathcal{A} \otimes \mathcal{A}
            \arrow[r, "\nabla \otimes \mathrm{id}"]
            \arrow[d, "\mathrm{id} \otimes \nabla"] &
        \mathcal{A} \otimes \mathcal{A} \arrow[d, "\nabla"] \

        \mathcal{A} \otimes \mathcal{A} \arrow[r, "\nabla"] &
        \mathcal{A}
    \end{tikzcd}
\end{equation}
\end{document}
