Chemfig: colour entire atom or section of atom

Question

I have a molecule (in this case a copolymer) where I would like to hilight the monomers by colouring a number of atoms. Is there a more efficient way to do this than colouring each atom and bond individually? chemfig syntax can get rather verbose.

A Google search for "copolymer" turns up this, which is essentially what I'm trying to achieve.

enter image description here

We’ll need a minimal working example (MWE). What are monomers? — Qrrbrbirlbel, Mar 03 '13 at 05:31
I found an example of what I'm trying to do. A monomers is a small molecule that link up to form long chains, or polymers. — Anthony, Mar 03 '13 at 05:37
You can color the entire molecule by using the optional argument of \chemfig. I am not aware of a way of coloring parts of molecules other than using the optional arguments of each bond, though. — cgnieder, Mar 03 '13 at 07:11
@Anthony, can you post or link to the example that you found? — alfC, Jun 21 '13 at 06:44
I don't remember if I ever found a chemfig example; I think I might have been referring to the image in the question. — Anthony, Jun 22 '13 at 19:26

score 4 · Answer 1 · answered Jan 30 '14 at 17:36

Here is a method to color both all atoms and bonds:

\documentclass{article}
\usepackage{chemfig}
\begin{document}
\def\ZZ#1{\global\setbondstyle{thick,color=#1}\gdef\printatom##1{\color{#1}\ensuremath{\mathrm{##1}}}}
\def\paren#1{\rlap{\kern-.75em$\left(\vrule height1ex width0pt depth1ex\vrule height0pt width2.5em depth0pt\right)_{\!#1}$}}
\definesubmol\NN{-[,,,,draw=none]}
\definesubmol\Red{(!\NN\ZZ{red})}
\definesubmol\Green{(!\NN\ZZ{green!40!black})}
\definesubmol\Purple{(!\NN\ZZ{purple})}
\setatomsep{2em}\setbondstyle{thick}
\chemfig{[:30]!\Purple EtO-([,.75]=[2]S)-[:-30]S-[,,,,,black]!\Green(-[6,0.25]\paren n)
    ([,.75]-[2]O-(=[2]O)-[:-30])-[:-30,1.25]-[,1.25,,,,black]!\Red(-[6,0.25]\paren m)
    ([,.75]-[2]O-(=[2]O)-[:-30]tBu)-[:-30,1.25]-[,1.25]R}
\end{document}

enter image description here

score 2 · Answer 2 · edited Jan 29 '14 at 22:08

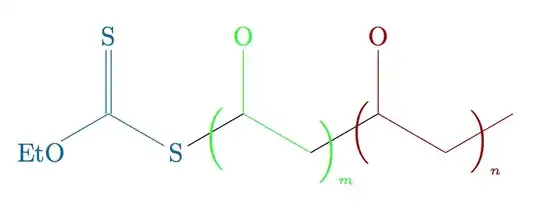

Here's a simple solution. It still needs some tweaking but the idea, how to proceed is the following:

enter image description here

\documentclass{article}

\usepackage{chemfig}

\definecolor{col1}{RGB}{0,102,153}
\definecolor{col2}{RGB}{0,252,0}
\definecolor{col3}{RGB}{150,0,0}

\newcommand\setpolymerdelim[2]{\def\delimleft{#1}\def\delimright{#2}}
\def\makebraces[#1,#2]#3#4#5{%
\edef\delimhalfdim{\the\dimexpr(#1+#2)/2}%
\edef\delimvshift{\the\dimexpr(#1-#2)/2}%
\chemmove{%
\node[at=(#4),yshift=(\delimvshift)]
{$\left\delimleft\vrule height\delimhalfdim depth\delimhalfdim
width0pt\right.$};%
\node[at=(#5),yshift=(\delimvshift)]
{$\left.\vrule height\delimhalfdim depth\delimhalfdim
width0pt\right\delimright_{\rlap{\tiny$#3$}}$};}}
\setpolymerdelim()

\begin{document}

\chemfig{
\textcolor{col1}{EtO}-[:30,,,,col1](=[:90,,,,col1]\textcolor{col1}{S})-[:-30,,,,col1]\textcolor{col1}{S}
-[@{left}:30](-[:90,,,,col2]\textcolor{col2}{O})-[:-30,,,,col2]-[@{right}:30,0.5]-[@{lleft}:30,0.5](-[:90,,,,col3]\textcolor{col3}{O})-[:-30,,,,col3]-[@{rright}:30,,,,col3]
}
{\color{col2}\makebraces[5pt,12pt]{m}{left}{right}}
{\color{col3}\makebraces[5pt,12pt]{n}{lleft}{rright}}

\end{document}

But as cgnieder mentioned, you have to probably color "manually" each bond separately...
