MATLAB like command box

Question

hello i am trying to set up style for script box.

so far i got \begin{script*} >> help \end{script*} working and displaying

i want final version to look some what similar to this picture

and have second comment that will use more or less same environment

for example

i'm sure that it can be done with latex, but i don't have enough experience and knowledge.

any help will be appreciated thank you!

[UPDATE] HERE is the final version that i have decide to stay with, it uses tikz and mdframed

\documentclass{article}
\usepackage[dvipsnames]{xcolor}
\usepackage{listings}
\definecolor{topBlue}{RGB}{42,93,147}
\definecolor{bottomBlue}{RGB}{10,60,113}
\definecolor{sideline}{RGB}{235,235,237}
\definecolor{frameBlue}{RGB}{17,74,135}
\usepackage{tikz}

\usepackage[framemethod=TikZ]{mdframed}
\usetikzlibrary{calc,shapes.geometric}

\newcommand{\triangcirc}{\tikz{
\node[draw=frameBlue,inner ysep=4pt,
      color=frameBlue,
      top color=topBlue,
      bottom color=bottomBlue,
      text=white,
      align=flush left,
      font=\textbf\textsf,
      text width=\textwidth] (a) {Command Window};
\node[circle,white,draw,inner sep=3pt] (c) at ([xshift=-3mm]a.east) {};
\node[isosceles triangle,
      white,
      fill,
      rotate=-90,
      anchor=apex,
      isosceles triangle apex angle=60,
      inner sep=1.2pt] (t) at ([yshift=1.5pt]c.south) {};}}

\mdfdefinestyle{commandline}
{leftmargin=0pt, rightmargin=0pt,innerleftmargin=-0.5pt,innerrightmargin=7.5pt,
 middlelinecolor=frameBlue,
 middlelinewidth=1.2pt,
 frametitlerule=false,
 backgroundcolor=white,
 frametitle={\triangcirc},
 frametitleaboveskip=-0.5pt,
 frametitlebelowskip=0pt,
 singleextra={\draw[sideline,line width=12pt]
      ($(O)+(7pt,1pt)$) -- ($(O|-P)+(7pt,-\mdfframetitleboxtotalheight)-(0,1pt)$);
      \node[inner sep=0pt,color=black]at ($(O)+(7pt,9pt)$) {$\scriptstyle f\!x$}; }
}

\lstnewenvironment{script} {\lstset{language=Matlab,xleftmargin=5mm,basicstyle=\footnotesize,,breaklines=true,aboveskip=-2pt,belowskip=0pt}} {}
\surroundwithmdframed[style=commandline]{script}

\begin{document}
\begin{script}
>> help sin
 sin    Sine of argument in radians.
    sin(X) is the sine of the elements of X.

    See also asin, sind.

    Overloaded methods:
       sdpvar/sin
       codistributed/sin
       gpuArray/sin

    Reference page in Help browser
       doc sin

>>
\end{script}

\end{document}

and THANKS FOR BOTH ANSWERS!!!

Answer 1

Just a quick cook-up if mdframed doesn't have a direct support for this (I doubt that it doesn't though). The basic functionality is there such as shrinking via depending on the vertical size etc. but I didn't test it extensively and I got lazy for the triangle of the $fx$ part. Probably a better font would make it look way nicer.

\documentclass{article}
\usepackage{tikz,listings,amssymb}
\lstset{language=Matlab,basicstyle=\tiny\ttfamily,breaklines=true}
\usetikzlibrary{shapes.geometric}


\begin{document}
\begin{tikzpicture}
\node[draw,inner ysep=3pt,
      top color=blue!60!black,
      bottom color=blue,
      text=white,
      align=flush left,
      font=\tiny\ttfamily,
      text width=\textwidth] (a) {Command Window};
\node[circle,white,draw,inner sep=1.9pt] (c) at ([xshift=-3mm]a.east) {};
\node[isosceles triangle,
      white,
      fill,
      rotate=-90,
      anchor=apex,
      isosceles triangle apex angle=60,
      inner sep=0.8pt] (t) at ([yshift=0.5pt]c.south) {};

\node[
      anchor=north west,
      minimum width=\textwidth-3mm,
      align=flush left,
      font=\tiny\ttfamily,
      text width=\textwidth-3mm,
      inner sep=0
     ] (l) at ([xshift=3mm]a.south west)
    {%
\begin{lstlisting}[aboveskip=0pt,belowskip=0pt]
>> help sin
 sin    Sine of argument in radians.
    sin(X) is the sine of the elements of X.

    See also asin, sind.

    Overloaded methods:
       sdpvar/sin
       codistributed/sin
       gpuArray/sin

    Reference page in Help browser
       doc sin

>>
\end{lstlisting}%
};

\filldraw[fill=blue!10,draw=white] ([yshift=-0.3pt]a.south west) rectangle (l.south west);
\draw ([xshift=0.3pt]a.south west) rectangle ([xshift=2mm+0.7pt]l.south east);
\node[anchor=south east,inner xsep=0.5pt,inner ysep=1pt] (f) at (l.south west) {$\scriptstyle f\!x$};
\end{tikzpicture}


\end{document}

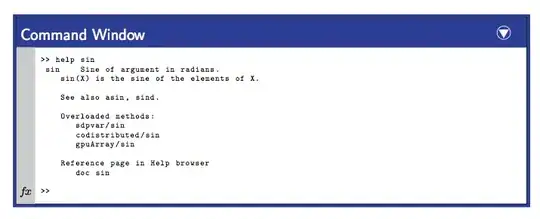

Answer 2

Here's a version using mdframed.

Revised version

I've updated the answer to include the grey bar that was missing from the earlier answer, and I've removed the dependency on an Apple font by using percusse's code for the circled triangle. Because mdframed allows breaks across pages, this solution will be slightly more flexible than a solution that puts the code in a TikZ node.

\documentclass{article}
\usepackage[dvipsnames]{xcolor}
\definecolor{DarkBlue}{rgb}{.11,.23,.60}

\usepackage[framemethod=TikZ]{mdframed}
\usetikzlibrary{calc,shapes.geometric}

\newcommand{\triangcirc}{\tikz{
\node[circle,white,draw,inner sep=3pt] (c) {};
\node[isosceles triangle,
      white,
      fill,
      rotate=-90,
      anchor=apex,
      isosceles triangle apex angle=60,
      inner sep=1.5pt] (t) at ([yshift=0.5pt]c.south) {};}}

\mdfdefinestyle{commandline}
{leftmargin=5pt, rightmargin=10pt,innerleftmargin=15pt,
 middlelinecolor=DarkBlue,
 middlelinewidth=2pt,
 backgroundcolor=white,
 frametitle={Command Window\hfill\triangcirc},
 frametitlefont={\normalfont\sffamily\color{white}\hspace{-1.25em}},
 frametitlebackgroundcolor=DarkBlue,
 singleextra={\draw[black!20,line width=12pt] node[inner sep=0pt,color=black]
      at ($(O)+(7pt,9pt)$) {$\scriptstyle f\!x$}
      ($(O)+(7pt,1pt)$) -- ($(O|-P)+(7pt,-\mdfframetitleboxtotalheight-1pt)$);}}

\newmdenv[style=commandline]{cmdline}
\usepackage{listings}
\lstset{language=Matlab,basicstyle=\tiny\ttfamily,breaklines=true}
\begin{document}
\begin{cmdline}
\begin{lstlisting}[aboveskip=0pt,belowskip=0pt]
>> help sin
 sin    Sine of argument in radians.
    sin(X) is the sine of the elements of X.

    See also asin, sind.

    Overloaded methods:
       sdpvar/sin
       codistributed/sin
       gpuArray/sin

    Reference page in Help browser
       doc sin

>>
\end{lstlisting}%
\end{cmdline}
\end{document}

---

The following code simplify the complete method by defining on environment script which results in your required output:

\documentclass{article}
\usepackage[dvipsnames]{xcolor}
\definecolor{DarkBlue}{rgb}{.11,.23,.60}

\usepackage[framemethod=TikZ]{mdframed}
\usetikzlibrary{calc,shapes.geometric}

\newcommand{\triangcirc}{\tikz{
\node[circle,white,draw,inner sep=3pt] (c) {};
\node[isosceles triangle,
      white,
      fill,
      rotate=-90,
      anchor=apex,
      isosceles triangle apex angle=60,
      inner sep=1.5pt] (t) at ([yshift=0.5pt]c.south) {};}}

\mdfdefinestyle{commandline}
{leftmargin=5pt, rightmargin=10pt,innerleftmargin=15pt,
 middlelinecolor=DarkBlue,
 middlelinewidth=2pt,
 frametitlerule=false,
 backgroundcolor=black!10!white,
 frametitle={Command Window\hfill\triangcirc},
 frametitlefont={\normalfont\sffamily\color{white}\hspace{-1.25em}},
 frametitlebackgroundcolor=DarkBlue,
 singleextra={\draw[black!20,line width=12pt]
      ($(O)+(7pt,1pt)$) -- ($(O|-P)+(7pt,-\mdfframetitleboxtotalheight)-(0,1pt)$);
      \node[inner sep=0pt,color=black]at ($(O)+(7pt,9pt)$) {$\scriptstyle f\!x$}; }
}

\usepackage{listings}
\lstnewenvironment{script} {\lstset{language=Matlab,basicstyle=\tiny\ttfamily,breaklines=true,aboveskip=0pt,belowskip=0pt}} {}
\surroundwithmdframed[style=commandline]{script}

\begin{document}
\begin{script}
>> help sin
 sin    Sine of argument in radians.
    sin(X) is the sine of the elements of X.

    See also asin, sind.

    Overloaded methods:
       sdpvar/sin
       codistributed/sin
       gpuArray/sin

    Reference page in Help browser
       doc sin

>>
\end{script}

\end{document}
