Multiple alignment without spacing

Question

What is the best way of typing an equation like this? enter image description here

(The vertical red lines indicate three different alignment axes.)

I have tried the following:

\begin{alignat*}{3}
    \phi: Z^{X \times Y} &\to (Z^Y)^X\\
                   f     &\mapsto \phi(f): X &&\to Z^Y\\
                                           x &&\mapsto \phi(f)(x): Y &&&\to Z\\
                                                                    y &&&\mapsto \phi(f)(x)(y) = f(x,y)
\end{alignat*}

But it doesn't work well.

Welcome to TeX.SX! You can have a look on our starter guide to familiarize yourself further with our format. — Leo Liu, Jun 02 '13 at 04:51
a useful direction, using alignat, is illustrated in aligning equals as well as plus signs — barbara beeton, Jun 02 '13 at 12:41

score 6 · Accepted Answer · edited Jun 09 '17 at 19:38

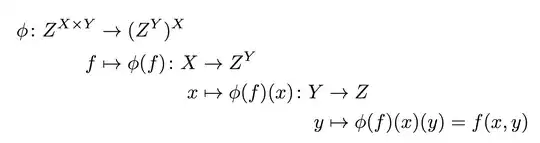

Here's with alignat and a small trick with mathtools. The codomain of the top map is too wide, so we suppress its width in order to keep the alignment.

\documentclass{article}
\usepackage{amsmath,mathtools}
\begin{document}
\begin{alignat*}{3}
\phi\colon Z^{X \times Y} &\to \mathrlap{(Z^Y)^X}\\
                    f     &\mapsto \phi(f)\colon &X &\to Z^Y\\
                          &                      &x &\mapsto \phi(f)(x)\colon &Y &\to Z\\
                          &                      &  &                         &y &\mapsto \phi(f)(x)(y) = f(x,y)
\end{alignat*}
\end{document}

enter image description here

score 3 · Answer 2 · answered Jun 02 '13 at 04:35

If a brute-force is acceptable...

\documentclass{article}

\begin{document}

\[\arraycolsep0.1667em
\begin{array}{rlll}
 \phi: Z^{X \times Y} &\to (Z^Y)^X&&\\
f &\mapsto \phi(f): X &\to Z^Y&\\
&\multicolumn{1}{r}{x} &\mapsto \phi(f)(x): Y &\to Z\\
&&\multicolumn{1}{r}{y} &\mapsto \phi(f)(x)(y) = f(x,y)
\end{array}
\]

\end{document}

enter image description here
