cleveref and appendix packages: appendix referenced as section

Question

Using this example:

\documentclass{scrartcl}
\usepackage{lipsum}
\usepackage{appendix}
\usepackage{cleveref}

\begin{document}
\section{The first section}\label{sec:1}
\lipsum[2]

\section{The second section}
\cref{sec:1} tells us something, while \cref{app:1} tells us something else!

\begin{appendices}
  \section{The first appendix}\label{app:1}
  \lipsum[2]
\end{appendices}

\end{document}

The reference \cref to the appendix section unfortunately references it as “section A”, rather than “appendix A”.

Is there any way to fix that?

section 1 tells us something, while section A tells us something else!

One solution I found is this: Create an additional \crefname and use it as an optional argument to \label.

Andrew Swann · Answer 1 · 2020-03-19T08:30:34.157

New answer

The package cleveref allows one to alias different counters to other ones, and this works locally in groups. So one solution is to add

\crefalias{section}{appendix}

just after \begin{appendices}. You can do this globally using \AtBeginEnvironment from etoolbox.

\documentclass{scrartcl}

\usepackage{lipsum} % for dummy text

\usepackage{etoolbox}
\usepackage{appendix}
\usepackage[capitalize]{cleveref}

\AtBeginEnvironment{appendices}{\crefalias{section}{appendix}}

\begin{document}

\section{The first section}
\label{sec:1}

\lipsum[2]

\section{The second section}

\Cref{sec:1} tells us something, while \cref{app:1} tells us something
else!  In \cref{app:2}, we see that this is self-contradictory.  All
is fine again in \cref{sec:3}.

\begin{appendices}
  \section{The first appendix}
  \label{app:1}
  \lipsum[2]
  \subsection{An appendix subsection}
  \label{app:2}
  \lipsum[3]
\end{appendices}

\section{The third section}
\label{sec:third-section}
\label{sec:3}

\lipsum[4]

\end{document}

Old answer

The package cleveref provides a mechanism for this. Introduce a new type appsec and set up the label name via \crefname; then in the appendices part use \crefalias to get the section type to point to the type appsec:

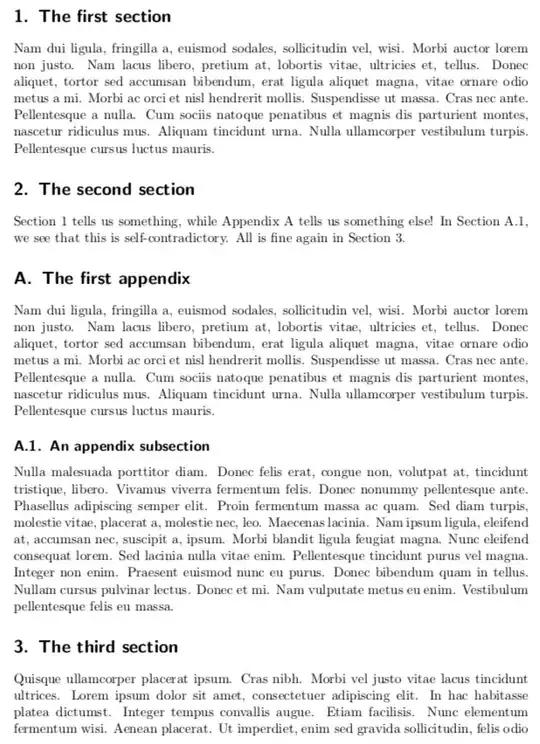

Sample output

\documentclass{scrartcl}
\usepackage{lipsum}
\usepackage{appendix}
\usepackage[capitalize]{cleveref}

\Crefname{appsec}{appendix}{appendices}

\begin{document}
\section{The first section}\label{sec:1}
\lipsum[2]

\section{The second section}
\Cref{sec:1} tells us something, while \cref{app:1} tells us something else!

\begin{appendices}
  \crefalias{section}{appsec}
  \section{The first appendix}\label{app:1}
  \lipsum[2]
\end{appendices}

\end{document}

Perhaps it should be obvious, but just to note: if you want a lowercase (or otherwise different) prefix mid-sentence, you need to define \Crefname and \crefname — OJFord, Jun 19 '17 at 13:58
It can also be helpful in some circumstances to add additional lines at the beginning of the appendices like \crefalias{subsection}{appsec}, in which case references to subsections in the appendix will have the correct label as well. — Jim Garrison, May 30 '18 at 21:35
\crefname is for defining the lowercase form of the reference name and \Crefname is for defining the uppercase form. It would be better to use \crefname{appsec}{appendix}{appendices} or \Crefname{appsec}{Appendix}{Appendices} in this example to fit with the intent of the cleveref package. The package provides the option capitalize for users who wish all references to be capitalized. — RobotRaven, Mar 18 '20 at 22:15
@RobotRaven Many thanks. I turns out only the \Crefname variant respects the class option. — Andrew Swann, Mar 19 '20 at 08:11
@OJFord Please see the new answer, which addresses this issue too. — Andrew Swann, Mar 19 '20 at 08:31

Merchako · Answer 2 · 2019-11-25T21:07:09.223

I managed it without using \cleverref's more complicated features (crefname, crefalias or appsec) by using \appendix instead. You need to place \cref underneath \appendix for \cref to work out-of-the-box. You have two approaches:

Use \appendix and not \begin{appendices}—the table of contents won't show an "Appendices" header.

\appendix
\chapter{Literacy Methodologies for Non-Dominant Languages}
{\label{a1}}
...
\cref{a1}

Use both \appendix and \begin{appendices}. Both "Appendices" and "A" will appear in the table of contents, albeit at the same visual hierarchy.

\usepackage[toc,page]{appendix}
% [page] gets you a page just to announce the appendices
...
\begin{appendices}
    \appendix
    \chapter{Literacy Methodologies for Non-Dominant Languages}
    {\label{a1}}
\end{appendices}
...
\cref{a1}

Update: Adjust the import parameters of \appendix to get the table of contents just right.

\usepackage[titletoc]{appendix}
...
\begin{appendices}
    \appendix
    \chapter{Literacy Methodologies for Non-Dominant Languages}
    {\label{a1}}
\end{appendices}
...
\cref{a1}

Either way, the text from \cref will say "Appendix A".

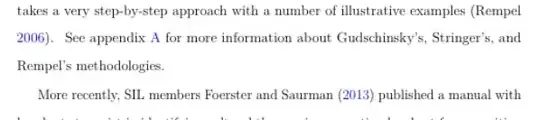

$evidence that \appendix creates "Appendix A"$
