I have written a modified wrapfig package, I was a little tired of having ugly page breaks when a wrapfig object coincides with the end of the page. It works by putting the content into a box, measures the height, and then uses the needspace package to enforce minimum space requirements, pretty simple.
Here is the code:
%-----------------------------------------------------
%Ensures no ugly page breaks by
%first measuring the minimum amount of space required
%Using a savebox.
%-----------------------------------------------------
\NeedsTeXFormat{LaTeX2e}
\ProvidesPackage{adpwrapfig}[2013/07/28 ADP's Wrapfig Class]
%Requirements.
\RequirePackage{wrapfig,calc,needspace,etoolbox,ifthen}
%Objects in this class.
\newlength{\@@wf@ht}%
\newsavebox{\@@wf@savebox}%
\newcounter{@@wf@cnt}
%Create a boolean switch, for the case when the user specifies
%the number of lines, and,
\newbool{@@wf@alwaysspace}\booltrue{@@wf@alwaysspace}
%Backup existing definitions.
\let\@wf\wrapfigure\let\@endwf\endwrapfigure
%-----------------------------------------------------
%Redefine the wrapfigure environment.
%-----------------------------------------------------
\renewenvironment{wrapfigure}[3][-1]{%
\setcounter{@@wf@cnt}{#1}\def\@inpA{#2}\def\@inpB{#3}%
%Process the box.
\begin{lrbox}{\@@wf@savebox}%
\minipage{\@inpB}%
}{ %<<<<<<BODY CONTENT
\endminipage%
\end{lrbox}%
%Determine the required height
\settoheight{\@@wf@ht}{\usebox{\@@wf@savebox}}%
%Min Required Vertical Space.
\def\@wf@ns{\Needspace{\dimexpr\@@wf@ht+\intextsep\relax}}
%Enforce the required height
\ifthenelse{\the@@wf@cnt<1}{\@wf@ns}{\ifbool{@@wf@alwaysspace}{\@wf@ns}{}}%
%Now execute the existing environment
\ifthenelse{\the@@wf@cnt>0}%
{\@wf[\the@@wf@cnt]{\@inpA}{\@inpB}} %TRUE, When Lines are Specified
{\@wf{\@inpA}{\@inpB}} %FALSE, When Not.
\usebox{\@@wf@savebox}%
\@endwf%
}
The Difference is quite clear with the following MWE:
\documentclass[a5paper]{article}
\usepackage[margin=1in]{geometry}
\usepackage[demo]{graphicx}
\usepackage{lipsum,caption}
\usepackage{wrapfig} %Standard
\usepackage{adpwrapfig} %Modified
\begin{document}
\lipsum[1-2]
\begin{wrapfigure}{l}{0.5\linewidth}
\includegraphics[width=\linewidth,height=2.95in]{demo}
\captionof{figure}{This is my caption for this use of this figure}
\end{wrapfigure}
\lipsum[1-10]
\end{document}
Which creates the following two different outputs if the package is used or not.
Standard Output (Carries paragraph wrapping over to next page)

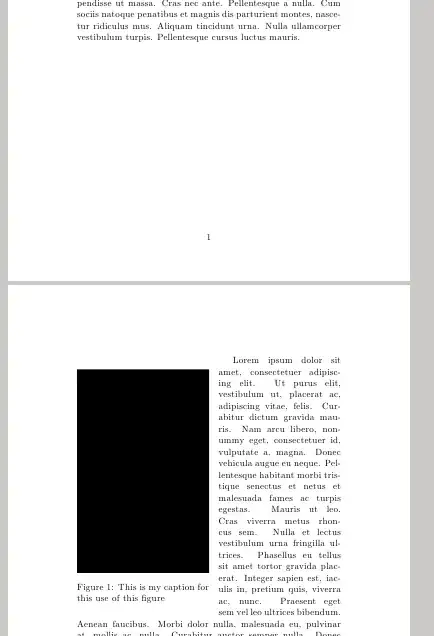

New Output: (Does not produce the error)
My question is, I would like to remove the use of minipages, in favor of a box primative, however, I cant seem to get it to work in context.
Can someone offer some suggestions?
Cheers.
UPDATE: Based on David Carlisle's Solution to my initial question, and, suggestion by Barbara Beeton, an update is as follows. In summary, A hook was patched into the needspace package to determine if a page break would follow, and in that situation, the contents get retracted by \intextsep to achieve top alignment.
%-----------------------------------------------------
%Ensures no ugly page breaks by
%first measuring the minimum amount of space required
%Using a savebox.
%-----------------------------------------------------
\NeedsTeXFormat{LaTeX2e}
\ProvidesPackage{adpwrapfig}[2013/07/28 ADP's Wrapfig Class]
%Requirements.
\RequirePackage{wrapfig}
\RequirePackage{calc,needspace,etoolbox,ifthen,caption}
%Objects in this class.
\newsavebox{\@@wf@savebox} %Box to save.
\newlength{\@@wf@ht} %Height
\newlength{\@@wf@wd} %Width
\newcounter{@@wf@cnt} %Linecount if specified
\newcommand{\@@wf@capprop}{0.95} %Caption Proportion
\newbool{@@wf@break} %For needspace page break hook
%Create a boolean switch, for the case when the user specifies
%the number of lines, and, @@wf@bre@kreq
\newbool{@@wf@alwaysspace}\booltrue{@@wf@alwaysspace}
%Backup existing definitions.
\let\@wf\wrapfigure\let\@endwf\endwrapfigure
%Patch the neespace commands.
\patchcmd{\@sneedsp@}{\break}{\booltrue{@@wf@break} \break}{}{}
\patchcmd{\@needsp@}{\break}{\booltrue{@@wf@break} \break}{}{}
%-----------------------------------------------------
%Redefine the wrapfigure environment.
%-----------------------------------------------------
\renewenvironment{wrapfigure}[3][-1]{%
\setcounter{@@wf@cnt}{#1}%
\def\@inpA{#2}%
\setlength{\@@wf@wd}{#3}
%Process the box.
\setbox\@@wf@savebox\vbox\bgroup\bgroup%
\setlength\hsize\@@wf@wd
\textwidth\hsize
\linewidth\hsize
\@parboxrestore
\@minipagerestore
\@setminipage
\captionsetup{width=\@@wf@capprop\linewidth}
}{ %<<<<<<BODY CONTENT
\par\egroup\egroup%
\@@wf@ht\ht\@@wf@savebox%
%Command to enforce the required height
\def\@ns{\Needspace{\dimexpr\@@wf@ht+\intextsep\relax}}
%Two conditions on whether to enforce
\ifthenelse{\the@@wf@cnt<1}{\@ns}{}%
\ifbool{@@wf@alwaysspace}{\@ns}{}%
%Start with not requiring pagebreak.
%needspace has been patched to set this to true if
%it intends to enforce a break.
\boolfalse{@@wf@break}
%Now execute the existing environment
\par\ifthenelse{\the@@wf@cnt>0}%
{\@wf[\the@@wf@cnt]{\@inpA}{\@@wf@wd}} %TRUE, When Lines are Specified
{\@wf{\@inpA}{\@@wf@wd}} %FALSE, When Not.
%Resolve the hook made by needspace, retracting by intxtsep
%Retrace
\ifbool{@@wf@break}{\vspace*{-\intextsep}}{}
%Execute
\usebox{\@@wf@savebox}%
%Tighten
\ifbool{@@wf@break}{\vspace*{-2\intextsep}}{\vspace*{-\intextsep}}%
\@endwf%
}
\endinput
%Tada.
