Use math font for TikZ arrow labels

Question

I am trying to make arrow labels look like they are written in math mode. This is what I have: enter image description here

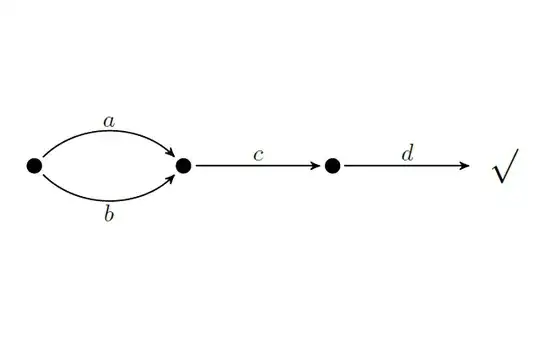

This is what I want enter image description here ,

I tried to use different fonts but without success. This is my code:

    \begin{tikzpicture}[node distance=2cm,inner sep=2pt,minimum size=0.5mm, bend angle=45]
  \tikzstyle{place} = [ circle,draw=black,fill=black,thick ]
  \tikzstyle{surd} = [circle]
  \tikzstyle{pre} = [ <-,shorten <=2pt,shorten >=2pt, >=stealth', semithick]
  \tikzstyle{every node} = [font=\normalsize\itshape]

  \node[place] (first) {};
  \node[place] (second) [right=of first] {}
    edge [pre,bend right]  node [above] {$a$} (first)
    edge [pre,bend left]  node [below] {$b$} (first);
  \node[place] (third) [right=of second] {}
    edge [pre]  node [above] {$c$} (second);
  \node[surd] (surd)  [right=of third] {\Large$\surd$}
    edge [pre] node [above] {$d$} (third);
\end{tikzpicture}

BTW: do not use tikzstyle, see Should \tikzset or \tikzstyle be used to define TikZ styles? — Claudio Fiandrino, Sep 06 '13 at 06:37

Claudio Fiandrino · Accepted Answer · 2013-09-07T12:26:03.363

With the Beamer class you may want to use:

\usefonttheme[onlymath]{serif}

to render in serif font only the math. If one does not want to type every time the $ to enter in math mode, it is possible to create a style for that:

\tikzset{math mode/.style={%
    execute at begin node=$,%
    execute at end node=$,%
  }
}

Then, by grouping all nodes in a scope:

\begin{scope}[every node/.style={math mode}]
...
\end{scope}

the style will be applied "locally".

An example with the math mode style active:

\documentclass{beamer}
\usepackage{lmodern}
\usepackage{tikz}
\usetikzlibrary{arrows,positioning}

\usefonttheme[onlymath]{serif}

\begin{document}
\begin{frame}{title}
Some text in sans serif font. Math, like:
\begin{equation}
x+y=100
\end{equation}
is rendered in serif font.
\begin{center}
    \begin{tikzpicture}[node distance=2cm,inner sep=2pt,minimum size=0.5mm, bend angle=45]
  \tikzset{place/.style={circle,draw=black,fill=black,thick}}
  \tikzset{surd/.style={circle}}
  \tikzset{pre/.style={ <-,shorten <=2pt,shorten >=2pt, >=stealth', semithick}}
  % to avoid using every time dollars for math mode
  \tikzset{math mode/.style={%
      execute at begin node=$,%
      execute at end node=$,%
    }
  }

  \node[place] (first) {};
  % using a scope to not apply the new math mode definition to all nodes
  % as it might not be the desired behaviour
  \begin{scope}[every node/.style={math mode}]
  \node[place] (second) [right=of first] {}
    edge [pre,bend right]  node [above] {a} (first)
    edge [pre,bend left]  node [below] {b} (first);
  \node[place] (third) [right=of second] {}
      edge [pre]  node [above] {c} (second);
  \node[surd] (surd)  [right=of third] {\Large\surd}
    edge [pre] node [above] {d} (third);
  \end{scope}
\end{tikzpicture}
\end{center}
\end{frame}
\end{document}

A complete example without the style math mode:

\documentclass{beamer}
\usepackage{lmodern}
\usepackage{tikz}
\usetikzlibrary{arrows,positioning}

\usefonttheme[onlymath]{serif}

\begin{document}
\begin{frame}{title}
Some text in sans serif font. Math, like:
\begin{equation}
x+y=100
\end{equation}
is rendered in serif font.
\begin{center}
    \begin{tikzpicture}[node distance=2cm,inner sep=2pt,minimum size=0.5mm, bend angle=45]
  \tikzset{place/.style={circle,draw=black,fill=black,thick}}
  \tikzset{surd/.style={circle}}
  \tikzset{pre/.style={ <-,shorten <=2pt,shorten >=2pt, >=stealth', semithick}}
  %\tikzset{every node/.append style={font=\normalsize\itshape}} %useless in this case

  \node[place] (first) {};
  \node[place] (second) [right=of first] {}
    edge [pre,bend right]  node [above] {$a$} (first)
    edge [pre,bend left]  node [below] {$b$} (first);
  \node[place] (third) [right=of second] {}
      edge [pre]  node [above] {$c$} (second);
  \node[surd] (surd)  [right=of third] {\Large$\surd$}
    edge [pre] node [above] {$d$} (third);
\end{tikzpicture}
\end{center}
\end{frame}
\end{document}

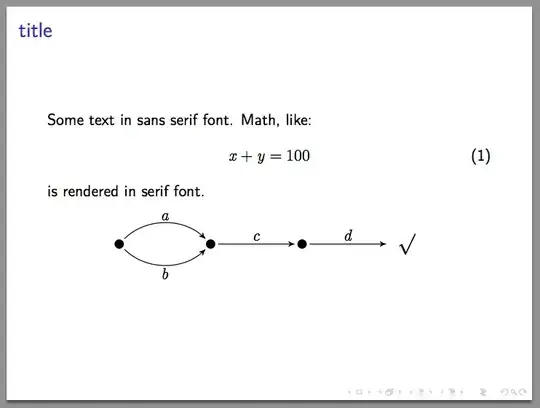

The result:

enter image description here

A note: to go in new line you don't need 220 spaces (on average) at the end of the line. — Claudio Fiandrino, Sep 06 '13 at 07:01
What about non beamer environments ? I might need to create an article from this presentation and reuse there my pictures. Is this similar? — Darek, Sep 06 '13 at 07:03
And what if I ommit $a$ and write only a ? Will it also work ? (sorry for so many questions) — Darek, Sep 06 '13 at 07:05
tikzstyle is obsolete, as per my previous comment; second: for the article you don't have any problems in copy and paste the pictures' code: they will use automatically serif font (unless you specified something different, but that's not the default behaviour). — Claudio Fiandrino, Sep 06 '13 at 07:06
so it si not possible to set a font looking like math mode for tikz and write not in math mode ? — Darek, Sep 06 '13 at 07:07
No, because math mode brings features that italic font doesn't have: spaces around the operators, for instance. — Claudio Fiandrino, Sep 06 '13 at 07:13
