Is there a way to tune ball shading in TikZ ?

Question

I want to create a Go stone in TikZ. "ball color" option in node style is almost OK.
Here is my result:

alt text

But I don't like the stones, they are "too balish". The "reflection" should be less spot-on and more ambient.

I could get such a result if I could manipulate both shading colors or shading curve. Can I do it in TikZ?

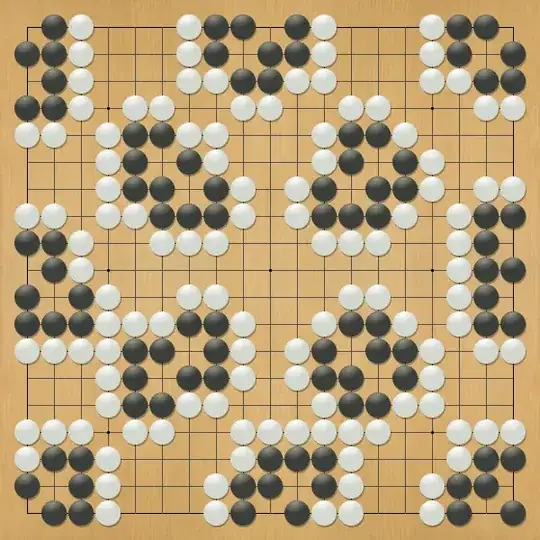

Here is what I want to achieve:

alt text

PS. Any ideas to render wood-like background w/o texture?

MAybe I should use inkscape to draw stone and use it in TikZ? Is it possible to import a drawing from inkspace to Tikz? — Łukasz Lew, Aug 18 '10 at 14:14
You can easily with the traditional \includegraphics (which I use). pgf also offers something similar for this. — Leo Liu, Aug 18 '10 at 14:21
But you have gotten pretty close to what you want just needs a bit of tweaking. — Leo Liu, Aug 18 '10 at 14:21
Will \pgfimage allow you to position stone graphics at will? — Mikael Vejdemo-Johansson, Aug 18 '10 at 14:27
The question regarding a wood-like background could be discussed in a separate question. It doesn't fit to the original question and its title. — Stefan Kottwitz, Aug 18 '10 at 14:35
Once you have drawing Go boards figured out, could you publish the code? I'd be interested in it. — Caramdir, Aug 18 '10 at 15:01
@Łukasz: I have deleted my answer because when I answered it I thought you were asking how to modify 'all' ball styles. — Leo Liu, Aug 18 '10 at 16:15

score 30 · Accepted Answer · edited Jul 16 '19 at 05:02

You can get an effect like the shading on the go stones in the picture with radial shading. I don't know how to get radial shading off-center, so some clipping is needed:

\begin{tikzpicture}
    \begin{scope}
        \fill[black] (0,0) circle (0.5);
        \clip (0,0) circle (0.5);
        \shade[outer color=black, inner color=black!30] (-0.15,0.5) circle (0.7);
    \end{scope}
\end{tikzpicture}

_{(source: caramdir.at)}

The scope is needed in order to have the clipping only applied to the shading.

I had some time to kill and the following is the result:

go board example

This is produced with the following code

\usetikzlibrary{calc,shadows}

\newenvironment{goboard}{%
    \begin{tikzpicture}[
        scale=0.5,
        stone/.style={drop shadow={shadow xshift=0.03, shadow yshift=-0.05}},
        black-stone/.style={black!80},
        black-highlight/.style={outer color=black!80, inner color=black!30},
        black-number/.style={white},
        white-stone/.style={white!70!black},
        white-highlight/.style={outer color=white!70!black, inner color=white},
        white-number/.style={black}]
        \fill[brown!80] (-1,-1) rectangle (19,19);
        \draw[black] (0,0) grid (18,18);
        \draw[thick,black] (0,0) rectangle (18,18);
        \fill (3,3) circle (0.1);
        \fill (3,9) circle (0.1);
        \fill (3,15) circle (0.1);
        \fill (9,3) circle (0.1);
        \fill (9,9) circle (0.1);
        \fill (9,15) circle (0.1);
        \fill (15,3) circle (0.1);
        \fill (15,9) circle (0.1);
        \fill (15,15) circle (0.1);
    }{%
    \end{tikzpicture}
    }

\newcommand\gostone[4][]{%
    \begin{scope}
        \fill[stone,#2-stone] (#3,#4) circle (0.45);
        \clip (#3,#4) circle (0.45);
        \shade[#2-highlight] (-0.15+#3,0.5+#4) circle (0.7);
    \end{scope}
    \node[#2-number] at (#3,#4) {\sffamily\bfseries{#1}};
}

\begin{goboard}
    \gostone[4]{black}{2}{2}
    \gostone{black}{3}{3}
    \gostone[2]{black}{2}{5}
    \gostone[3]{white}{3}{1}
    \gostone[1]{white}{5}{2}
    \gostone[5]{white}{8}{2}
\end{goboard}

The syntax for the goboard environment and \gostone command is modeled after the psgo package.

This is almost perfect! Can I create style for node that will look like that? Or do I have to create new command ? — Łukasz Lew, Aug 18 '10 at 15:42
@Łukasz: I don't know how to do this as a node, but I updated the answer with some code to automate the drawing. — Caramdir, Aug 18 '10 at 16:03

score 30 · Answer 2 · answered Feb 06 '12 at 14:21

This only concerns your additional question, e.g. how to get such a "wood like" background:

\documentclass[parskip]{scrartcl}
\usepackage[margin=15mm]{geometry}
\usepackage{tikz}
\usetikzlibrary{calc,spy}

\begin{document}

% parameters for the "wooden rectangle", chosen to be measures of a Go board
\pgfmathsetmacro{\relativefibrethickness}{0.50}
\pgfmathsetmacro{\relativefibrevariation}{0.07}
\pgfmathsetmacro{\numberoffibres}{84}
\pgfmathsetmacro{\fibresteps}{84}
\pgfmathsetmacro{\boardwidth}{20}
\pgfmathsetmacro{\boardheight}{20}
\newcommand{\backgroundcolor}{brown}
\newcommand{\fibrecolor}{brown!90!black}

\begin{tikzpicture}[scale=0.5,spy using outlines={circle, size=7cm, connect spies}]
    %auto generated wood board
    \filldraw[\backgroundcolor] (0,0) rectangle (\boardwidth,\boardheight);

    \pgfmathsetmacro{\segmentwidth}{\boardwidth/(\numberoffibres+1)}
    \pgfmathsetmacro{\segmentvariation}{\relativefibrethickness/2*\segmentwidth}

    \pgfmathsetmacro{\secondfibre}{2*\segmentwidth}
    \pgfmathsetmacro{\lastfibre}{\numberoffibres*\segmentwidth}

    \pgfmathsetmacro{\stepheight}{\boardheight/\fibresteps}

    \foreach \x in {1,2,...,\numberoffibres}
    {   \fill[\fibrecolor] ($(\x*\segmentwidth-\segmentvariation,0) + (rand*\relativefibrevariation*\relativefibrethickness,0)$)
        \foreach \y in {1,...,\fibresteps}
        {   -- ($(\x*\segmentwidth-\segmentvariation,\y*\stepheight) + (rand*\relativefibrevariation*\relativefibrethickness,0)$)
        }
        -- ($(\x*\segmentwidth+\segmentvariation,\boardheight)+ (rand*\relativefibrevariation*\relativefibrethickness,0)$)
        \foreach \y in {\fibresteps,...,0}
        {   -- ($(\x*\segmentwidth+\segmentvariation,\y*\stepheight) + (rand*\relativefibrevariation*\relativefibrethickness,0)$)
        }
        -- cycle;
    }
    \draw[thick] (0,0) rectangle (\boardwidth,\boardheight);

    % manually added stuff, only for Go board look
    \draw (1,1) grid (19,19);
    \foreach \x in {4,10,16}
    {   \foreach \y in {4,10,16}
        {   \fill (\x,\y) circle (0.1);
        }
    }
    % spy for seeing the structure
    \spy[magnification=10,yellow] on (5.3,5.8) in node at (8,-8);
\end{tikzpicture}

\end{document}

enter image description here

\filldraw[\backgroundcolor] arg, please use \colorlet or a TikZ style to define a color. — Martin Scharrer, Nov 22 '18 at 09:47

score 29 · Answer 3 · answered Aug 18 '10 at 14:33

29

You could use \pgfdeclareradialshading to modify the ball shading.

For example, insert:

\makeatletter
\pgfdeclareradialshading[tikz@ball]{ball}{\pgfqpoint{-10bp}{10bp}}{%
 color(0bp)=(tikz@ball!30!white);
 color(9bp)=(tikz@ball!75!white);
 color(18bp)=(tikz@ball!90!black);
 color(25bp)=(tikz@ball!70!black);
 color(50bp)=(black)}
\makeatother

The "reflection" will be less spotty and more ambient than with the original code:

alt text

Adjust the color values according to your needs.

answered Aug 18 '10 at 14:33

Stefan Kottwitz

231,401

1

That looks great ;) – Leo Liu Aug 18 '10 at 14:37
If I don't want to overwrite the ball shading, but declare a new one with customizable color, do you know how to do it? I found several examples with some color hard coded into them, but I don't want to define a new shading for every color. – Tom Bombadil Dec 01 '15 at 10:06

score 8 · Answer 4 · answered Sep 30 '17 at 03:56

8

For more realistic shadows use the code from @Caramdir but replace stone/.style={drop shadow={...}} by

    stone/.style={drop shadow={shadow xshift=0.03, shadow yshift=-0.05,
       fill=black, path fading={circle with fuzzy edge 15 percent}}},

answered Sep 30 '17 at 03:56

wipet

74,238
