Aligning a system of linear equations

Question

I want to figure out how I can align a system of linear equations very nicely.

At the moment I am using the following command:

\systeme{x_1=2r + s -t,x_2= r, x_3=-2s +2t, x_4=s, x_5=t}

But this gives me something ugly in staircase form, like:

Any way I could fix it so the x_i's are all at the left side, nicely underneath each other, and possibly with the equation signs also aligned?

Here is a MWE:

\documentclass[11pt,a4paper,openany]{report}
\usepackage{amssymb,amsmath,amsthm}
\usepackage[dutch]{babel}
\usepackage{mdframed}
\usepackage{systeme,mathtools}
\makeatletter
\renewcommand*\env@matrix[1][*\c@MaxMatrixCols c]{%
  \hskip -\arraycolsep
  \let\@ifnextchar\new@ifnextchar
  \array{#1}}
\makeatother
\usepackage{lipsum}
\usepackage{relsize}
\newcommand\md{\ }

\begin{document}

\systeme{x_1=2r + s -t,x_2= r, x_3=-2s +2t, x_4=s, x_5=t}

\end{document}

Answer 1

The command to use for this is \systeme*:

\documentclass[11pt,a4paper,openany]{report}
\usepackage{amsmath}
\usepackage{systeme}

\begin{document}

I want to figure out how I can align a system of linear equations very nicely.
At the moment I am using the following command:
\[

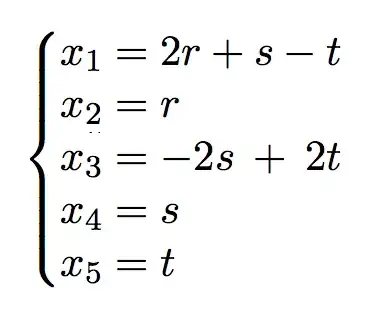

\systeme*{x_1=2r + s -t,x_2= r, x_3=-2s +2t, x_4=s, x_5=t}
\]

\end{document}

By setting the value of \syslineskipcoeff you can modify the spacing; the default value is 1.25:

\[
\syslineskipcoeff{1}
\systeme*{x_1=2r + s -t,x_2= r, x_3=-2s +2t, x_4=s, x_5=t}
\]

Answer 2

Here's a solution that uses only the array package and an array environment. In case you're curious about what's going on in the preamble of the array environment:

• The four columns that contain variables are of type r

• To get the correct spacing around the = symbols and the + and - signs, the amount of intercolumn whitespace (governed by the length parameter \arraycolsep) is first set to 0pt.

  • The = symbols are inserted automatically; the directive @{{}={}} tells LaTeX to treat = as an object of type mathrel.

  • The directives >{{}}c<{{}} tell LaTeX to center-set the column contents (which will be either +, -, or blank) and to treat them as objects of type mathbin.

\documentclass[11pt,a4paper,openany]{report}
\usepackage{array}
\begin{document}
\[
\left\{
\setlength\arraycolsep{0pt}
\begin{array}{ r @{{}={}} r  >{{}}c<{{}} r  >{{}}c<{{}}  r }
x_1 & 2r &+&  s &-&  t \\
x_2 &  r               \\
x_3 &    &-& 2s &+& 2t \\
x_4 &    & &  s        \\
x_5 &    & &    & &  t \\
\end{array}
\right.
\]
\end{document}

Answer 3

The systeme command is designed for the "matrix-like" (if you can't tell, I'm an engineer, not a mathematician) portion of the system to be on the left-hand side, not the right-hand side.

If you can accept a simple LHS->RHS swap of your input, systeme works out of the box:

\documentclass{article}
\usepackage{systeme}

\begin{document}
\systeme{2r + s -t=x_1, r=x_2, -2s +2t=x_3, s=x_4, t=x_5}
\end{document}

It is likely possible to create a new command in the spirit of \systeme{} with the aligned and unaligned sides reversed, but the code is above my head. ;-)

Answer 4

A simple hack with the aligned environment:

\documentclass{article}
\usepackage[utf8]{inputenc}
\usepackage{systeme}
\usepackage{amsmath}

\begin{document}

\[ \left\{\begin{aligned}x_1 & = \\x_2 & =\\x_3 & =\\x_4 & =\\x_5 & =\\ \end{aligned}\sysdelim. . \systeme[rst]{2r + s -t , r , -2s +2t, s, t}\right.
 \]%

\end{document}

Answer 5

Using a TABstack. In this case the "Center" of \tabbedCenterstack refers to vertical centering, the [r] refers to horizontal right alignment of each column, \stackMath processes the data in math mode, and \TABbinary inserts a {} prior to and following each cell, so as to give the + and - the proper horizontal spacing.

\documentclass[11pt,a4paper,openany]{report}
\usepackage{tabstackengine}
\stackMath
\begin{document}
\[
\left\{
\TABbinary\tabbedCenterstack[r]{
x_1 =& 2r &+&  s &-&  t \\
x_2 =&  r               \\
x_3 =&    &-& 2s &+& 2t \\
x_4 =&    & &  s        \\
x_5 =&    & &    & &  t
}\right.
\]
\end{document}
