Regular polygon: edges between vertices of odd index

Question

I want to draw a regular polygon in which there is an edge between the consecutive vertices of odd index: For instance with 8 vertices, I want a path 1 -- 3 -- 5 -- 7 -- 1. To do this with a large number of vertices, I'd like to do this automatically rather than to handwrite the full path.

Using some answers here (in particular this one), I've come up with the following solution (here with 16 vertices):

\documentclass[tikz]{standalone}

\usetikzlibrary{shapes.geometric,calc}

\begin{document}
\begin{tikzpicture}
\node (pol) [minimum size=\textwidth,regular polygon, rotate=90,regular polygon sides=8] at (0,0) {};
\foreach \n in {1, 2, ..., 8} {
    \node[anchor=\n*(360/8)] at (pol.corner \n) {\n};
}
\foreach \n [remember=\n as \lastn (initially 7)] in {1, 3, ...,  7} {
    \path[draw] (pol.corner \lastn) -- (pol.corner \n);
}
\end{tikzpicture}
\end{document}

The problem is that I get the path 3 -- 5 -- 7 -- 1 plus the edge 3 -- 7 instead of the path I wanted. It seems to me (I may well be wrong!) that \lastn is not correctly updated at the beginning of the loop.

Do you see what is going wrong? Do you have a different way to achieve the same goal?

Answer 1

Maybe an alternative for even-number-of-size polygons (odd is also possible but a little more tedious)?

\documentclass[tikz]{standalone}
\usetikzlibrary{shapes.geometric}
\begin{document}
\begin{tikzpicture}
\def\mycorner{18}
\node (pol) [minimum size=\textwidth,regular polygon,
             rotate=90,regular polygon sides=\mycorner] at (0,0) {};
\foreach \n in {1, 2, ..., \mycorner} {
    \node[anchor=\n*(360/\mycorner)] at (pol.corner \n) {\n};
}
\foreach \n [evaluate={\modn = int(Mod(\n+2,\mycorner));}] in {1,3,...,\mycorner} {
    \path[draw] (pol.corner \n) -- (pol.corner \modn);
}
\end{tikzpicture}
\end{document}

Answer 2

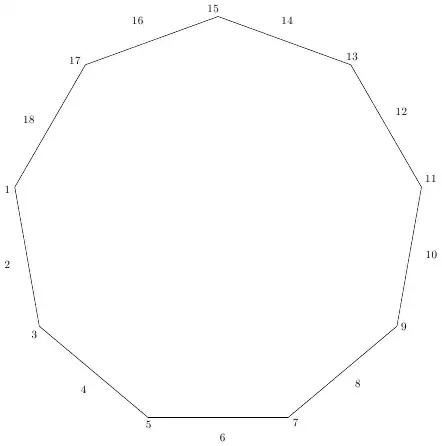

As you can see here, there's no problem with your code and TiKZ 3.0

\documentclass[tikz]{standalone}

\usetikzlibrary{shapes.geometric,calc}

\begin{document}
\begin{tikzpicture}
\node (pol) [draw=red,minimum size=\textwidth,regular polygon, rotate=90,regular polygon sides=8] at (0,0) {};
\foreach \n in {1, 2, ..., 8} {
    \node[anchor=\n*(360/8)] at (pol.corner \n) {\n};
}
\foreach \n [remember=\n as \lastn (initially 7)] in {1, 3, ...,  7} {
    \path[draw] (pol.corner \lastn) -- (pol.corner \n);
}

\begin{scope}[yshift=13cm]
\node (pol) [draw=red,minimum size=\textwidth,regular polygon, rotate=90,regular polygon sides=18] at (0,0) {};
\foreach \n in {1, 2, ..., 18} {
    \node[anchor=\n*(360/18)] at (pol.corner \n) {\n};
}
\foreach \n [remember=\n as \lastn (initially 17)] in {1, 3, ...,  17} {
    \path[draw] (pol.corner \lastn) -- (pol.corner \n);
}
\end{scope}
\end{tikzpicture}
\end{document}

Answer 3

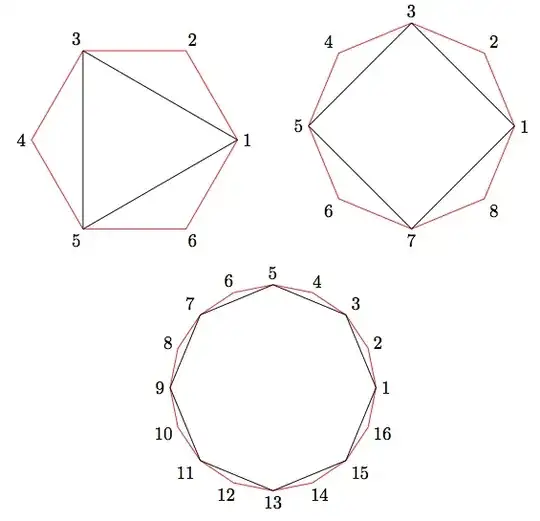

Done with MetaPost, inserted in a LuaLaTeX program. In the following code the odd_subpolygon takes care of all the job, with two parameters to be adjusted at will: the number n of sides of the main regular polygon and its radius r (in centimeters). As examples, the following code applies this macro thrice, respectively with n=6, n=8 and n=16.

\documentclass{article}
\usepackage{luamplib}
  \mplibsetformat{metafun}
  \mplibtextextlabel{enable}
  \everymplib{verbatimtex \leavevmode etex;
    % Macro producing a unit regular polygon
    vardef unit_regpoly(expr n) =
      save angl; angl := 360/n; right for i = 1 upto n-1: -- dir(i*angl) endfor -- cycle
    enddef;
    % Macro drawing a n-sided regular polygon of radius r and its subpolygon
    vardef odd_subpolygon(expr n, r) =
      clearxy; save polygon; path polygon;
      polygon = unit_regpoly(n) scaled r; draw polygon withcolor red;
      % polygon and labels
      for i = 1 upto n:
        z[i] = point i-1 of polygon; freelabel(decimal i, z[i], origin);
      endfor;
      % Subpolygon
      draw z1 for i = 3 step 2 until n: -- z[i] endfor -- cycle;
    enddef;
    r = 2cm; % radius parameter
    beginfig(0);}
  \everyendmplib{endfig;}
\begin{document} % Three examples, with n = 5, 8 and 16 respectively
\begin{center}
  \begin{mplibcode} odd_subpolygon(6, r); \end{mplibcode}
  \qquad
  \begin{mplibcode} odd_subpolygon(8, r); \end{mplibcode}
  \par\bigskip
  \begin{mplibcode} odd_subpolygon(16, r); \end{mplibcode}
\end{center}
\end{document}

Answer 4

A PSTricks solution using the pst-poly package:

\documentclass{article}

\usepackage{multido}
\usepackage{pst-poly}
\usepackage{xfp}

\newcommand*\hori[2]{\fpeval{#1+#2+0.05}}
\newcommand*\verti[2]{\fpeval{#1+#2+0.1}}

\def\polygon[#1]#2#3{%
\begin{pspicture}(-\hori{#1}{#2},-\verti{#1}{#2})(\hori{#1}{#2},\verti{#1}{#2})
  \rput(0,0){\PstPolygon[unit = #2, PolyNbSides = #3]}
  \rput(0,0){\PstPolygon[unit = #2, PolyNbSides = \fpeval{2*#3}, linecolor = red]}
  \multido{\i = 1+1}{\fpeval{2*#3}}{%
    \rput(\fpeval{(#1+#2)*cos(pi/#3*(\i-1))},\fpeval{(#1+#2)*sin(pi/#3*(\i-1))}){$\i$}}
\end{pspicture}}

\begin{document}

\polygon[0.25]{2}{8}

\end{document}

The figure is drawn using the general marco

\polygon[distance between outer polygon and numbers]
        {<radius of the circumcircle>}
        {<number of sides of the inner polygon>}
