Chapter styles catalog

Question

There are many questions in this forum regarding how to produce one or another chapter/section format. However, I can't find a comprehensive catalog of styles (examples with code), something like the titlepages document of Peter Wilson. I am specially interested in book design. Of course, it will depend a great deal on the document class, but the idea is to have some reference (and source of inspiration, if you like).

You mean something like this: Title pages, Chapters, Sections — Werner, Feb 13 '15 at 19:40

score 5 · Accepted Answer · edited Apr 13 '17 at 12:35

Vincent Zoonekynd has accumulated a set of these for Title pages, Chapters and Sections. The don't utilize any packages, so the code is visible for use and change as needed.

Here is one sample for \maketitle:

enter image description here

\documentclass{report}
\usepackage{graphicx}
\usepackage[utf8]{inputenc}
\makeatletter
\def\thickhrulefill{\leavevmode \leaders \hrule height 1pt\hfill \kern \z@}
\renewcommand{\maketitle}{\begin{titlepage}%
    \let\footnotesize\small
    \let\footnoterule\relax
    \parindent \z@
    \reset@font
    \null
    \vskip 10\p@
    \hbox{\mbox{%
        \hspace{4pt}%
        \fbox{\includegraphics[width=3em]{tiger}}%
        \hspace{4pt}
        }%
      \vrule depth 0.9\textheight%
      \mbox{\hspace{2em}}
      \vtop{% %%%%%%%%%%%%%%%%%%
        \vskip 40\p@
        \begin{flushleft}
          \Large \@author \par
        \end{flushleft}
        \vskip 80\p@
        \begin{flushleft}
          \huge \bfseries \@title \par
        \end{flushleft}
        \vfil
        }}
    \null
  \end{titlepage}%
  \setcounter{footnote}{0}%
}

\makeatother
\author{Isidore Ducasse, Comte de Lautréamont}
\author{Lautréamont}
\title{Les Chants de Maldoror}
\date{1874}
\begin{document}
\maketitle
\end{document}

Here is one sample for \chapters that modifies \@makechapterhead and \@makeschapterhead in the usual way:

enter image description here

\documentclass{report}
\makeatletter
\def\thickhrulefill{\leavevmode \leaders \hrule height 1ex \hfill \kern \z@}
\def\@makechapterhead#1{%
  %\vspace*{50\p@}%
  \vspace*{10\p@}%
  {\parindent \z@ \centering \reset@font
        \thickhrulefill\quad
        \scshape \@chapapp{} \thechapter
        \quad \thickhrulefill
        \par\nobreak
        \vspace*{10\p@}%
        \interlinepenalty\@M
        \hrule
        \vspace*{10\p@}%
        \Huge \bfseries #1\par\nobreak
        \par
        \vspace*{10\p@}%
        \hrule
    %\vskip 40\p@
    \vskip 100\p@
  }}
\def\@makeschapterhead#1{%
  %\vspace*{50\p@}%
  \vspace*{10\p@}%
  {\parindent \z@ \centering \reset@font
        \thickhrulefill
        \par\nobreak
        \vspace*{10\p@}%
        \interlinepenalty\@M
        \hrule
        \vspace*{10\p@}%
        \Huge \bfseries #1\par\nobreak
        \par
        \vspace*{10\p@}%
        \hrule
    %\vskip 40\p@
    \vskip 100\p@
  }}
\begin{document}
\chapter{Introduction}
\end{document}

Here is another for \sections:

enter image description here

\documentclass{article}
\usepackage{lettrine,lipsum}
\def\LettrineFontHook{\bfseries\sffamily\selectfont}
\makeatletter
\def\section{\@ifstar\unnumberedsection\numberedsection}
\def\numberedsection{\@ifnextchar[%]
  \numberedsectionwithtwoarguments\numberedsectionwithoneargument}
\def\unnumberedsection{\@ifnextchar[%]
  \unnumberedsectionwithtwoarguments\unnumberedsectionwithoneargument}
\def\numberedsectionwithoneargument#1{\numberedsectionwithtwoarguments[#1]{#1}}
\def\unnumberedsectionwithoneargument#1{\unnumberedsectionwithtwoarguments[#1]{#1}}
\def\numberedsectionwithtwoarguments[#1]#2{%
  \ifhmode\par\fi
  \removelastskip
  \vskip 3ex\goodbreak
  \refstepcounter{section}%
  \lettrine[lines=2,slope=0pt,nindent=0pt]{{\thesection\hspace*{1mm}}}{}%
  \begingroup \bfseries #2.\  \endgroup
  \addcontentsline{toc}{section}{%
    \protect\numberline{\thesection}%
    #1}%
  }
\def\unnumberedsectionwithtwoarguments[#1]#2{%
  \ifhmode\par\fi
  \removelastskip
  \vskip 3ex\goodbreak
%  \refstepcounter{section}%
  \noindent
  \leavevmode
  \begingroup
  \bfseries
%  \thesection\
  #2.\quad
  \endgroup
  \addcontentsline{toc}{section}{%
%    \protect\numberline{\thesection}%
    #1}%
  }
\makeatother
\pagestyle{empty}
\begin{document}
\lipsum[2]
\section*{Introduction}
\lipsum[2]
\section{Suite}
\lipsum[2]
\section{Suite}
\lipsum[2]
\section{Fin}
\lipsum[2]
%\tableofcontents
\end{document}

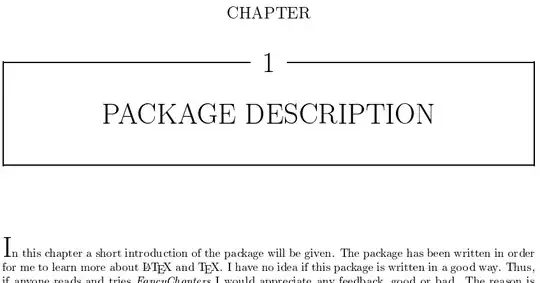

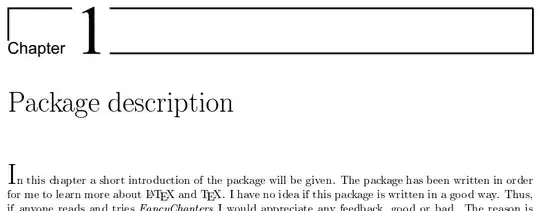

Specific to chapters, the memoir document class also provides its own set of chapter styles. Appendix B Showcases of the memoir documentation highlights some of the styles:
