Centering in dcases environment

Question

How would I go about centering the zero within the column for the following dcases MWE:

\documentclass{article}
\usepackage{mathtools}
\begin{document}
\begin{equation}
    T  =
\begin{dcases}
    0 &, \text{ if A, or} \\
    \frac{1.0}{1.0 + X} &, \text{ if B, or} \\
    \frac{X}{1.0 + X} &, \text{ if C}
\end{dcases}
\end{equation}
\end{document}

i.e. instead of the produced ,

I want it to look like this

I have found previous posts describing centering in a cases environment, but I haven't been able to get them to work in dcases

score 12 · Accepted Answer · answered Jun 26 '15 at 17:57

I wouldn't do it, but if you really want to, you have to fix the wrong definition of dcases made in mathtools:

\documentclass{article}
\usepackage{mathtools}

\MHInternalSyntaxOn
\renewcommand{\dcases}
 {
  \MT_start_cases:nnnn
    {\quad}
    {$\m@th\displaystyle##$\hfil}
    {$\m@th\displaystyle##$\hfil}
    {\lbrace}
 }
\MHInternalSyntaxOff

\begin{document}
\begin{equation}
    T  =
\begin{dcases}
    \hfil 0 & \text{, if A, or} \\
    \frac{1.0}{1.0 + X} &\text{, if B, or} \\
    \frac{X}{1.0 + X} &\text{, if C}
\end{dcases}
\end{equation}
\end{document}

The original definition has \displaystyle{##} which is simply wrong.

I'd avoid the commas hanging from nowhere too.

enter image description here

score 7 · Answer 2 · answered Jun 26 '15 at 18:01

The low level \omit helps. It removes the original format of the cell. Then the cell is centered manually by adding \hfil on both sides. Also the math mode needs to be set. Also dcases uses \displaystyle, but that does not matter for a simple digit.

\documentclass{article}
\usepackage{mathtools}
\begin{document}
\begin{equation}
    T  =
\begin{dcases}
    \omit\hfil$0$\hfil &, \; \text{ if A, or} \\
    \frac{1.0}{1.0 + X} &, \; \text{ if B, or} \\
    \frac{X}{1.0 + X} &, \; \text{ if C}
\end{dcases}
\end{equation}
\end{document}

worked like a charm for my use, even if @egreg's is more general — arghdos, Jun 26 '15 at 18:16

score 5 · Answer 3 · answered Jun 26 '15 at 18:19

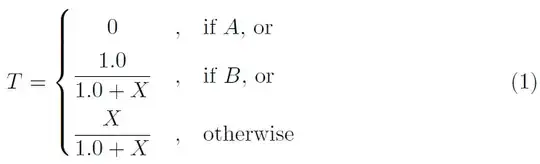

Of course, an array can also help in adjusting your horizontal alignment if the defaults don't suit your needs:

enter image description here

\documentclass{article}
\usepackage{amsmath,colortbl}
\setlength{\minrowclearance}{5pt}
\begin{document}
\begin{equation}
  T =
  \left\{\begin{array}{@{}c@{\quad,\quad}l}
              0         & \text{if $A$, or} \\
    \dfrac{1.0}{1.0 + X} & \text{if $B$, or} \\
     \dfrac{X}{1.0 + X}  & \text{otherwise}
  \end{array}\right.
\end{equation}
\end{document}
