In a question I asked before, I implemented method 2 by feculededentier. However, now I am facing difficulty in referring to different examples in this case. For example, what should be the Latex code for "as shown in Example 1.2"?

QMC
  • 473

1 Answers1

5

You have to slightly change the definition. Make it 2 arguments with first one as optional:

\newtcolorbox[auto counter, number within=chapter, number freestyle={\noexpand\thechapter.\noexpand\arabic{\tcbcounter}}]{myexample}[2][]{%
    enhanced,
    breakable,
    fonttitle=\bfseries,
    title=Example~\thetcbcounter: #2,
    #1
}

And then use the label=<name> key like

\begin{myexample}[label=second]{Second example}

Now you can use Example~\ref{second} to refer to these boxes.

Full example (taken and modified from the answer linked in the question)

\documentclass{book}
\usepackage{tcolorbox}
    \tcbuselibrary{skins,breakable}
\usepackage{lipsum}

\newtcolorbox[auto counter, number within=chapter, number freestyle={\noexpand\thechapter.\noexpand\arabic{\tcbcounter}}]{myexample}[2][]{% enhanced, breakable, fonttitle=\bfseries, title=Example~\thetcbcounter: #2, #1 }

\begin{document}

\chapter{First chapter}

\begin{myexample}[label=first]{First example} \lipsum[4] \end{myexample}

\begin{myexample}[label=second]{Second example} \lipsum[4] \end{myexample}

\chapter{Second chapter}

\begin{myexample}[label=third]{Third example} \lipsum[4] \end{myexample}

From Example~\ref{second} we get some idea.

\end{document}

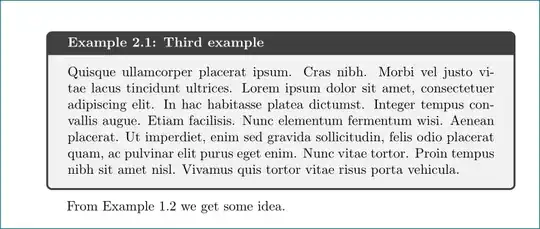

enter image description here

cleveref version:

You can load cleveref package and use crefname in the options to reduce typing.

\documentclass{book}
\usepackage{cleveref}
\usepackage{tcolorbox}
    \tcbuselibrary{skins,breakable}
\usepackage{lipsum}

\newtcolorbox[auto counter, number within=chapter, crefname={example}{examples}, Crefname={Example}{Examples}, number freestyle={\noexpand\thechapter.\noexpand\arabic{\tcbcounter}}] {myexample}[2][]{% enhanced, breakable, fonttitle=\bfseries, title=Example~\thetcbcounter: #2,
#1 }

\begin{document}

\chapter{First chapter}

\begin{myexample}[label=first]{First example} \lipsum[4] \end{myexample}

\begin{myexample}[label=second]{Second example} \lipsum[4] \end{myexample}

\chapter{Second chapter}

\begin{myexample}[label=third]{Third example} \lipsum[4] \end{myexample}

\Cref{second} gives us some idea as seen from \cref{first}.

\end{document}

  • Not working for me. Adding #2, #1 creates the problem. The error is missing number, treated as zero. – QMC Aug 28 '15 at 06:02
  • @QasimChaudhari Are you compiling the code as such without modifying? If you still get the error, please try updating your tcolorbox package. –  Aug 28 '15 at 06:07
  • Harish, it worked very well now. Thanks! Actually I had a \vspace{2mm} immediately after starting the box, and I had headings with square brackets [ ] as answered in my previous question. I have changed these two things (put a line break after starting the box, and use { } for headings) to solve the problem. – QMC Aug 28 '15 at 07:14
