I'm particularly interested in magnetic and electric field lines such as showed in this picture (from http://www.grasshopper3d.com/forum/topics/creating-a-3d-field):

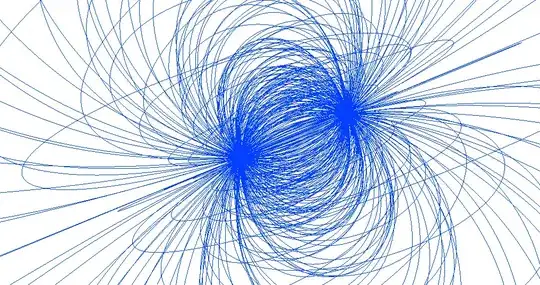

Magnetic dipole field lines.

Leonardo Castro
  • 1,280
  • 1
    You may take a look at pst electric field package. Documentation at http://get-software.net/graphics/pstricks/contrib/pst-electricfield/pst-electricfield-docEN.pdf – PMC1234 Jan 20 '16 at 20:20
  • 1
    @PMC1234 I've used pst-electrifield a lot since you suggested it. Thank you! As my question is about drawing 3D lines, pst-electricfield doesn't fulfill my expectations despite being very useful. I've just found a dipolar magnetic field example (http://www.texample.net/tikz/examples/dipolar-magnetic-field/). If you are interested, I would accept an answer from you citing both pst-electricfield and that code example, as well as additional stuff if you have more to say. If you (or somebody else with more information) are not interested, I'm going to answer my own question. – Leonardo Castro Feb 08 '16 at 16:43
  • I don't particularly enjoy answering my own questions, so I'm going to wait for more answers a little longer before doing so. – Leonardo Castro Feb 08 '16 at 16:45
  • 1
    @LeonardoCastro As long as an answer is given, everything is fine. – projetmbc Nov 21 '22 at 10:55

1 Answers1

0

There is such a template by Cyril Langlois on this page:

Example: Dipolar magnetic field

Leonardo Castro
  • 1,280
