Is there a way to make image/Table appear on hovering mouse on another image in the pdf?

Question

I am trying to make an image or a table appear on mouse hover (mouseover) over specific parts of another image like an info-graphic. Can someone tell me a package and syntax to achieve this? The constraint is that the output should be in pdf.

If there is a way easier way in any other program/format let me know too.

Answer 1

Complete example, using the \tooltip macro from this post (go there for further information about its usage and PDF reader compatibility):

\documentclass[12pt]{scrbook}
\usepackage{mwe} %example images
\usepackage{tikz} %for building a graph

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%
% tooltips with LaTeX v. 2017/11/28
%
% \tooltip[*[*[*[*]]]][<link colour>]{<link text>}[<tip box colour>]{<tip text>}
%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%
%   \tooltip     --> draggable tip, visible on mouse-over, hidden on mouse-out
%
%   \tooltip*    --> draggable tip, toggle visiblity on mouse-over
%
%   \tooltip**   --> NON-draggable tip, visible on mouse-over, hidden on mouse-out
%
%   \tooltip***  --> NON-draggable tip, toggle visiblity on mouse-over
%
%   \tooltip**** --> NON-draggable tip, toggle visiblity on mouse-click (Evince!)
%
% Default link colour can be set with
%
%   \usepackage[linkcolor=<colour>]{hyperref}
%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\usepackage{pdfbase}[2017/03/16]
\usepackage{xparse,ocgbase}
\usepackage{xcolor,calc}
\usepackage{tikzpagenodes}
\usetikzlibrary{calc}

\ExplSyntaxOn
\let\tpPdfLink\pbs_pdflink:nn
\let\tpPdfAnnot\pbs_pdfannot:nnnn\let\tpPdfLastAnn\pbs_pdflastann:
\let\tpAppendToFields\pbs_appendtofields:n
\def\tpPdfXform{\pbs_pdfxform:nnnnn{1}{1}{}{}}
\let\tpPdfLastXform\pbs_pdflastxform:
\ExplSyntaxOff

\makeatletter
\NewDocumentCommand{\tooltip}{%
  ssssO{\ifdefined\@linkcolor\@linkcolor\else blue\fi}mO{yellow!20}m%
}{{%
  \leavevmode%
  \IfBooleanT{#2}{%
    %for variants with two and more stars, put tip box on a PDF Layer (OCG)
    \ocgbase@new@ocg{tipOCG.\thetcnt}{%
      /Print<</PrintState/OFF>>/Export<</ExportState/OFF>>%
    }{false}%
    \xdef\tpTipOcg{\ocgbase@last@ocg}%
    %prevent simultaneous visibility of multiple non-draggable tooltips
    \ocgbase@add@ocg@to@radiobtn@grp{tool@tips}{\ocgbase@last@ocg}%
  }%
  \tpPdfLink{%
    \IfBooleanTF{#4}{%
      /Subtype/Link/Border[0 0 0]/A <</S/SetOCGState/State [/Toggle \tpTipOcg]>>
    }{%
      /Subtype/Screen%
      /AA<<%
        \IfBooleanTF{#3}{%
          /E<</S/SetOCGState/State [/Toggle \tpTipOcg]>>%
        }{%
          \IfBooleanTF{#2}{%
            /E<</S/SetOCGState/State [/ON \tpTipOcg]>>%
            /X<</S/SetOCGState/State [/OFF \tpTipOcg]>>%
          }{
            \IfBooleanTF{#1}{%
              /E<</S/JavaScript/JS(%
                var fd=this.getField('tip.\thetcnt');%
                if(typeof(click\thetcnt)=='undefined'){%
                  var click\thetcnt=false;%
                  var fdor\thetcnt=fd.rect;var dragging\thetcnt=false;%
                }%
                if(fd.display==display.hidden){%
                  fd.delay=true;fd.display=display.visible;fd.delay=false;%
                }else{%
                  if(!click\thetcnt&&!dragging\thetcnt){fd.display=display.hidden;}%
                  if(!dragging\thetcnt){click\thetcnt=false;}%
                }%
                this.dirty=false;%
              )>>%
            }{%
              /E<</S/JavaScript/JS(%
                var fd=this.getField('tip.\thetcnt');%
                if(typeof(click\thetcnt)=='undefined'){%
                  var click\thetcnt=false;%
                  var fdor\thetcnt=fd.rect;var dragging\thetcnt=false;%
                }%
                if(fd.display==display.hidden){%
                  fd.delay=true;fd.display=display.visible;fd.delay=false;%
                }%
               this.dirty=false;%
              )>>%
              /X<</S/JavaScript/JS(%
                if(!click\thetcnt&&!dragging\thetcnt){fd.display=display.hidden;}%
                if(!dragging\thetcnt){click\thetcnt=false;}%
                this.dirty=false;%
              )>>%
            }%
            /U<</S/JavaScript/JS(click\thetcnt=true;this.dirty=false;)>>%
            /PC<</S/JavaScript/JS (%
              var fd=this.getField('tip.\thetcnt');%
              try{fd.rect=fdor\thetcnt;}catch(e){}%
              fd.display=display.hidden;this.dirty=false;%
            )>>%
            /PO<</S/JavaScript/JS(this.dirty=false;)>>%
          }%
        }%
      >>%
    }%
  }{{\color{#5}#6}}%
  \sbox\tiptext{%
    \IfBooleanT{#2}{%
      \ocgbase@oc@bdc{\tpTipOcg}\ocgbase@open@stack@push{\tpTipOcg}}%
    \fcolorbox{black}{#7}{#8}%
    \IfBooleanT{#2}{\ocgbase@oc@emc\ocgbase@open@stack@pop\tpNull}%
  }%
  \edef\twd{\the\wd\tiptext}%
  \edef\tht{\the\ht\tiptext}%
  \edef\tdp{\the\dp\tiptext}%
  \measureremainder{\whatsleft}\tipshift=0pt%
  \ifdim\whatsleft<\twd\setlength\tipshift{\whatsleft-\twd}\fi%
  \IfBooleanF{#2}{\tpPdfXform{\tiptext}}%
  \raisebox{\heightof{#6}+\tdp}[0pt][0pt]{\makebox[0pt][l]{\hspace{\tipshift}%
    \IfBooleanTF{#2}{\usebox{\tiptext}}{%
      \tpPdfAnnot{\twd}{\tht}{\tdp}{%
        /Subtype/Widget/FT/Btn/T (tip.\thetcnt)%
        /AP<</N \tpPdfLastXform>>%
        /MK<</TP 1/I \tpPdfLastXform/IF<</S/A/FB true/A [0.0 0.0]>>>>%
        /Ff 65536/F 3%
        /AA <<%
          /U <<%
            /S/JavaScript/JS(%
              var fd=event.target;%
              var mX=this.mouseX;var mY=this.mouseY;%
              var drag=function(){%
                var nX=this.mouseX;var nY=this.mouseY;%
                var dX=nX-mX;var dY=nY-mY;%
                var fdr=fd.rect;%
                fdr[0]+=dX;fdr[1]+=dY;fdr[2]+=dX;fdr[3]+=dY;%
                fd.rect=fdr;mX=nX;mY=nY;%
              };%
              if(!dragging\thetcnt){%
                dragging\thetcnt=true;Int=app.setInterval("drag()",1);%
              }%
              else{app.clearInterval(Int);dragging\thetcnt=false;}%
              this.dirty=false;%
            )%
          >>%
        >>%
      }%
      \tpAppendToFields{\tpPdfLastAnn}%
    }%
  }}%
  \stepcounter{tcnt}%
}}
\makeatother
\newsavebox\tiptext\newcounter{tcnt}
\newlength{\whatsleft}\newlength{\tipshift}
\newcommand{\measureremainder}[1]{%
  \begin{tikzpicture}[overlay,remember picture]
    \path let \p0 = (0,0), \p1 = (current page.east) in
      [/utils/exec={\pgfmathsetlength#1{\x1-\x0}\global#1=#1}];
  \end{tikzpicture}%
}
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

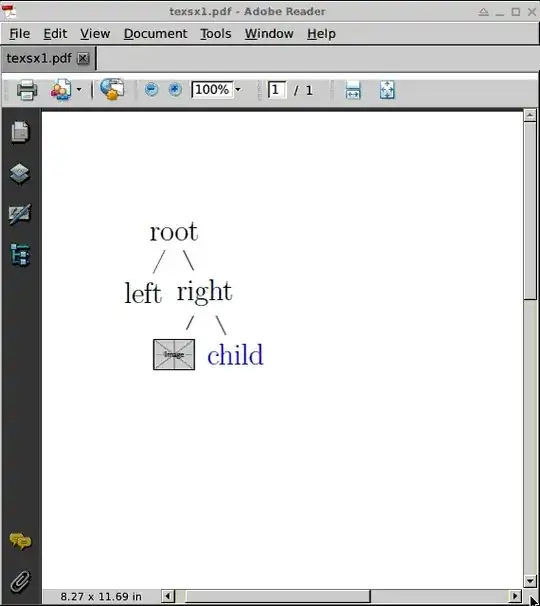

\begin{document}\LARGE

    \begin{tikzpicture}
    \node {root}
    child {node {left}}
    child {node {right}
      child {node {\tooltip{\includegraphics[width=1cm]{example-image}}{%
      \begin{tabular}{c|ccc}
         & A & B & C\\\hline
        1 &&&\\
        2 &&&\\
        3 &&&\\\hline
      \end{tabular}%
    }}}
    child {node {\tooltip{child}{\includegraphics[width=1in]{example-image-a}}}}
    };
    \end{tikzpicture}

\end{document}
