section title is printed out over section number (both TOC and minitoc)

Question

I want to change the chaptername to something like Test Chapter, and Section to Test Section. Problem is, in the Table of Contents, the section title My first section is printed out over the Test Section 1. The problem also occurs on minitoc. Following is the example:

\documentclass[bibliography=totoc,headings=big,captions=tableheading,chapterprefix=true,fontsize=13pt]{scrreprt}
\usepackage[left=1in,right=2cm,top=1in,bottom=1in]{geometry}
\usepackage{xcolor}
\usepackage{graphicx}
\usepackage{minitoc}
\usepackage{lmodern}
\usepackage[pdftex,bookmarks=true]{hyperref}
\usepackage[utf8]{inputenc}
\usepackage[english]{babel}
% ================================================================================
% Table of Contents with Chapter
% http://tex.stackexchange.com/questions/39153/table-of-contents-with-chapter
\usepackage{titletoc}% http://ctan.org/pkg/titletoc
\titlecontents*{chapter}% <section-type>
  [0pt]% <left>
  {}% <above-code>
  {\bfseries\chaptername\ \thecontentslabel\quad}% <numbered-entry-format>
  {}% <numberless-entry-format>
  {\bfseries\hfill\contentspage}% <filler-page-format>
% ================================================================================
\renewcommand{\chaptername}{Test Chapter}
\renewcommand\thesection{Test Section~\arabic{section}}

\setlength\parindent{0pt}

\begin{document}
\dominitoc
% ================================================================================
% For bigger heading
% Taken from http://tex.stackexchange.com/questions/159869/koma-script-scrreprt-chapter-heading-size-customisation
\addtokomafont{chapterprefix}{\raggedleft}
\addtokomafont{chapter}{\fontsize{30}{38}\selectfont}
\addtokomafont{section}{\huge}
\addtokomafont{subsection}{\Large}
\addtokomafont{subsubsection}{\large}
\renewcommand*{\chapterformat}{%
\mbox{\scalebox{1.5}{\chapappifchapterprefix{\nobreakspace}}%
\scalebox{4}{\color{gray}\thechapter\autodot}\enskip}}
% ================================================================================
\phantomsection
\pdfbookmark[0]{\contentsname}{pdf:toc}
\tableofcontents                % Inhaltsverzeichnis einfügen
\clearpage
% ================================================================================
\chapter{My first chapter}
\minitoc
\section{My first section}
\section{My very long long long long long long long long long long long long long long long long long long long long section title}
\end{document}

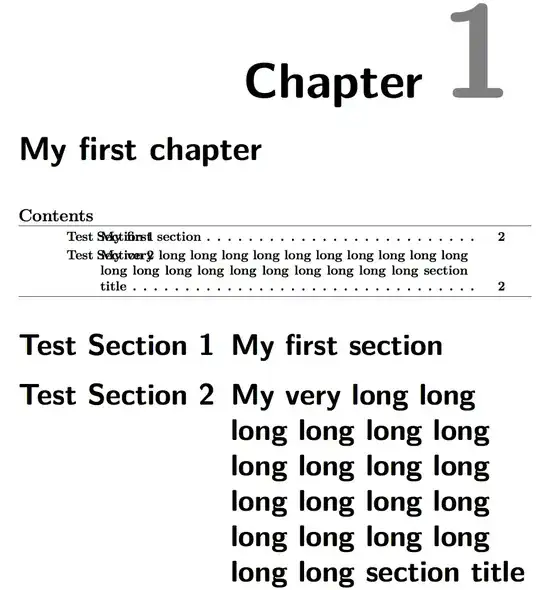

Output here:

somewhat different "bias", but the same problem: Roman numerals become “too wide” in table of contents — barbara beeton, Mar 19 '16 at 02:15
tocstyle with KOMAlike does not affect minitoc, although the TOC looks ok now. — scmg, Mar 19 '16 at 02:26
however, seems tocstyle does not work with titletoc as well, then how to make it show Test Chapter before My first chapter? — scmg, Mar 19 '16 at 02:46
you want "test chapter" and "test section" in text body too or only in table of contents? — touhami, Mar 19 '16 at 19:54
i want both, since i'm making a collection of a series of short books, which contain their own chapters and sections, so the Test Chapter would be like Season 1, Season 2, and Test Section would be like Ep 1, Ep2, etc. — scmg, Mar 19 '16 at 20:12

score 1 · Accepted Answer · edited Apr 13 '17 at 12:35

Ok, seems I found the answer, using the not-accepted answer of this question. The code is changed to:

\documentclass[bibliography=totoc,headings=big,captions=tableheading,chapterprefix=true,fontsize=13pt]{scrreprt}
\usepackage[left=1in,right=2cm,top=1in,bottom=1in]{geometry}
\usepackage{xcolor}
\usepackage{graphicx}
\usepackage{minitoc}
\usepackage{lmodern}
\usepackage[pdftex,bookmarks=true]{hyperref}
\usepackage[utf8]{inputenc}
\usepackage[english]{babel}


%% ================================================================================
%% Table of Contents with Chapter
%% https://tex.stackexchange.com/questions/39153/table-of-contents-with-chapter
%\usepackage{titletoc}% http://ctan.org/pkg/titletoc
%\titlecontents*{chapter}% <section-type>
%  [0pt]% <left>
%  {}% <above-code>
%  {\bfseries\chaptername\ \thecontentslabel\quad}% <numbered-entry-format>
%  {}% <numberless-entry-format>
%  {\bfseries\hfill\contentspage}% <filler-page-format>
%% ================================================================================
\renewcommand{\chaptername}{Test Chapter}
\renewcommand\thesection{Test Section~\arabic{section}}

% ================================================================================
% THAT PART MAKE IT DONE
\usepackage{tocloft,calc}
\renewcommand{\cftchappresnum}{\chaptername~}
\AtBeginDocument{\addtolength\cftchapnumwidth{\widthof{\chaptername}}}
\AtBeginDocument{\addtolength\cftsecnumwidth{\widthof{Test Section}}}
% ================================================================================

\setlength\parindent{0pt}

\begin{document}
\dominitoc
% ================================================================================
% For bigger heading
% Taken from https://tex.stackexchange.com/questions/159869/koma-script-scrreprt-chapter-heading-size-customisation
\addtokomafont{chapterprefix}{\raggedleft}
\addtokomafont{chapter}{\fontsize{30}{38}\selectfont}
\addtokomafont{section}{\huge}
\addtokomafont{subsection}{\Large}
\addtokomafont{subsubsection}{\large}
\renewcommand*{\chapterformat}{%
\mbox{\scalebox{1.5}{\chapappifchapterprefix{\nobreakspace}}%
\scalebox{4}{\color{gray}\thechapter\autodot}\enskip}}
% ================================================================================
\phantomsection
\pdfbookmark[0]{\contentsname}{pdf:toc}
\tableofcontents                % Inhaltsverzeichnis einfügen
\clearpage
% ================================================================================
\chapter{My first chapter}
\minitoc
\section{My first section}
\section{My very long long long long long long long long long long long long long long long long long long long long section title}
\end{document}

Output:
