smartdiagram: How to remove gradient from background color?

Question

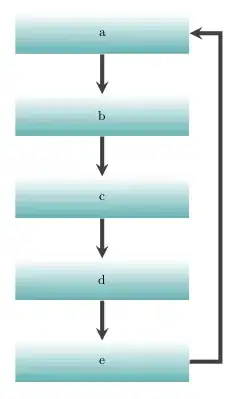

I'm drawing this:

How can I remove the gradient in the background of each node? I want to set a solid color for each element.

Code for the above example:

\documentclass{article}
\usepackage{smartdiagram}

\begin{document}

\tikzset{
  every shadow/.style={
    fill=none,
    shadow xshift=0pt,
    shadow yshift=0pt}
}
\smartdiagramset{
  module shape=rectangle,
  uniform arrow color=true,
  uniform color list=teal!60 for 5 items,
  arrow color=gray!50!black,
  back arrow distance=0.75cm,
  module y sep=2cm,
  module minimum width=4cm,
  text width=4cm,
  border color=none
}
\smartdiagram[flow diagram]{
  a,
  b,
  c,
  d,
  e
}

\end{document}

score 9 · Accepted Answer · answered May 09 '16 at 13:44

The answer proposed by @Christian Hupfer works great but is limited to one color. In the source code of the smartdiagram package, the current color is referenced as \col. Hence, the following code allows the use the set color list parameter:

\tikzset{module/.append style={top color=\col,bottom color=\col}}

The resulting code creates a diagram without gradient inside the nodes but with the chosen colors as @L42 requested.


\documentclass{article}
\usepackage{smartdiagram}
\begin{document}


\tikzset{
  every shadow/.style={
    fill=none,
    shadow xshift=0pt,
    shadow yshift=0pt}
}
\tikzset{module/.append style={top color=\col,bottom color=\col}}

\smartdiagramset{
  module shape=rectangle,
  uniform arrow color=true,
  set color list={red!10, blue!30, blue!30, blue!30, green!40},
  arrow color=gray!50!black,
  back arrow distance=0.75cm,
  module y sep=2cm,
  module minimum width=4cm,
  text width=4cm,
  border color=none,
}
\smartdiagram[flow diagram]{
  a,
  b,
  c,
  d,
  e
}

\end{document}

score 3 · Answer 2 · answered Apr 18 '16 at 11:01

3

One way is to use the module./style= option, but appending the top color and bottom color to have the same value.

The backdraw is that you've have to specify again the colors.

\documentclass{article}
\usepackage{smartdiagram}
\begin{document}


\tikzset{
  every shadow/.style={
    fill=none,
    shadow xshift=0pt,
    shadow yshift=0pt}
}

\tikzset{module/.append style={top color=teal!60,bottom color=teal!60}}
\smartdiagramset{
  module shape=rectangle,
  uniform arrow color=true,
  uniform color list=teal!60 for 5 items,
  arrow color=gray!50!black,
  back arrow distance=0.75cm,
  module y sep=2cm,
  module minimum width=4cm,
  text width=4cm,
  border color=none,
}
\smartdiagram[flow diagram]{
  a,
  b,
  c,
  d,
  e
}

\end{document}

answered Apr 18 '16 at 11:01

Thank you. This works for what I had in mind, but can I use this approach if I need multiple colors? – L42 Apr 18 '16 at 12:45
@L42: Hm, unsure -- which colours do you want to modify? – Apr 18 '16 at 14:17
Say I want a, b and c to be teal and the rest be blue? – L42 Apr 19 '16 at 06:40
@L42: I'll take a lot (and sorry for the late response!) – Apr 19 '16 at 20:39
I'll have no clue for this yet – Apr 25 '16 at 11:06
Thanks for checking it out, Christian. I will use another package if I end up needing different colors for the nodes. – L42 Apr 25 '16 at 11:07
