4

Here is what I want:

enter image description here

And I created simple table as below:

\documentclass[11pt]{article}

\begin{document}

\begin{tabular}{c|cccccc}
     & 0.1    &  0.25   & 0.40    & 0.55    & 0.7     & 0.95   \\ \hline
  7  & 0.0052 &  \boxed{0.0031} &  0.0070 &  0.0075 &  0.0092 &  0.0048 \\
  8  & 0.0061 &  0.0075 &  0.0071 &  0.0065 &  0.0062 &  0.0078 \\
  9  & 0.0078 &  0.0087 &  0.0057 &  0.0079 &  0.0094 &  0.0060 \\
  10 & 0.0040 &  0.0061 &  0.0084 &  0.0062 &  0.0060 &  0.0053 \\
  11 & 0.0075 &  0.0056 &  0.0056 &  0.0056 &  0.0066 &  0.0097 \\
  12 & 0.0054 &  \boxed{0.0030} &  0.0088 &  0.0085 &  0.0056 &  0.0091 \\
  13 & 0.0077 &  0.0073 &  0.0059 &  0.0075 &  0.0049 &  0.0053 \\
  14 & 0.0062 &  0.0057 &  0.0099 &  0.0068 &  0.0087 &  0.0067 \\
  15 & 0.0061 &  0.0069 &  0.0101 &  0.0065 &  0.0080 &  0.0071 \\
\end{tabular}
\end{document}

Can someone please help me understand how can I put labels on first row and first column like show in image? Any help, links or resources would be appreciated.

Shivam
  • 751

4 Answers4

6

In my experience, readers strongly dislike to have to crane their necks to read a column header that's been rotated 90 degrees, especially if there's just a single such column header. I therefore recommend you place the string "Number of Neurons in Hidden Layer" above the first column, while providing one line break in the string. Separately, I would also recommend that you dispense with all vertical lines in the table.

enter image description here

\documentclass[11pt]{article}
\usepackage{amsmath} % for \boxed and \smash[b] macros
\usepackage{booktabs}% for \midrule and \cmidrule macros
\newcommand\headercell[1]{%
   \smash[b]{\begin{tabular}[t]{@{}c@{}} #1 \end{tabular}}}

\begin{document}

\noindent
\begin{tabular}{@{} *{7}{c} @{}}
\headercell{Number of Neurons\\in Hidden Layer} & \multicolumn{6}{c@{}}{Learning Rate}\\
\cmidrule(l){2-7}
& 0.1 &  0.25 & 0.40 & 0.55 & 0.7 & 0.95   \\
\midrule
  7  & 0.0052 &  \boxed{0.0031} &  0.0070 &  0.0075 &  0.0092 &  0.0048 \\
  8  & 0.0061 &  0.0075 &  0.0071 &  0.0065 &  0.0062 &  0.0078 \\
  9  & 0.0078 &  0.0087 &  0.0057 &  0.0079 &  0.0094 &  0.0060 \\
  10 & 0.0040 &  0.0061 &  0.0084 &  0.0062 &  0.0060 &  0.0053 \\
  11 & 0.0075 &  0.0056 &  0.0056 &  0.0056 &  0.0066 &  0.0097 \\
  12 & 0.0054 &  \boxed{0.0030} &  0.0088 &  0.0085 &  0.0056 &  0.0091 \\
  13 & 0.0077 &  0.0073 &  0.0059 &  0.0075 &  0.0049 &  0.0053 \\
  14 & 0.0062 &  0.0057 &  0.0099 &  0.0068 &  0.0087 &  0.0067 \\
  15 & 0.0061 &  0.0069 &  0.0101 &  0.0065 &  0.0080 &  0.0071 \\
\end{tabular}
\end{document}
Mico
  • 506,678
  • This looks very nice. Would you mind providing a bit of walk through to the interesting pieces that you've added? In particular, what are @{}, @c{}, and *{7}{c} doing? And could you motivate the definition of headercell (the role of smash, etc.)? – ashman Nov 15 '20 at 14:31
  • 1
    @MikeWojnowicz - *{7}{c} is shorthand for ccccccc. @{} serves to suppress the whiespace padding that would otherwise be inserted to the left of the first column and to the right of the seventh column. \multicolumn{6}{c@{}}{...} instructs LaTeX to center the contents across 6 columns, while allowing for whitespace padding on the left but none on the right. The \smash[b] part in \smash[b]{\begin{tabular}[t]{...} ... \end{tabular}} is a bit of a trick, to make sure that the second row of the tabular environment is invisible to the other six columns and hence doesn't ... (continued) – Mico Nov 15 '20 at 14:51
  • 1
    @MikeWojnowicz -- (continued) ... interfere with or otherwise affect the optimal placement of the rule across the six columns or the header cells in the next row. TeX features a low-level command called \smash that sets the height and depth of its argument to zero. \smash[b] is an extension provided by the amsmath package, to set depth of the argument to zero while not affecting the height calculation. I recommend studying the user guide of the amsmath package for more information about \smash and \smash[b]. – Mico Nov 15 '20 at 14:53
2

I used \multicolumn from the package multirow to merge the first tow columns together and the remaning columns of the first row together (where "Learning Rate" is contained). The other text must be rotated for that i used the command \rotatebox from the package rotating, and lay out on 9 rows (\multirow).

\documentclass{article}
\usepackage{rotating}
\usepackage{multirow}
\usepackage{amsmath}

\renewcommand{\arraystretch}{1.5}
\begin{document}
\begin{tabular}{p{5pt}c|cccccc}
\multicolumn{2}{}{} & \multicolumn{6}{c}{Learning Rate} \\
     & & 0.1    &  0.25   & 0.40    & 0.55    & 0.7     & 0.95   \\ \cline{2-8}
\multirow{9}{*}{\rotatebox[origin=c]{90}{Number of Neurons in Hidden Layer}}
&  7  & 0.0052 &  \boxed{0.0031} &  0.0070 &  0.0075 &  0.0092 &  0.0048 \\
 & 8  & 0.0061 &  0.0075 &  0.0071 &  0.0065 &  0.0062 &  0.0078 \\
  & 9  & 0.0078 &  0.0087 &  0.0057 &  0.0079 &  0.0094 &  0.0060 \\
&   10 & 0.0040 &  0.0061 &  0.0084 &  0.0062 &  0.0060 &  0.0053 \\
  & 11 & 0.0075 &  0.0056 &  0.0056 &  0.0056 &  0.0066 &  0.0097 \\
&  12 & 0.0054 &  \boxed{0.0030} &  0.0088 &  0.0085 &  0.0056 &  0.0091 \\
&  13 & 0.0077 &  0.0073 &  0.0059 &  0.0075 &  0.0049 &  0.0053 \\
&  14 & 0.0062 &  0.0057 &  0.0099 &  0.0068 &  0.0087 &  0.0067 \\
&  15 & 0.0061 &  0.0069 &  0.0101 &  0.0065 &  0.0080 &  0.0071 \\
\end{tabular}
\end{document}

Output output

Cfun
  • 1,840
0

Here is what I get by rotating in the last row by 90 degrees around the bottom left corner a box containing the label for the rows; as I wished to keep the label for the rows as a one-liner that does not stick over the horizontal line, I decided to have TeX do some \dimexpr-calculations for spreading the \hbox with a negative value in case the line is too long under normal circumstances; the \struts at the beginning and at the end of the label are there for ensuring that the box has enough depth which is important as rotation goes around a bottom corner:

enter image description here

\documentclass{article}
\usepackage{graphicx}

\newlength\MyScratchy
\begin{document}

\begingroup
\renewcommand{\arraystretch}{1.365}%
\settowidth\MyScratchy{0.0000}%
\newcommand*\nf[1]{{%
  \advance\fboxsep\fboxrule
  \fboxrule=0pt
  \fbox{\hbox to\MyScratchy{\hfil\ignorespaces#1\unskip\hfil}}%
}}%
\newcommand*\ff[1]{{%
  \fbox{\hbox to\MyScratchy{\hfil\ignorespaces#1\unskip\hfil}}%
}}%
\begin{tabular}{lr|*{6}{c}}%
\multicolumn{2}{c}{}&\multicolumn{6}{c}{\textsf{Learning Rate}}\\
&&0.1&0.25&0.40&0.55&0.7&0.95\\
\cline{2-8}%
&7&\nf{0.0052}&\ff{0.0031}&\nf{0.0070}&\nf{0.0075}&\nf{0.0092}&\nf{0.0048}\\
&8&\nf{0.0061}&\nf{0.0075}&\nf{0.0071}&\nf{0.0065}&\nf{0.0062}&\nf{0.0078}\\
&9&\nf{0.0078}&\nf{0.0087}&\nf{0.0057}&\nf{0.0079}&\nf{0.0094}&\nf{0.0060}\\
&10&\nf{0.0040}&\nf{0.0061}&\nf{0.0084}&\nf{0.0062}&\nf{0.0060}&\nf{0.0053}\\
&11&\nf{0.0075}&\nf{0.0056}&\nf{0.0056}&\nf{0.0056}&\nf{0.0066}&\nf{0.0097}\\
&12&\nf{0.0054}&\ff{0.0030}&\nf{0.0088}&\nf{0.0085}&\nf{0.0056}&\nf{0.0091}\\
&13&\nf{0.0077}&\nf{0.0073}&\nf{0.0059}&\nf{0.0075}&\nf{0.0049}&\nf{0.0053}\\
&14&\nf{0.0062}&\nf{0.0057}&\nf{0.0099}&\nf{0.0068}&\nf{0.0087}&\nf{0.0067}\\
\smash{%
  \lower\dimexpr\dp\csname @arstrutbox\endcsname-\dp\strutbox+\arrayrulewidth\relax
  \hbox{\rotatebox[origin=bl]{90}{%
    \textsf{%
      %\fboxsep=-\fboxrule
      %\fbox{%
      \parbox[b]{\dimexpr 9\dp\csname @arstrutbox\endcsname+9\ht\csname @arstrutbox\endcsname\relax}{%
         \centering
         \begingroup
         \settowidth\MyScratchy{\hbox{Number of Neurons in Hidden Layer}}%
         \ifdim\MyScratchy>\dimexpr 9\dp\csname @arstrutbox\endcsname+9\ht\csname @arstrutbox\endcsname\relax
           \advance\MyScratchy-\dimexpr 9\dp\csname @arstrutbox\endcsname+9\ht\csname @arstrutbox\endcsname\relax
           \strut\hbox spread-\MyScratchy{Number of Neurons in Hidden Layer}\strut
         \else
           \strut\hbox{Number of Neurons in Hidden Layer}\strut
         \fi
         \endgroup
      }%
      %}%
    }%
  }}%
}%
&15&\nf{0.0061}&\nf{0.0069}&\nf{0.0101}&\nf{0.0065}&\nf{0.0080}&\nf{0.0071}\\
\end{tabular}
\endgroup

\end{document}

(By the way: I used \smashfor ensuring that height and depth of the rotated box won't affect the height of the table-row where the rotated box occurred.)

In case you wish a linebreak, I suggest omitting the spreading-calculations and letting the surrounding \parbox do its job while probably inserting some linebreak-commands oneself:

enter image description here

\documentclass{article}
\usepackage{graphicx}

\newlength\MyScratchy
\begin{document}

\begingroup
\renewcommand{\arraystretch}{1.365}%
\settowidth\MyScratchy{0.0000}%
\newcommand*\nf[1]{{%
  \advance\fboxsep\fboxrule
  \fboxrule=0pt
  \fbox{\hbox to\MyScratchy{\hfil\ignorespaces#1\unskip\hfil}}%
}}%
\newcommand*\ff[1]{{%
  \fbox{\hbox to\MyScratchy{\hfil\ignorespaces#1\unskip\hfil}}%
}}%
\begin{tabular}{lr|*{6}{c}}%
\multicolumn{2}{c}{}&\multicolumn{6}{c}{\textsf{Learning Rate}}\\
&&0.1&0.25&0.40&0.55&0.7&0.95\\
\cline{2-8}%
&7&\nf{0.0052}&\ff{0.0031}&\nf{0.0070}&\nf{0.0075}&\nf{0.0092}&\nf{0.0048}\\
&8&\nf{0.0061}&\nf{0.0075}&\nf{0.0071}&\nf{0.0065}&\nf{0.0062}&\nf{0.0078}\\
&9&\nf{0.0078}&\nf{0.0087}&\nf{0.0057}&\nf{0.0079}&\nf{0.0094}&\nf{0.0060}\\
&10&\nf{0.0040}&\nf{0.0061}&\nf{0.0084}&\nf{0.0062}&\nf{0.0060}&\nf{0.0053}\\
&11&\nf{0.0075}&\nf{0.0056}&\nf{0.0056}&\nf{0.0056}&\nf{0.0066}&\nf{0.0097}\\
&12&\nf{0.0054}&\ff{0.0030}&\nf{0.0088}&\nf{0.0085}&\nf{0.0056}&\nf{0.0091}\\
&13&\nf{0.0077}&\nf{0.0073}&\nf{0.0059}&\nf{0.0075}&\nf{0.0049}&\nf{0.0053}\\
&14&\nf{0.0062}&\nf{0.0057}&\nf{0.0099}&\nf{0.0068}&\nf{0.0087}&\nf{0.0067}\\
\smash{%
  \lower\dimexpr\dp\csname @arstrutbox\endcsname-\dp\strutbox+\arrayrulewidth\relax
  \hbox{\rotatebox[origin=bl]{90}{%
    \textsf{%
      %\fboxsep=-\fboxrule
      %\fbox{%
      \parbox[b]{\dimexpr 9\dp\csname @arstrutbox\endcsname+9\ht\csname @arstrutbox\endcsname\relax}{%
         \centering
         \strut Number of Neurons\linebreak in Hidden Layer\strut
      }%
      %}%
    }%
  }}%
}%
&15&\nf{0.0061}&\nf{0.0069}&\nf{0.0101}&\nf{0.0065}&\nf{0.0080}&\nf{0.0071}\\
\end{tabular}
\endgroup

\end{document}
Ulrich Diez
  • 28,770
-1
\documentclass{article}
\usepackage{amsmath}
\usepackage{graphicx}
\usepackage{multirow}
\usepackage{rotating}
\begin{document}
\begin{tabular}{lccccccc}
&& \multicolumn{6}{c}{Learning Rate}\\
&& 0.1    &  0.25   & 0.40    & 0.55    & 0.7     & 0.95   \\ \hline\\
\rotatebox{90}{\multirow{10}*{\vspace{96pt}\hspace{-150pt}Number of Neurons in Hidden Layer}}  & \vspace{5pt} 7  & 0.0052 & \boxed{0.0031} &  0.0070 &  0.0075 &  0.0092 &  0.0048 \\
& \vspace{5pt}8  & 0.0061 &  0.0075 &  0.0071 &  0.0065 &  0.0062 &  0.0078 \\
&\vspace{5pt}9  & 0.0078 &  0.0087 &  0.0057 &  0.0079 &  0.0094 &  0.0060 \\
&\vspace{5pt}10 & 0.0040 &  0.0061 &  0.0084 &  0.0062 &  0.0060 &  0.0053 \\
&\vspace{5pt}11 & 0.0075 &  0.0056 &  0.0056 &  0.0056 &  0.0066 &  0.0097 \\
&\vspace{5pt}12 & 0.0054 & \boxed{0.0030} &  0.0088 &  0.0085 &  0.0056 &  0.0091 \\
&\vspace{5pt}13 & 0.0077 &  0.0073 &  0.0059 &  0.0075 &  0.0049 &  0.0053 \\
&\vspace{5pt}14 & 0.0062 &  0.0057 &  0.0099 &  0.0068 &  0.0087 &  0.0067 \\
&\vspace{5pt}15 & 0.0061 &  0.0069 &  0.0101 &  0.0065 &  0.0080 &  0.0071 \\
\end{tabular}
\end{document}

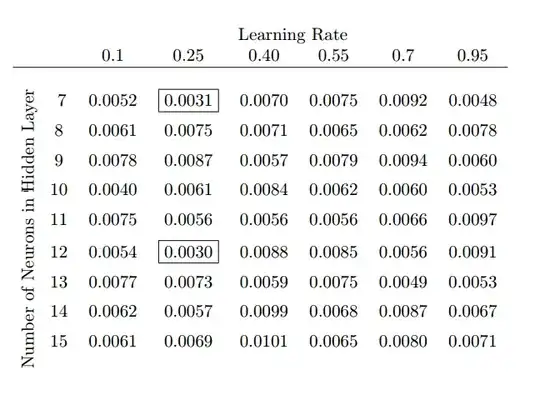

rottbl

murugan
  • 1,669
