3

When I am making a list of listings in my latex report, using:

\documentclass{article}
\usepackage[utf8]{inputenc}
\usepackage{listings}
\lstset{language = Matlab,
inputpath=./Code/}

\begin{document}

\lstlistoflistings
\lstinputlisting{test1.m}
\lstinputlisting{test2.m}
\lstinputlisting{test3.m}

\end{document}

the paths of my files are displayed:

enter image description here

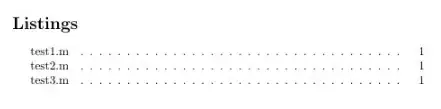

How can I hide the path? I would like to obtain:

enter image description here

without moving my files into the current directory.

Heiko Oberdiek
  • 271,626
fidekild
  • 151

1 Answers1

2

Option caption enhances the listing with a caption, whose title is also used for the entry in the list of listings:

\documentclass{article}
\usepackage[utf8]{inputenc}
\usepackage{listings}
\lstset{language = Matlab, inputpath=./Code/}

\begin{document}

\lstlistoflistings
\lstinputlisting[caption=test1.m]{test1.m}
\lstinputlisting[caption=test2.m]{test2.m}
\lstinputlisting[caption=test3.m]{test3.m}

\end{document}

Result

The caption can be suppressed for the document by an empty mandatory argument for key caption. The optional argument in square brackets denotes the title for the entry in the list of listings:

\documentclass{article}
\usepackage[utf8]{inputenc}
\usepackage{listings}
\lstset{language = Matlab, inputpath=./Code/}

\begin{document}

\lstlistoflistings
\lstinputlisting[caption={[test1.m]{}}]{test1.m}
\lstinputlisting[caption={[test2.m]{}}]{test2.m}
\lstinputlisting[caption={[test3.m]{}}]{test3.m}

\end{document}

Result

Heiko Oberdiek
  • 271,626
  • Thank you very much, it works well. I still have another problem with the caption though: for a file called "test_name.m", the command \lstinputlisting{test_name.m} works but neither \lstinputlisting[caption={[test_name.m]{}}]{test_name.m} nor \lstinputlisting[caption={[test\_name.m]{}}]{test_name.m} work. How can I add the underscore character? – fidekild Jul 05 '16 at 19:22
  • @fidekild put the filename in " " – naphaneal Jul 05 '16 at 19:40
  • @fidekild \_ (or \textunderscore) in the value of caption works. – Heiko Oberdiek Jul 05 '16 at 19:55
  • @HeikoOberdiek Thank you, it now works perfectly. – fidekild Jul 05 '16 at 23:33
