I need to highlight full code lines in lstlisting and I'm using the solution provided in this stackexchange answer.

However, long wrapped lines (i.e., when "breaklines" is used in lstlisting) are not highlighted properly. Only the first part of the line (before the break) gets highlighted.

For example

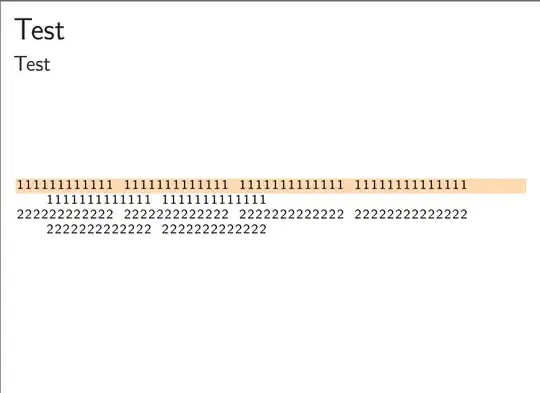

enter image description here

The source for the image above

\documentclass[dvipsnames,cmyk]{beamer}
\usepackage{pgf, pgffor}
\usepackage{listings}
\usepackage{lstlinebgrd} % see http://www.ctan.org/pkg/lstaddons

\makeatletter
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%
% \btIfInRange{number}{range list}{TRUE}{FALSE}
%
% Test in int number <number> is element of a (comma separated) list of ranges
% (such as: {1,3-5,7,10-12,14}) and processes <TRUE> or <FALSE> respectively

\newcount\bt@rangea
\newcount\bt@rangeb

\newcommand\btIfInRange[2]{%
    \global\let\bt@inrange\@secondoftwo%
    \edef\bt@rangelist{#2}%
    \foreach \range in \bt@rangelist {%
        \afterassignment\bt@getrangeb%
        \bt@rangea=0\range\relax%
        \pgfmathtruncatemacro\result{ ( #1 >= \bt@rangea) && (#1 <= \bt@rangeb) }%
        \ifnum\result=1\relax%
            \breakforeach%
            \global\let\bt@inrange\@firstoftwo%
        \fi%
    }%
    \bt@inrange%
}
\newcommand\bt@getrangeb{%
    \@ifnextchar\relax%
        {\bt@rangeb=\bt@rangea}%
        {\@getrangeb}%
}
\def\@getrangeb-#1\relax{%
    \ifx\relax#1\relax%
        \bt@rangeb=100000%   \maxdimen is too large for pgfmath
    \else%
        \bt@rangeb=#1\relax%
    \fi%
}

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%
% \btLstHL<overlay spec>{range list}
%
% TODO BUG: \btLstHL commands can not yet be accumulated if more than one overlay spec match.
%
\newcommand<>{\btLstHL}[1]{%
  \only#2{\btIfInRange{\value{lstnumber}}{#1}{\color{orange!30}\def\lst@linebgrdcmd{\color@block}}{\def\lst@linebgrdcmd####1####2####3{}}}%
}%
\makeatother

\begin{document}
\begin{frame}[fragile]
\frametitle{Test}
\framesubtitle{Test}
\begin{columns}
\column{\dimexpr\paperwidth-20pt}
\begin{lstlisting}[breaklines,linebackgroundcolor={\btLstHL<1>{1}},basicstyle={\fontsize{9}{10}\selectfont}]
111111111111 1111111111111 1111111111111 11111111111111 1111111111111 1111111111111
222222222222 2222222222222 2222222222222 22222222222222 2222222222222 2222222222222
\end{lstlisting}
\end{columns}
\end{frame}
\end{document}

I'm trying to highlight the entire line of 1s.

mike
  • 21

0 Answers0
