I'm trying to include equations in a table, I know I need to use minipage to do so. But for some reason it is creating a gap between where the row would usually start and where it does when I include the minipage/math combination.
I have tried using abovedisplayskip to no avail. As well as trimbox and raisebox, both of which succeeded in shifting the equations higher but the text in the first two columns was still offset.
I have the same issue occur with subequations, but the gap is even larger.
Does anyone know why this is happening and/or how to fix it?
\documentclass{article}
\usepackage{xcolor, colortbl}
\usepackage{array,booktabs,tabularx,rotating,amsmath}
\begin{document}
\begin{sidewaystable}
\begin{tabularx}{\textwidth}{X>{$}>{\raggedright\arraybackslash}p{3cm}<{$}l}
\toprule
\textbf{Section} & \textbf{Variables} & \multicolumn{1}{c}{\textbf{Constraints}} \\
\midrule
Section 1 & (0 \le a \le 100)\newline
(0 \le b \le 100) & \begin{minipage}{13cm}
\begin{gather}
a+b \ge 42 \\
a \ge 11
\end{gather}
\end{minipage}\\
\rowcolor{gray!50}
Section 2 & (0 \le c \le 100) \newline
(0 \le d \le 100) &\begin{minipage}{13cm}
\begin{subequations}
\begin{gather}
\text{Given a bunch of stuff define:} \notag \\
\sum_{\mathclap{\substack{a bunch of really\\long stuff}}} (a*d)\\
c=d
\end{gather}
\end{subequations}
\end{minipage}\\
Usually & there & is no vertical space\\
\bottomrule
\end{tabularx}
\end{sidewaystable}
\end{document}

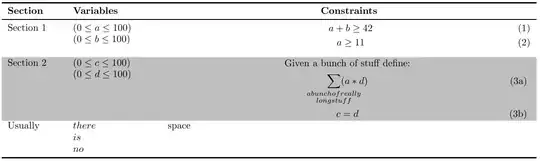

This is how I would like the table to be aligned. (This was done by putting the the minipage on a separate row and then using raisebox to lift it into place. But this feels very hacky, there must be an actual way to specify the alignment.)


\mathclapwith inline maths? – Bernard Aug 24 '16 at 09:19amsmath. – barbara beeton Aug 24 '16 at 13:04\begin{minipage}[t]{...}? my guess is that the extra "height" on the other columns may be caused by the vertical centering of theminipage. – barbara beeton Aug 24 '16 at 14:40
