I have this piece of code

\begin{equation}
\begin{split}
n_1 &= Tr (O^{eff} \sigma_1 ) \\
&= Tr\Bigg [O^{eff} \begin{pmatrix} 0 & 1 \\ 1 & 0 \end{pmatrix} \Bigg ] \\
\end{split}
\end{equation}

and I get this when I compile with texmaker

enter image description here

Copy-pasted the same code in Overleaf, the 2x2 matrix looks normal. Any ideas?

Here is a list of the packages I use:

\usepackage{siunitx}
\usepackage{dcolumn}
\usepackage{sidecap}
\usepackage{braket}
\usepackage{amsmath}
\usepackage{caption}
\usepackage{wrapfig}
\usepackage{bbold}
\usepackage{amsthm}
\usepackage{url}
\usepackage{titlesec}
\usepackage{caption}
\usepackage{subcaption}
\usepackage{appendix}
Bixqu
  • 21
  • 1
    Please make this into a fully compilable minimal example that others can copy and test without having to add anything. This greatly increase your chances of getting help. For example the preamble you gave plus a naive doc, does not give the image you provide. – daleif Sep 01 '16 at 13:50
  • 5
    Managed to solve the problem by using the answer from :http://tex.stackexchange.com/questions/14071/how-can-i-increase-the-line-spacing-in-a-matrix – Bixqu Sep 01 '16 at 13:54

1 Answers1

1

You didn't provide complete document, by which you "produce" your equation ... so I can't say anything, what is cause. Anyway, with following MWE, I can't reproduce your result:

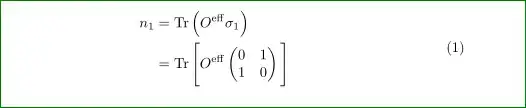

enter image description here

\documentclass{article}
\usepackage{mathtools}
\DeclareMathOperator{\eff}{eff}
\DeclareMathOperator{\Tr}{Tr}


\begin{document}
    \begin{equation}
\begin{split}
n_1 & = \Tr \Big(O^{\eff} \sigma_1 \Big) \\
    & = \Tr\Bigg [O^{\eff}
    \begin{pmatrix}
        0 & 1 \\ 1 & 0
    \end{pmatrix} \Bigg ] \\
\end{split}
    \end{equation}
\end{document}

In above MWE I take liberty to make some changes:

  • for Tr and eff I suggest to use upright fonts. For this seems to be used \DeclareMathOperator{...}{...} macro
  • I increase parent in the first row of equation
  • for math I use mathtools packages ("enhanced" version of amsmath
Zarko
