I sometimes find myself typesetting commutative cubes using TikZ. Here is my code.

\documentclass{article}

\usepackage{tikz}

\usetikzlibrary{matrix}

\tikzset
{
  over/.style={preaction={draw=white,-,line width=6pt}},
}

\begin{document}

\begin{tikzpicture}
  \matrix[matrix of math nodes,column sep={2.5em},row sep={2.5em},
    text height=1.5ex,text depth=.25ex]
  {
      |(e)|  X X X X & & |(0)|   X_0     \\
    & |(1)|  X_1     & & |(01)|  X_{01}  \\
      |(2)|  X_2     & & |(02)|  X_{02}  \\
    & |(12)| X_{12}  & & |(012)| X_{012} \\
  };

  \draw[->] (e)  to (2);
  \draw[->] (0)  to (02);
  \draw[->] (e)  to (0);
  \draw[->] (2)  to (02);

  \draw[->,over] (1)  to (12);
  \draw[->]      (01) to (012);
  \draw[->,over] (1)  to (01);
  \draw[->]      (12) to (012);

  \draw[->] (e)  to (1);
  \draw[->] (0)  to (01);
  \draw[->] (2)  to (12);
  \draw[->] (02) to (012);
\end{tikzpicture}

\end{document}

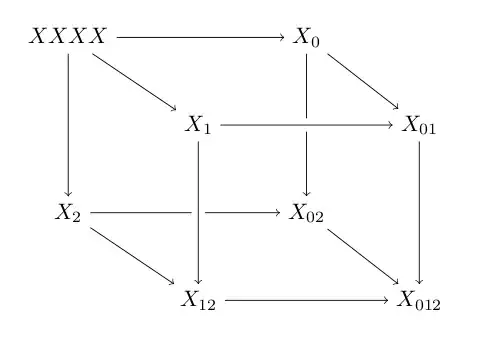

The problem that I often encounter is that if one of the nodes is larger than the others, then my cube is a little distorted.

cube0

My ad hoc fix is to adjust the width of one of the colums, for example by changing the first line in the matrix to

|(e)|  X X X X & & |(0)|   X_0     &[1em] \\

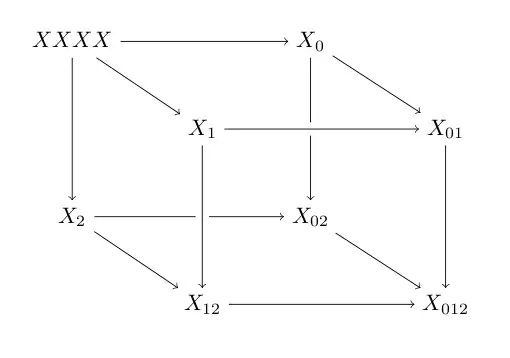

Then the result is pretty good:

cube1

Another thing I tried is changing the column sep and row sep options to:

column sep={5em,between origins},row sep={5em,between origins}

but then the edges are still not quite parallel:

cube2

I'm quite satisfied with the look of the second picture, but this method has a disadvantage that I have to guess a good offset value which is usually cumbersome. Is there a way of making TikZ figure out this value on its own? Or maybe there is a better way of using between origins or something else entirely?

Karol Szumiło
  • 703
  • 1
    Imagine you would like to anchor the 120 degree angle of node 12 if you write 12.120 TikZ wil think that this is a number and you will spend lots of time thinking what might be the problem. Hence, don't do numbers in node names. – percusse Sep 14 '16 at 13:02
  • @percusse Your advice is appreciated but it doesn't apply here. It is customary to index vertices of an $(n+1)$-cube by subsets of the set ${0, 1, \ldots, n}$. I find it really helpful for the node names to follow this convention and if I am typesetting a cube it is very unlikely that I will have to modify any angles. – Karol Szumiło Sep 14 '16 at 13:24
  • Please take a look on my cubes here: http://tex.stackexchange.com/a/234151 – LaRiFaRi Sep 14 '16 at 14:32
  • Why do you think that the edges of the last solution are not parallel? In fact, they are. – LaRiFaRi Sep 14 '16 at 14:35
  • 1
    Well you have been warned. – percusse Sep 14 '16 at 14:38
  • @LaRiFaRi I have seen this post. The edges in the last picture are not parallel, I checked it with a ruler. – Karol Szumiło Sep 14 '16 at 14:53
