I'm preparing a beamer presentation which includes lengthy formulas and would like to be able to skip back or forth when I want to refer to a formula already stated...how can I achieve this
Asked
Active
Viewed 895 times
1 Answers
2
First Approach
The first step is to set up a hyperlink that brings you to the stated formula. And then...

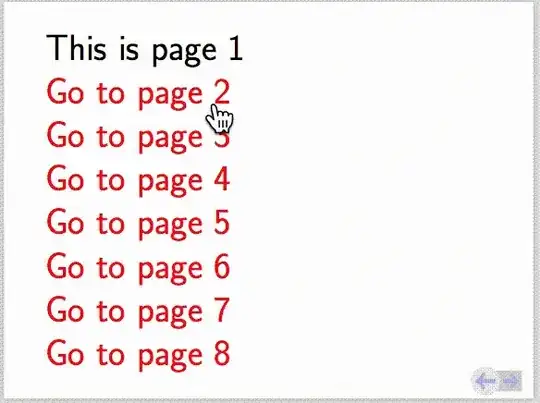

If you want just that two buttons, do the following
\documentclass{beamer}
\hypersetup{colorlinks}
\usepackage{tikz}
\defbeamertemplate*{navigation symbols}{just back and forward}
{%
\hbox{%
\begin{tikzpicture}%
\path(0pt,0pt)(40pt,20pt);
\fill[black!20](10pt,3pt)rectangle(35pt,17pt);
\fill[black!10](10pt,10pt)circle(10pt);
\draw[<-,line width=3](3pt,10pt)--(17pt,10pt);
\draw[->,line width=2.5](22pt,10pt)--(33pt,10pt);
\end{tikzpicture}\kern-40pt%
\Acrobatmenu{GoBack}{\vbox to20pt{}\kern20pt}%
\Acrobatmenu{GoForward}{\vbox to20pt{}\kern20pt}%
}%
}
\begin{document}
\Huge
\makeatletter
\foreach\i in{1,...,8}{
\frame{
\foreach\j in{1,...,8}{
\ifnum\i=\j
This is page \i \par
\else
\hyperlink{page.\j}{Go to page \j} \par
\fi
}
}
}
\end{document}
Second Approach (not yet working)
Potentially you can set up a hyperlink button that brings you to the current page but with different zoom.
This means that you can typeset a very tiny formula somewhere at the current page; and then use a button to zoom in. Usually your PDF viewer will provide a shortcut to let you zoom to fit; and that is how you go back.
Someone had done this before. But it a little too complex to be explained here. So I will leave the link here: Automatic "Zoom in" hypertext boxes in PDF




\beamerskipbutton, \beamergotobutton, \beamergotobutton. – AboAmmar Dec 24 '16 at 16:27\againframemakes a copy of a previous frame. – Symbol 1 Dec 25 '16 at 04:50\beamerreturnbutton. – Symbol 1 May 10 '17 at 13:34
