Can Help me make this in latex

Can someone help me to make this in latex.

Zarko
  • 296,517
Trimi Volkswagen
  • 201
  • 1
    Before just dropping this question here... look around our site and see how others ask questions. In particular, this question is lacking a "show of effort". There are many packages you can use to create this image, but laying a foundation for that - you providing a minimal example showing some work towards a solution - would be welcomed. – Werner Dec 26 '16 at 18:57
  • 1
    This example in the Tikz Gallery will get you started. http://www.texample.net/tikz/examples/venn-diagram/ – R. Schumacher Dec 26 '16 at 18:58
  • im not understanding how to make coordinats like this.. anyway thank u – Trimi Volkswagen Dec 26 '16 at 19:19

2 Answers2

4

You can first fill circle A,B and C then draw circumferences

\documentclass[margin=5mm,tikz]{standalone}

\def\firstcircle{(0,0) circle (1.5cm)}
\def\secondcircle{(135:2cm) circle (1.5cm)}
\def\thirdcircle{(135:4cm) circle (1.5cm)}

\begin{document}

\begin{tikzpicture}

%fill circles and add nodes A,B,C
\path[fill=green]\firstcircle node{C};
\path[fill=red]  \secondcircle node{B};
\path[fill=blue] \thirdcircle node{A};

%draw circles
\draw \firstcircle;
\draw \secondcircle;
\draw \thirdcircle;

\end{tikzpicture}


\end{document}
Salim Bou
  • 17,021
  • 2
  • 31
  • 76
1

You can use the tikz package, like this:

\documentclass{article}

\usepackage{tikz}

\begin{document}

\begin{tikzpicture}
\draw [fill=green] (3,1) circle [radius=1] node{$C$};
\draw [fill=red] (2,2) circle [radius=1] node{$B$};
\draw [fill=blue] (1,3) circle [radius=1] node{$A$};

\draw (3,1) circle [radius=1];
\draw (2,2) circle [radius=1];
\draw (1,3) circle [radius=1];

\end{tikzpicture}

\end{document}

The first three orders in the tikzpicture environment mean the following: draw, and then fill it with a color, in point (x,y) a circle of radius z, and write down letter X in math mode. Note the order in which I fill the circles: green, then red, then blue, to match the picture you post.

The next three lines of code say: draw in point (x,y) a circle of radius z. If you don't put these codelines, then the fill option of the three previous lines "erase" the boundary lines.

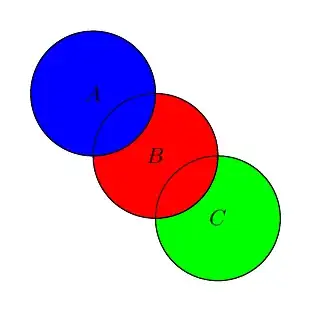

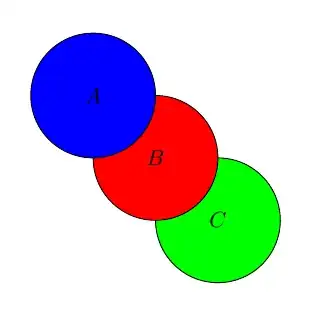

circles without boundary lines circles with boundary lines

Lastly, you can play with the length of the circles' radii and the centers themselves to match your exact figure.
