how to make my \defeq lower

Question

My tex code is shown below.

\documentclass[10pt]{article}
\usepackage{amsmath}
\newcommand{\defeq}{\overset{\text{\tiny def}}{=}}
\begin{document}
$P\defeq A$
\end{document}

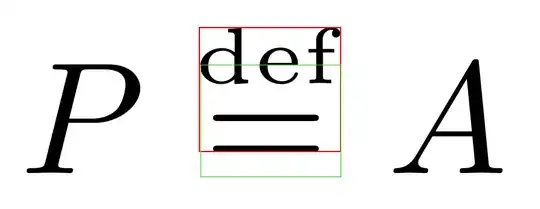

I intend to move the \defeq sign in red rectangle into the green one. Or, in other words, i want the \defeq sign being center aligned in LaTeX character box. Can you tell me how to do this?

Can't you find your happiness at http://tex.stackexchange.com/q/35404/34551 or http://tex.stackexchange.com/q/114758/34551 ? Have you tried for instance \newcommand{\defeq}{\vcenter{\hbox{\( \overset{\mathrm{def}}{=} \)}}}? — Clément, Feb 08 '17 at 05:55
@Clément - None of the answers to the two posting you provided links to appear to address the OP's objective to shift the entire def-eq block down by a certain amount. Using \vcenter will place the def-eq block a bit too low for the OP's taste. — Mico, Feb 08 '17 at 06:07

Mico · Answer 1 · 2017-02-08T09:44:18.680

2

Here's a solution that employs the LaTeX command \raisebox.

\documentclass[10pt]{article}
\usepackage{amsmath}
\newcommand{\defeq}{\overset{\text{\tiny def}}{=}}
\newcommand{\ldefeq}{\mathrel{\raisebox{-0.3ex}{$\defeq$}}}
\begin{document}
$P\defeq A$, $P\ldefeq A$
\end{document}

edited Feb 08 '17 at 09:44

answered Feb 08 '17 at 06:07

Mico

506,678

The argument of \lower -- 0.3ex in the code shown above -- may need to be adjusted slightly depending on the math font that's used by your document. 0.3ex seems about right for Computer Modern (the math font shown in your screenshot) and Latin Modern; for the newtxmath, newpxmath, and euler math fonts, 0.29ex is about right; for the mtpro2 font package, 0.28ex seems like the way to go. – Mico Feb 08 '17 at 06:26
Thanks. i wonder if there is a way to replace 0.3ex with a command? – aban Feb 08 '17 at 06:54
\raisebox has been in LaTeX from day one. – egreg Feb 08 '17 at 09:40
@egreg - Thanks for this. For some reason, I had been under the mistaken impression that \raisebox was part of the graphicx package. I will update the code to use the "native" LaTeX command. – Mico Feb 08 '17 at 09:43

score 2 · Accepted Answer · answered Feb 08 '17 at 09:39

You can use some low level commands:

\documentclass{article}
\usepackage{amsmath}

\makeatletter
\newcommand{\defeq}{\mathrel{\aban@defeq}}
\newcommand{\aban@defeq}{%
  \vbox{\offinterlineskip\check@mathfonts
    \ialign{\hfil##\hfil\cr
      \fontsize{\ssf@size}{\z@}\normalfont def\cr
      \noalign{\kern1\p@}
      $\m@th=$\cr
      \noalign{\kern-.5\fontdimen22\textfont2}
    }%
  }%
}
\makeatother

\begin{document}

\[
A=B\defeq P
\]

\end{document}

The spacing between “def” and “=” is set to one point, adapt it to your liking. The “=” is lowered by half the height of the math axis, which is available as \fontdimen22\textfont2.

Personally, I don't like such a symbol. If I were forced to use something like “it is defined to be”, I'd probably choose \coloneq, which is asymmetric. But I've never felt the mathematical need for such a symbol.
