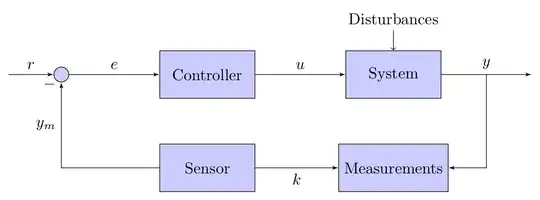

How to correct this diagram block?

Question

\tikzstyle{block} = [draw, fill=blue!20, rectangle,
minimum height=3em, minimum width=6em]
\tikzstyle{sum} = [draw, fill=blue!20, circle, node distance=1cm]
\tikzstyle{input} = [coordinate]
\tikzstyle{output} = [coordinate]
\tikzstyle{pinstyle} = [pin edge={to-,thin,black}]

% The block diagram code is probably more verbose than necessary
\begin{tikzpicture}[auto, node distance=2cm,>=latex']
% We start by placing the blocks
\node [input, name=input] {};
\node [sum, right of=input] (sum) {};
\node [block, right of=sum] (controller) {Controller};
\node [block, right of=controller, pin={[pinstyle]above:Disturbances},
node distance=3cm] (system) {System};
% We draw an edge between the controller and system block to
% calculate the coordinate u. We need it to place the measurement block.
\draw [->] (controller) -- node[name=u] {$u$} (system);
\node [output, right of=system] (output) {};
\node [block, below of=system] (measurements) {Measurements};
\node [block, left of=measurements ] (sensor) {Sensor};
\draw [<-] (measurements) -- node[name=k] {$k$} (sensor);
% Once the nodes are placed, connecting them is easy.
\draw [draw,->] (input) -- node {$r$} (sum);
\draw [->] (sum) -- node {$e$} (controller);
\draw [->] (system) -- node [name=y] {$y$}(output);
\draw [->] (y) |- (measurements);
\draw [->] (sensor) -| node[pos=0.99] {$-$}
node [near end] {$y_m$} (sum);
\end{tikzpicture}

Answer 1

Replace left of=measurements by below=of controller.

Three minor notes:

• The left of, right of etc keys are deprecated. It is now recommended to use left=of ... instead of left of=... etc. This requires \usetikzlibrary{positioning}. This change is more than a transposition of letters. The new positioning is more robust and flexible than the old way.

• You can write block/.style = {...} (as an option to tikzpicture or as an argument to \tikzset) instead of \tikzstyle{block} = [...]. As I understand it, the first method (that I also used below) is more in line with the current tikz conventions. The second method is a rather singular syntax not used elsewhere in tikz.

• As Zarko has noted in the comments, the node distance can be chosen differently in the x and y direction by specifying e.g. node distance=1cm and 2cm.

\documentclass[border=2mm]{standalone}
\usepackage{tikz}
\usetikzlibrary{positioning,arrows}
\tikzset
  {block/.style =
    {draw, fill=blue!20, rectangle, minimum height=3em, minimum width=6em},
   sum/.style = {draw, fill=blue!20, circle, node distance=1cm},
   input/.style = {coordinate},
   output/.style = {coordinate},
   pinstyle/.style = {pin edge={to-,thin,black}}
  }

\begin{document}
% The block diagram code is probably more verbose than necessary
\begin{tikzpicture}[auto, node distance=1cm and 2cm,>=latex']
% We start by placing the blocks
\node [input, name=input] {};
\node [sum, right=of input] (sum) {};
\node [block, right=of sum] (controller) {Controller};
\node [block, right=of controller, pin={[pinstyle]above:Disturbances},
node distance=3cm] (system) {System};
% We draw an edge between the controller and system block to
% calculate the coordinate u. We need it to place the measurement block.
\draw [->] (controller) -- node[name=u] {$u$} (system);
\node [output, right=of system] (output) {};
\node [block, below=of system] (measurements) {Measurements};
\node [block, below=of controller] (sensor) {Sensor};
\draw [<-] (measurements) -- node[name=k] {$k$} (sensor);
% Once the nodes are placed, connecting them is easy.
\draw [draw,->] (input) -- node {$r$} (sum);
\draw [->] (sum) -- node {$e$} (controller);
\draw [->] (system) -- node [name=y] {$y$}(output);
\draw [->] (y) |- (measurements);
\draw [->] (sensor) -| node[pos=0.99] {$-$}
node [near end] {$y_m$} (sum);
\end{tikzpicture}
\end{document}

Answer 2

As supplement to gernot (no so much) "verbose" answer, hopefully it is more concise :) In it I use calc and quotes library:

\documentclass[border=2mm]{standalone}
\usepackage{tikz}
\usetikzlibrary{arrows, calc, positioning, quotes}
\tikzset{
     block/.style = {rectangle, draw, fill=blue!20, minimum height=3em, minimum width=6em},
       sum/.style = {circle, draw, fill=blue!20},
 every pin/.style = {pin edge={<-,black}},
                > = latex'
        }

\begin{document}
    \begin{tikzpicture}[auto,
    node distance = 6mm and 12mm]
% placing the blocks
\coordinate (in);
\node (sum)             [sum, right=of in] {};
\node (controller)      [block, right=of sum]           {Controller};
\node (system)          [block, pin=above:Disturbances,
                         right=of controller]           {System};
\coordinate[right=of system] (out);
\node (measurement)     [block, below=of controller]    {Measurements};
\node (sensor)          [block, below=of system]        {Sensor};
% edges between blocks
\draw[->]   (in)            edge ["$r$"] (sum)
            (sum)           edge ["$e$"] (controller)
            (controller)    edge["$u$"]  (system)
            (system)        edge["$y$"]  (out)
            (sensor)        edge["$k$"] (measurement)
            (measurement)   -|  (sum)
                            node [pos=0.75] {$y_m$}
                            node [pos=0.95] {$-$};
\draw[->]   ($(system.east)!0.5!(out)$) |- (sensor);
\end{tikzpicture}
\end{document}

Edit: Change considering CarLaTeX comment, comments in code are now more meaningful. I still believe, that my suggested order of blocks "sensor"and "measuremnt" are correct. However until these blocks are linear, the order is not esential :)
