Draw circle with three colours in tikz

Question

I would like to have a circle where the circumference is coloured with three different colours, something like the following but a line and with only three colours:

I initially tried

\documentclass{article}
\usepackage{amsmath}
\usepackage{tikz}
\pagestyle{empty}
\begin{document}

\begin{tikzpicture}
    \draw [red] (0,0) arc [radius=1, start angle=0, end angle=120];
    \draw [green] (1,0) arc [radius=1, start angle=120, end angle=240];
    \draw [blue] (0,0) arc [radius=1, start angle=240, end angle=360];
\end{tikzpicture}

\end{document}

but this does not give the right result, and the arguments of the function are such that it's quite difficult to make what I have in mind.

Welcome to TeX.se. Please don't post code fragments. Instead put your code into a complete compilable document that people can play with. — Alan Munn, May 08 '17 at 14:20
Sorry! Fixed it now, let me know if there's something else to fix. — whatamess, May 08 '17 at 14:23
What do you have in mind exactly? We know what it isn't, but what is it? What do you mean by a line? — cfr, May 08 '17 at 22:32
I actually had no precise idea of what I meant by "line" except for "something thinner than the picture". All of the answers below work well for what I need to do! — whatamess, May 09 '17 at 08:30

Alan Munn · Answer 1 · 2017-05-08T23:28:55.503

I am posting this code, which is from a deleted answer by Zarko on a related question (TikZ: Circle with color transition). It is not my code, so I've made the answer Community Wiki.

\documentclass[border=5mm,tikz]{standalone}

\begin{document}
\begin{tikzpicture}[radius=32mm]
\foreach \i [count=\ii from 0] in {red, green, blue}
    \fill[\i] (0,0) -- (\ii*120:32mm)
                    arc[start angle=\ii*120,delta angle=120]
                    -- cycle;
    \fill[white] (0,0) circle (16mm);
\end{tikzpicture}
\end{document}

To add the white space between the parts, you can use \fill[\i, draw=white, very thick]. To make the bars thinner, adjust the size of white circle in the middle.

CarLaTeX · Answer 2 · 2017-05-09T04:39:49.063

Edit:

cfr's comment made me read more carefully your question.

Of course, if you need only a line, you may increase the radius of the white internal circle, for example:

\documentclass{article}
\usepackage{tkz-euclide}
\usetkzobj{all}
\pagestyle{empty}
\begin{document}
    \begin{tikzpicture}
        \tkzDefPoint(0,0){O}
        \foreach \mycolor/\mygrad in {red/0,green/120,blue/240}
            \tkzDrawSector[R,draw=white,fill=\mycolor](O,1)(\mygrad,\mygrad+120);
        \fill[white] (0,0) circle (.95); % <--- here put the value you like
    \end{tikzpicture}
\end{document}

Original answer:

You could also use tkz-euclide package:

\documentclass{article}
\usepackage{tkz-euclide}
\usetkzobj{all}
\pagestyle{empty}
\begin{document}
    \begin{tikzpicture}
        \tkzDefPoint(0,0){O}
        \foreach \mycolor/\mygrad in {red/0,green/120,blue/240}
            \tkzDrawSector[R,draw=white,fill=\mycolor](O,1)(\mygrad,\mygrad+120);
        \fill[white] (0,0) circle (.5);
    \end{tikzpicture}
\end{document}

The gaps look smooth and much better than no gaps IMO. Also there are gaps in the original image specified. — MCMastery, May 09 '17 at 04:08
@MCMastery Thank you! Indeed, I put the gaps because they were in the original image. However, you may also easily avoid them, it's enough to write \draw=mycolor instead of \draw=white. — CarLaTeX, May 09 '17 at 04:16
@MCMastery The original image misled us a bit, actually the OP asked for a line only... — CarLaTeX, May 09 '17 at 05:05

score 3 · Accepted Answer · answered May 08 '17 at 23:03

The problem is that an arc of radius 1 from one coordinate (call it A) which starts at angle X and ends at angle Y will assume that A is at angle of X on the circumference of a circle with radius 1.

So your first arc assumes that (0,0) is at zero degrees on the circumference of a circle with radius 1. This means the centre of the circle must be at (-1,0).

But your second arc assumes that (1,0) is at 120 degrees on the circumference of a circle with radius 1. So the centre must be at (1.5,{.5*(sqrt(3))}.

Finally, your third arc assumes that (0,0) is at 240 degrees on the circumference of a circle with radius 1. So the centre must be at ({cos(60)},{sin(60)}).

[On the improbable assumption that I've not messed up the geometry at this hour of the night.]

I suggest using polar coordinates instead. Then your arcs can start at (0:1), (120:1) and (240:1) which makes things much simpler.

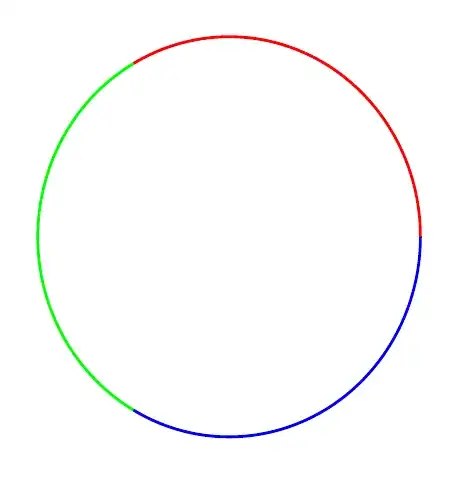

\documentclass[border=10pt,tikz]{standalone}
\begin{document}
\begin{tikzpicture}
  \draw [red] (0:1) arc [radius=1, start angle=0, end angle=120];
  \draw [green] (120:1) arc [radius=1, start angle=120, end angle=240];
  \draw [blue] (240:1) arc [radius=1, start angle=240, end angle=360];
\end{tikzpicture}
\end{document}

+1 for the explanation and for having read the question carefully! — CarLaTeX, May 09 '17 at 05:02
