I have written title page as below:

\title{
    {\textbf{Structural Health Assessment\\
of Railway Bridges\\
 Using Computational Intelligence Techniques}
}
\author{\textbf{Sitesh Kumar Singh}\\
\vspace{.6cm}
 (Roll No.: 15CE91S02) \\
 \vspace{.6cm}
 Under the Supervision of \\
 \textbf{Prof. Nirjhar Dhang}
}\\
\vspace{1cm}
    {\includegraphics{university.jpg}\\
    {\large Department of Civil Engineering,\\
Indian Institute of technology, Kharagpur
}}
}

In the output pdf file 'image and department name' is placed in the middle of page whereas I want them to be at the bottom of the page as has been written above. Please help.

Troy
  • 13,741
  • 1
    You didn't provide any information about page layout and used document class, so you left us guessing :-(. For example, try replace \vspace{1cm} with \vfill. It could help. Welcome to TeX.SE! – Zarko May 09 '17 at 17:48
  • 1
    BTW, you don't HAVE to use \maketitle to format a title page. See https://tex.stackexchange.com/questions/273868/size-and-position-of-boxes-in-title-page/273885?s=3|2.1111#273885 for example. – John Kormylo May 09 '17 at 17:49

1 Answers1

2

A solution with the titling package (remove the showframe option of geometry for the final version):

\documentclass[a4paper,12pt]{report}
\usepackage[utf8]{inputenc}
\usepackage[T1]{fontenc}
\usepackage{lmodern}
\usepackage[vmargin=2.5cm, textwidth=15cm, bindingoffset=6mm, showframe]{geometry}
\usepackage{graphicx}
\graphicspath{{images/}}
\usepackage{float}
\usepackage{setspace}
\usepackage{titling}
\renewcommand\maketitlehooka{}
\pretitle{\begin{center}\bfseries\Large \onehalfspacing}
\title{Structural Health Assessment\\
of Railway Bridges\\
 Using Computational Intelligence Techniques}%
\posttitle{\end{center}}
\preauthor{\bfseries\large\vspace{3.5cm}}
 \author{Sitesh Kumar Singh}%\\
 \postauthor{%
 \normalfont
\smallskip\par
 (Roll No.: 15CE91S02)\vspace{1.5cm} \\
Under the Supervision of\\[1ex]
\textbf{Prof. Nirjhar Dhang}
}

\date{}

\renewcommand\maketitlehookd{\vfill\centering\fbox{\includegraphics[scale=0.5]{kgp}}}

\begin{document}

\begin{titlingpage}
\setlength\droptitle{10ex}

\setlength{\parindent}{0pt} %\centering \maketitle\clearpage \end{titlingpage}

\end{document}

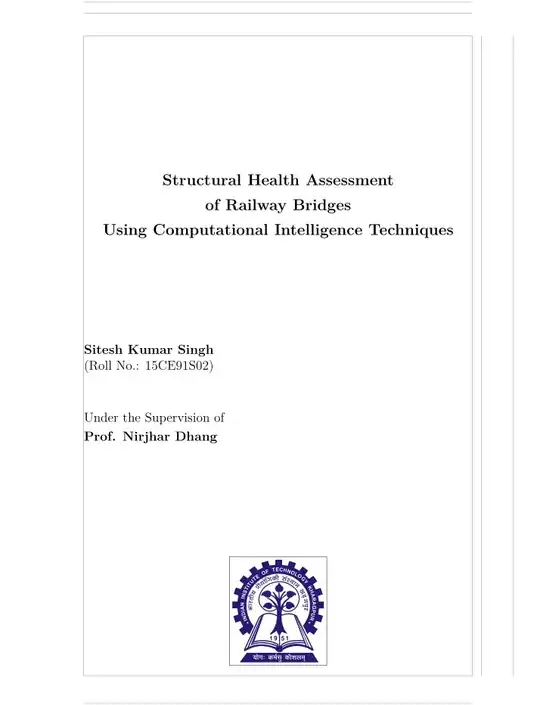

enter image description here

Bernard
  • 271,350
  • Thank you so much Bernard Sir for the help!! But except top title my other details are getting left aligned. I am using following packages: – Sitesh Singh May 10 '17 at 03:36
  • \documentclass[12pt, twoside]{report} \usepackage[utf8]{inputenc} \usepackage{graphicx} %Allows to import images \usepackage{float} %Allows for control of float positions \graphicspath{ {images/} } \usepackage[a4paper,width=150mm,top=25mm,bottom=25mm,bindingoffset=6mm]{geometry} – Sitesh Singh May 10 '17 at 03:37
  • May kindly look into please, if possible...Regards, Sitesh – Sitesh Singh May 10 '17 at 03:38
  • @Sitesh Singh: I've redone the layout according to your indications. I supposed the logo had to remain centred, though. Hope I'm not wrong. Anyway it's easy to change. – Bernard May 10 '17 at 08:49
  • Thanks a lot Bernard Sir! Your suggestion was exactly what I needed. I am grateful to you for the prompt help!! – Sitesh Singh May 27 '17 at 07:25
