two questions about simple diagram

Question

\documentclass{amsart}
\usepackage{tikz-cd}

\begin{document}

\begin{tikzpicture}[baseline= (a).base][>=stealth,>=implies]
\node[scale=1.4] (a) at (0,0){
\begin{tikzcd}
    \text{(a)}  \rar[Leftrightarrow]
    & [1.8em] \text{(b)}
    & [2em]  \text{(c)}\lar[Leftarrow]\arrow[ddl,Rightarrow]\footnotesize\text{(i,ii, or iii)}\\
    & \vspace{-5mm}  \\&\text{\hspace{1mm}(b)$^\prime$}\arrow[uu,Leftrightarrow]
    \end{tikzcd}
};
\end{tikzpicture}

\end{document}

produces this:

Questions:

(1) How can I make the diagonal arrow start at (c), as it normally would without "(i,ii, or iii)"?

(2) The arrow from (b) to (c) needs a line through the center, similar to what $\centernot\implies$ produces:

(1) A dirty solution could be add & \hspace{-3em} before of "(i,ii, or iii)" — Fran, May 31 '17 at 06:36
@Fran that works perfectly! Now I just need an answer to (2) — Forever Mozart, May 31 '17 at 06:45
@Fran For (1) I think \arrow[ddl,Rightarrow,start anchor=south west] is better. (I'm working on the second point). — CarLaTeX, May 31 '17 at 06:52
@CarLaTeX Sure, that's why I said "dirty" (I have little memory for the right anchor tikz syntax, and I did not have time to search it). BTW,+1 — Fran, May 31 '17 at 07:25
Since you have some responses below that seem to answer your question, please consider marking one of them as ‘Accepted’ by clicking on the tickmark below their vote count (see How do you accept an answer?). This shows which answer helped you most, and it assigns reputation points to the author of the answer (and to you!). It's part of this site's idea to identify good questions and answers through upvotes and acceptance of answers. — CarLaTeX, Jun 25 '17 at 14:17

CarLaTeX · Answer 1 · 2017-05-31T13:10:02.773

This is what I suggest to you:

use start anchor=south west option
put a / on the arrow (as a "fake" label, edit: egreg's answer make me realize that a simple / is enough, instead of an inverted \backslash as in my previous version).

By the way: why are you nesting a tikzcd (which is a tikzpicture) within another tikzpicture?

\documentclass{amsart}
\usepackage{tikz-cd}

\begin{document}

    \begin{tikzcd}
        \text{(a)}  \rar[Leftrightarrow]
        & [1.8em] \text{(b)}
        & [2em]  \text{(c)\footnotesize(i,ii, or iii)}\arrow[l, Leftarrow, "/" {yshift=7pt, scale=1.2}]
        \arrow[ddl,Rightarrow,start anchor=south west]\\
        & \vspace{-5mm}  \\&\text{\hspace{1mm}(b)$^\prime$}\arrow[uu,Leftrightarrow]
    \end{tikzcd}

\end{document}

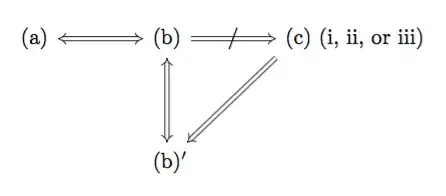

Output:

score 4 · Answer 2 · answered May 31 '17 at 11:05

You can use this answer by Percusse for the negated arrow:

\documentclass{amsart}
\usepackage{tikz-cd}
\usetikzlibrary{decorations.markings}
% https://tex.stackexchange.com/a/51024/
\tikzset{
  negated/.style={
    decoration={
      markings,
      mark=at position 0.5 with {\node[transform shape] (tempnode) {$/$};},
    },
    postaction={decorate},
  },
}
\begin{document}

\begin{tikzcd}[column sep=4em,row sep=4em,inner xsep=0pt]
\text{(a)} \arrow[r,Leftrightarrow] &
\text{(b)} \arrow[d,Leftrightarrow] \arrow[r,Rightarrow,negated] &
\text{(c) (i, ii, or iii)} \arrow[dl,Rightarrow,start anchor=south west] \\
& \text{(b)\makebox[0pt][l]{$'$}} % no width for the prime
\end{tikzcd}

\end{document}

Sometimes the simplest solution doesn't come to mind. I thought of \not (which didn't work well) but not of /. — CarLaTeX, May 31 '17 at 12:30
Thanks @CarLaTeX and egreg. Now my only problem is deciding which to use... — Forever Mozart, May 31 '17 at 21:26
