Splitting lines for long equations

Question

I am copying large formulas from a sympy session into Texmaker. These are along the lines of :

\documentclass[]{article}
\usepackage{amsmath}
\begin{document}
$$X''(x) = \left(- 2 C_{1} \sqrt{\lambda} \sin{\left (\sqrt{\lambda} x \right )} -
 C_{1} \lambda \cos{\left (\sqrt{\lambda} x \right )} +
 C_{1} \cos{\left (\sqrt{\lambda} x \right )} +
 2 C_{2} \sqrt{\lambda} \cos{\left (\sqrt{\lambda} x \right )} -
 C_{2} \lambda \sin{\left (\sqrt{\lambda} x \right )} +
 C_{2} \sin{\left (\sqrt{\lambda} x \right )}\right) e^{x}$$
\end{document}

Needless to say they overflow the page and this is not what I want. I want to see the whole formula beginning to end. I tried to break it up using the environment suggested by a previous question but this did no good:

\begin{equation*}
\begin{split}
X''(x) = \left(- 2 C_{1} \sqrt{\lambda} \sin{\left (\sqrt{\lambda} x \right )} -
 C_{1} \lambda \cos{\left (\sqrt{\lambda} x \right )} \\
+ C_{1} \cos{\left (\sqrt{\lambda} x \right )} +  2 C_{2} \sqrt{\lambda} \cos{\left (\sqrt{\lambda} x \right )} - \\
C_{2} \lambda \sin{\left (\sqrt{\lambda} x \right )} + C_{2} \sin{\left (\sqrt{\lambda} x \right )}\right) e^{x}\
\end{split}
\end{equation*}

The above threw about 20 errors on the line with \end{split}. This is strange because the following:

\begin{equation*}
\begin{split}
F = a+b+c- \\ & d+e+f+d- \\
  e+f+g \
\end{split}
\end{equation*}

Worked just fine. Somebody please help with this. I have been searching for a solution about 2 hours now with no success. A real pain....

Answer 1

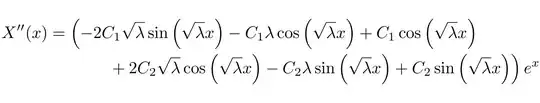

If you need something you can simply throw the sympy-produced equations into, then you can try breqn package. It handles all \lefts and \rights automatically, but, as expected, it will not do wonders and the output will never be as good as a manually tuned one. It also has some clashes which you have to take care of.

\documentclass{article}
\usepackage{amsmath}
\usepackage{breqn}
\begin{document}

\begin{dmath*}
X''(x) = \left(- 2 C_{1} \sqrt{\lambda} \sin{\left (\sqrt{\lambda} x \right )} -
 C_{1} \lambda \cos{\left (\sqrt{\lambda} x \right )} +
 C_{1} \cos{\left (\sqrt{\lambda} x \right )} +
 2 C_{2} \sqrt{\lambda} \cos{\left (\sqrt{\lambda} x \right )} -
 C_{2} \lambda \sin{\left (\sqrt{\lambda} x \right )} +
 C_{2} \sin{\left (\sqrt{\lambda} x \right )}\right) e^{x}
\end{dmath*}

\end{document}

Answer 2

Some comments:

• The macros \sin and \cos don't take arguments. Writing \sin{...} doesn't generate an error, but it doesn't generate anything good either (and it does create code clutter).

• Get rid of all \left and \right sizing instructions. They're not needed, and the outermost pair is going to create a syntax error once you introduce a line break.

• Load the amsmath package and use an align* environment to typeset the equation over two lines.

• I'd give more prominence to the e^{x} term, by placing it first rather than dead-last.

\documentclass{article}
\usepackage{amsmath}
\begin{document}
\begin{align*}
X''(x) &= e^{x} \bigl[ - 2 C_{1} \sqrt{\lambda} \sin (\sqrt{\lambda} x)
          - C_{1} \lambda \cos (\sqrt{\lambda} x)
          + C_{1} \cos (\sqrt{\lambda} x) \\
  &\qquad +  2 C_{2} \sqrt{\lambda} \cos(\sqrt{\lambda} x)
          - C_{2} \lambda \sin(\sqrt{\lambda} x)
          + C_{2} \sin(\sqrt{\lambda} x)\bigr]
\end{align*}
\end{document}

Answer 3

Just remove all \left and \right commands. They are not only the cause for the error (you cannot have \left in one row and the matching \right in another), but they make for too big parentheses.

\documentclass{article}
\usepackage{amsmath}

\begin{document}

\begin{equation*}
\begin{split}
X''(x) = (- 2 C_{1} \sqrt{\lambda} \sin{ (\sqrt{\lambda} x  )} -
 C_{1} \lambda \cos{ (\sqrt{\lambda} x  )} \\
+ C_{1} \cos{ (\sqrt{\lambda} x  )} +  2 C_{2} \sqrt{\lambda} \cos{ (\sqrt{\lambda} x  )} - \\
C_{2} \lambda \sin{ (\sqrt{\lambda} x  )} + C_{2} \sin{ (\sqrt{\lambda} x  )}) e^{x}\
\end{split}
\end{equation*}

\end{document}

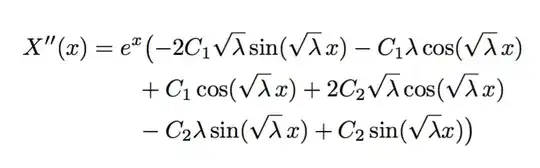

Now, let's improve this display.

\documentclass{article}
\usepackage{amsmath}

\begin{document}

\begin{equation*}
\begin{split}
X''(x) &= e^x\bigl(
          - 2C_{1}\sqrt{\lambda}\sin(\sqrt{\lambda}\,x) - C_{1}\lambda\cos(\sqrt{\lambda}\,x) \\
  &\qquad + C_{1}\cos(\sqrt{\lambda}\,x) + 2C_{2}\sqrt{\lambda}\cos(\sqrt{\lambda}\,x) \\
  &\qquad - C_{2}\lambda\sin(\sqrt{\lambda}\,x) + C_{2}\sin(\sqrt{\lambda}x)
\bigr)
\end{split}
\end{equation*}

\end{document}

Answer 4

It can fit on two lines. Here are two other solutions:

\documentclass{article}
\usepackage{mathtools}
\usepackage{showframe}
\renewcommand\ShowFrameLinethickness{0.3pt}

\begin{document}

\begin{multline*}
  X''(x) = e^x\bigl(
  - 2C_{1}\sqrt{\lambda }\sin(\sqrt{\lambda }\,x) - C_{1}\lambda \cos(\sqrt{\lambda }\,x)
  + C_{1}\cos(\sqrt{\lambda }\,x) \\+ 2C_{2}\sqrt{\lambda }\cos(\sqrt{\lambda }\,x) - C_{2}\lambda \sin(\sqrt{\lambda }\,x) + C_{2}\sin(\sqrt{\lambda }x)
  \bigr)
\end{multline*}

\begin{align*}
  X''(x)= e^x\bigl(\mkern-4mu
   & -\mkern-4mu 2C_{1}\sqrt{\lambda }\sin(\sqrt{\lambda }\,x) - C_{1}\lambda \cos(\sqrt{\lambda }\,x) +C_{1}\cos(\sqrt{\lambda }\,x) \\
   & + 2C_{2}\sqrt{\lambda }\cos(\sqrt{\lambda }\,x) -C_{2}\lambda \sin(\sqrt{\lambda }\,x) + C_{2}\sin(\sqrt{\lambda }x) \bigr)
\end{align*}

\end{document}

Added:

Following @Mico's suggestion, we also may have this variant of the second alignment, with a simpler code:

\begin{align*}
  X''(x)= e^x\bigl(
  -2 & C_{1}\sqrt{\lambda }\sin(\sqrt{\lambda }\,x) - C_{1}\lambda \cos(\sqrt{\lambda }\,x) +C_{1}\cos(\sqrt{\lambda }\,x) \\
  {} + 2&C_{2}\sqrt{\lambda }\cos(\sqrt{\lambda }\,x) -C_{2}\lambda \sin(\sqrt{\lambda }\,x) + C_{2}\sin(\sqrt{\lambda }x) \bigr)
\end{align*}
