How to draw a 2D array with indices on top?

Question

Right now, I have the code below that makes this

However, I'd like to do two things. One, change the indices to be on over the boxes instead of under. Two, add more rows so that this is a 2D array, hopefully with different amount of spacing in between the rows and columns.

Basically, I want this but where every row is different.

Any help is appreciated!

\documentclass{article}
\usepackage{tikz}
\usetikzlibrary{calc}

\newcounter{index}

\begin{document}

\begin{figure}
\centering
  \begin{tikzpicture}
    \setcounter{index}{0}
    \coordinate (s) at (0,0);
    \foreach \num in {3, 1, 4, 1, 5}{
      \node[minimum size=6mm, draw, rectangle] at (s) {\num};
      \node at ($(s)-(0,0.5)$) {\theindex};
      \stepcounter{index}
      \coordinate (s) at ($(s) + (1,0)$);
    }
  \end{tikzpicture}
  \label{fig:testArray}
\end{figure}

\end{document}

Since you have some responses below that seem to answer your question, please consider marking one of them as ‘Accepted’ by clicking on the tickmark below their vote count (see How do you accept an answer?). This shows which answer helped you most, and it assigns reputation points to the author of the answer (and to you!). It's part of this site's idea to identify good questions and answers through upvotes and acceptance of answers. — samcarter_is_at_topanswers.xyz, Jan 03 '18 at 23:46

score 6 · Answer 1 · answered Aug 15 '17 at 09:01

This solution is similar to Zarko's one, but uses only one matrix. The first row is used for column enumerating and all other rows are the real matrix contents. As we want all nodes with border except for the first row, a special style has been defined: row 1/.style={nodes={draw=none}}.

Distance between columns and row is declared with col sep and row sep, but it can be changed with an special command: [value] in first row elements or after end of row declaration: \\. In following code there are some examples, two of them just to show its effect, but [-3mm] after first row has been used to compensate the size of first row nodes and make them look like a label.

\documentclass[tikz, border=1em]{standalone}
\usetikzlibrary{matrix, positioning}

\begin{document}
\begin{tikzpicture}
\matrix (m) [matrix of nodes,
             nodes={draw, minimum size=8mm},
             column sep=3mm,
             row sep=2mm,
             row 1/.style={nodes={draw=none}}]
{
0 & 1 & 2 &[5mm] 3 & 4   \\[-3mm]
9 & 2 & 4 & 4 & 5   \\
8 & 3 & 3 & 5 & 5   \\
7 & 4 & 2 & 7 & 5   \\[3mm]
6 & 5 & 1 & 1 & 5   \\
5 & 6 & 0 & 2 & 5   \\
};
\end{tikzpicture}
\end{document}

Zarko · Accepted Answer · 2017-08-15T18:11:00.073

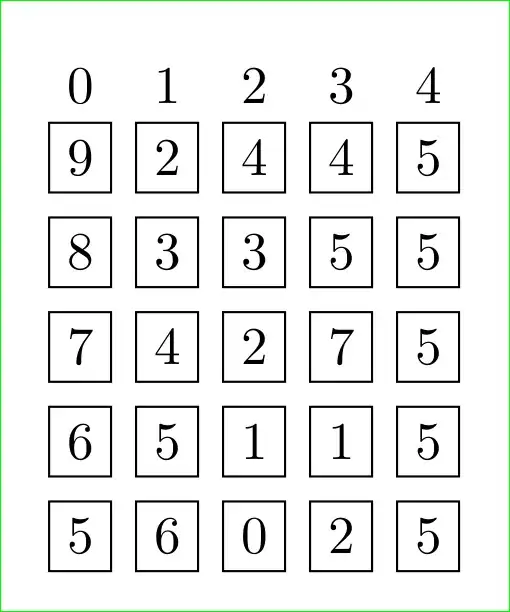

just a part of image for the case if the node contents is prescribed. with use of matrix:

\documentclass{article}
\usepackage{tikz}
\usetikzlibrary{matrix, positioning}

\usepackage[active,floats, tightpage]{preview}
    \setlength\PreviewBorder{1em}

\begin{document}
    \begin{figure}
\centering
  \begin{tikzpicture}
\matrix (m) [matrix of nodes,
             nodes={minimum size=8mm},
             column sep=4mm]
{
0 & 1 & 2 & 3 & 4   \\
};
\matrix (n) [below=-3mm of m,
             matrix of nodes,
             nodes={draw, minimum size=8mm},
             column sep=4mm,
             row sep=2mm]
{
9 & 2 & 4 & 4 & 5   \\
8 & 3 & 3 & 5 & 5   \\
7 & 4 & 2 & 7 & 5   \\
6 & 5 & 1 & 1 & 5   \\
5 & 6 & 0 & 2 & 5   \\
};
\end{tikzpicture}
    \label{fig:testArray}
    \end{figure}
\end{document}

addendum: inspired by Ignasi answer and his question question. now with one matrix and indices as labels of nodes in the first row::

\documentclass[tikz, margin=3mm]{standalone}
\usetikzlibrary{matrix}

\begin{document}
\begin{tikzpicture}

\matrix [matrix of nodes,
         nodes = {draw,  minimum size = 2ex},
         column sep=1ex, row sep=1ex,
         row 1/.style={execute at begin cell= {|[label=\pgfmathparse{int(\the\pgfmatrixcurrentcolumn-1)}\pgfmathresult]|}}
         ]
{
9 & 2 & 4 & 4 & 5   \\
8 & 3 & 3 & 5 & 5   \\
7 & 4 & 2 & 7 & 5   \\
6 & 5 & 1 & 1 & 5   \\
5 & 6 & 0 & 2 & 5   \\
};
\end{tikzpicture}
\end{document}
