How to add only part name to list of figures

Question

I'm using \documentclass[12pt,a4paper,twoside]{report} for making a report.

The entire report is divided into two parts. Each part contains chapters. The sample index is as follows.

List of Figures

List of Tables

Part I A

Chapter 1

1.1

Chapter 2

2.1

Part II B

Chapter 1

1.1

Chapter 2

2.1

In the list of figures and list of tables portions, I want to add only the part name in as shown below.

List of Figures

Part I A

1.1 Caption of Figure

2.1 Caption of Figure

Part II B

1.1 Caption of Figure

2.1 Caption of Figure

Please give me necessary solutions to do it.

Welcome to TeX.SX! Please help us (and also you) and add a minimal working example (MWE), that illustrates your problem. - Related:Splitting list of figures — Bobyandbob, Aug 28 '17 at 06:59
Questions seeking debugging help ("why isn't this code working?") must include the desired behavior, a specific problem or error and the shortest code necessary to reproduce it in the question itself. Questions without a clear problem statement are not useful to other readers. See minimal working example (MWE). — Henri Menke, Aug 28 '17 at 07:34

score 2 · Answer 1 · 2017-08-28T19:23:46.390

A patch answer by changing \@part a little bit and explicitly adding \addcontentsline with lof instead of toc again.

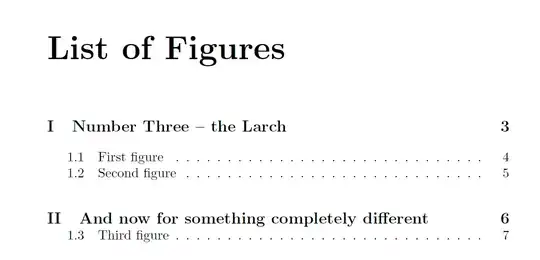

I have kept the vertical chapter gap in the LoF in order make the elements of figures origination from different chapters more outstanding.

\documentclass{report}

\usepackage{xpatch}
\makeatletter
\xpatchcmd{\@part}{%
  \markboth{}{}% Find a hook in order to append content.
}{%
  \markboth{}{}%
  \ifnum\c@secnumdepth>-2\relax
  \addcontentsline{lof}{part}{\thepart\hspace{1em}#1}%
  \else
  \addcontentsline{lof}{part}{#1}%
  \fi
}{\typeout{Success}}{\typeout{Patch failure}}
\makeatother

\usepackage{hyperref}

\begin{document}
\tableofcontents
\listoffigures

\part{Number Three -- the Larch}



\chapter{A dummy chapter}
\begin{figure}

\caption{First figure}

\end{figure}


\begin{figure}

\caption{Second figure}

\end{figure}

\part{And now for something completely different}

\begin{figure}

\caption{Third figure}

\end{figure}


\end{document}

score 1 · Answer 2 · answered Aug 28 '17 at 07:11

I adjusted this answer to include the parts and not the chapters in the list of figures:

\documentclass[12pt,a4paper,twoside]{report}
\usepackage{etoolbox}

\makeatletter
\def\thisparttitle{}
\def\thispartnumber{}
\newtoggle{noFigs}
\apptocmd{\@part}{\gdef\thisparttitle{#1}\gdef\thispartnumber{\thepart}\global\toggletrue{noFigs}}{}{}
\AtBeginDocument{\AtBeginEnvironment{figure}{%
  \iftoggle{noFigs}{
    \addtocontents{lof}{\protect\contentsline{part}{\protect\numberline{\thispartnumber}{\thisparttitle}}{}{}}
    \global\togglefalse{noFigs}
  }{}
}}
\makeatother

\begin{document}

\listoffigures

\part{A}
\chapter{First}
\begin{figure}[h]
    \caption{Caption of first figure}
\end{figure}
\chapter{Second}
\begin{figure}[h]
    \caption{Caption of second figure}
\end{figure}

\part{B}
\chapter{First}
\begin{figure}[h]
    \caption{Caption of third figure}
\end{figure}
\chapter{Second}
\begin{figure}[h]
    \caption{Caption of fourth figure}
\end{figure}

\end{document}

How to add only part name to list of figures
