Problems of .pdf format graphic or image when using htlatex to convert .tex to html

Question

Recently I have worked on converting .tex to .html. I have solved a lot of problems with the help of @michal.h21. the last question is about the image problem.

I use the MiKTeX system, it is basic-miktex-2.9.6361-x64 from miktex2.9, and installed on a Windows 7 system.

The code I use is the following:

\documentclass[12pt]{article}


\usepackage{subfigure}
\usepackage{graphicx}

\begin{document}

The main problem here is as listed: 1, the figure can not be changed well engough, 2 the tabe is also not so good 3, espeially is the refrence list that can not be listed one by one.
speccial character test.

\begin{figure}[h]
\centering
\subfigure[]{
\includegraphics[width=0.45 \textwidth]{pdffigure//AAA.pdf}
\label{AAA}
}
\subfigure[]{
\includegraphics[width=0.45 \textwidth]{pdffigure//BBB.pdf}
\label{BBB}
}
\caption{(a) is the picuture to be tested (b) is the picture to be tested.}
\label{Emission}
\end{figure}


The figure is in figure \ref{AAA}. And also the picuture b is also tested in figure \ref{BBB}.

\end{document}

pdffigure is the folder I put all the figures.

I use the command as below

htlatex Test.tex

However, the figure is not correctly displayed. But if I change the .pdf figures to .eps figures, there will be no errors.

So the result is like the figure above. I have tried a lot of configuration from stackexchange, but it does work so well. It seems if the system is TeX Live distrubtion, there is no such errors. However, now I used a different system.

PS, this up and down problems could be solved by one post solving the up and down display. But still this can not solve the .pdf suffix problem.

Anyone has some suggestions?

Answer 1

The PDF support have been added to tex4ht last week, so it should work if you update your TeX distribution. If you can't update it, you can use the following configuration file, which is modified version of the code added to the tex4ht core:

\Preamble{xhtml}

\NewConfigure{PdfConvert}{2}
\makeatletter
\catcode`\:=11

\edef\svg@ext{.svg}
\ifx\PictExt\svg@ext
\Configure{PdfConvert}{svg}{"pdf2svg '\Gin@base.pdf' '\Gin@base-\Gin@page.\a:PdfConvert' \Gin@page"}
\else
\Configure{PdfConvert}{png}{"rungs -q -dNOPAUSE -dBATCH -sDEVICE=pngalpha -r300 \ifx\Gin@page\@empty\else -dFirstPage='\Gin@page'  -dLastPage='\Gin@page'\fi\space -sOutputFile='\Gin@base-\Gin@page.\a:PdfConvert' \Gin@base.pdf"}
\fi
\Configure{graphics*}
   {pdf}
   {\ifdefined\Gin@page\else\def\Gin@page{1}\fi%
   \Needs{\b:PdfConvert}%
   \edef\svg:filename{\Gin@base-\Gin@page.\a:PdfConvert}
   {\Configure{Needs}{File: \svg:filename}\Needs{}}%
   \Picture[\a:GraphicsAlt]{{\svg:filename} \csname a:Gin-dim\endcsname
}}
\catcode`\:=12
\makeatother
\begin{document}

\EndPreamble

It converts pdf to png by default. It also supports svg conversion, which can be requested using the svg option, but you need pdf2svg command installed on your system for this support.

It is also important to create special files with image dimension for all pictures, in order to get correct size of the images. It can be done using command

ebb -x pdffigure/*.pdf

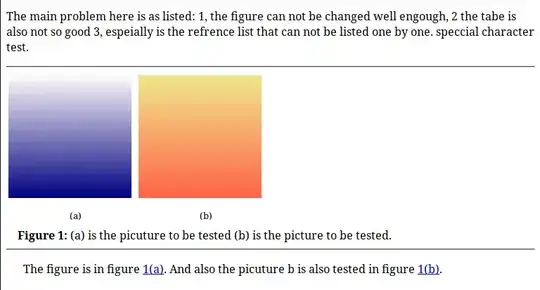

This is the result with some dummy images:

Answer 2

I worked on the "'rungs' is not recognized" problem and found that the Ghost Script command varies from one operating system to another. The Linux and Windows commands are:

• Linux: gs
• Windows:mgs

Also, I realized that it is more appropriate to use the double quoting to define the -sOutputFIle, i.e. "\Gin@base-.\a:PdfConvert" instead of '\Gin@base-\Gin@page.\a:PdfConvert'. Then the following config file script worked fine for me on a linux operating system:

\Preamble{xhtml}

\NewConfigure{PdfConvert}{2}
\makeatletter
\catcode`\:=11

\edef\svg@ext{.svg}
\ifx\PictExt\svg@ext
\Configure{PdfConvert}{svg}{"pdf2svg '\Gin@base.pdf' '\Gin@base-\Gin@page.\a:PdfConvert' \Gin@page"}
\else
\Configure{PdfConvert}{png}{"gs -q -dNOPAUSE -dBATCH -sDEVICE=pngalpha -r300 \ifx\Gin@page\@empty\else -dFirstPage='\Gin@page'  -dLastPage='\Gin@page'\fi\space -sOutputFile="\Gin@base-.\a:PdfConvert" \Gin@base.pdf"}
\fi
\Configure{graphics*}
{pdf}
{\ifdefined\Gin@page\else\def\Gin@page{1}\fi%
\Needs{\b:PdfConvert}%
\edef\svg:filename{\Gin@base-\Gin@page.\a:PdfConvert}
{\Configure{Needs}{File: \svg:filename}\Needs{}}%
\Picture[\a:GraphicsAlt]{{\svg:filename} \csname a:Gin-dim\endcsname
}}
\catcode`\:=12
\makeatother
\begin{document}

\EndPreamble

With this code in a file named my.cfg on the TeX folder you can run:

htlatex theTexFile my

Hope it could help ;)
