How do I add arguments in xparse?

Question

I have this code (based on Andrew's answer at How can I use rotate inside a defined TikZ command?).

\documentclass{amsart}
\usepackage{tikz}
\usetikzlibrary{calc}
\usepackage{xparse}
\NewDocumentCommand\Triangle{ O{} r()}{% Syntax: [draw options] (lefthand endpoint
  \draw[#1] (#2) node{$\bullet$} -- ++(1,1.5) node{$\bullet$};
  \draw[#1] (#2) -- ++(2,0) node{$\bullet$};
  \draw[#1] ($(#2)+(1,1.5)$) -- ++(1,-1.5);
}
\begin{document}
  \begin{center}
    \begin{tikzpicture}
        \Triangle[rotate=30](0,0);
        \Triangle[rotate=-10](2.5,0);
        \Triangle(5,0);
    \end{tikzpicture}
  \end{center}
\end{document}

Now I would like to add three more arguments as names replacing the bullets at the vertices. I have tried to follow the instructions on several blogs plus in the xparse documentation and i cannot get it to work. I'm sure the right way is simple once you know it. Can someone show it to me?

Assuming that they are mandatory arguments, \NewDocumentCommand\Triangle{ O{} r() m m m }{....macro code...}. (The space between the letters is for clarity only, it is not required.) Then you would have #1, #2, ..., #5 at your disposal in the macro code. — , Jan 10 '18 at 15:50
If you only have one optional argument at the beginning, \newcommand can handle that. — John Kormylo, Jan 10 '18 at 16:28
@JohnKormylo But it can't handle the () delimited first argument. — Torbjørn T., Jan 10 '18 at 18:31
I'm not sure what is really going into your \Triangle-like macros but another approach is to define a tikz pic, as described in section 18.2 of the tikz manual. There are many examples of these on TeX.SX such as my post https://tex.stackexchange.com/questions/408833/how-do-i-draw-the-following-triangles-in-latex/408838#408838, which defines a possibly relatedpic for drawing some triangles. — , Jan 11 '18 at 09:25

score 6 · Accepted Answer · 2018-01-11T00:13:36.667

To expand my comment: you can do the following:

\documentclass{amsart}
\usepackage{tikz}
\usetikzlibrary{calc}
\usepackage{xparse}
\NewDocumentCommand\Triangle{ O{} mmm r()}{
  % Syntax: [draw options]{node1}{node2}{node3}(lefthand endpoint)
  \draw[#1] (#5) node{$#2$} -- ++(1,1.5) node{$#3$};
  \draw[#1] (#5) -- ++(2,0) node{$#4$};
  \draw[#1] ($(#5)+(1,1.5)$) -- ++(1,-1.5);
}
\begin{document}
  \begin{center}
    \begin{tikzpicture}
        \Triangle[rotate=30]{A}{B}{C}(0,0);
        \Triangle[rotate=-10]{D}{E}{F}(2.5,0);
        \Triangle{G}{H}{I}(5,0);
    \end{tikzpicture}
  \end{center}
\end{document}

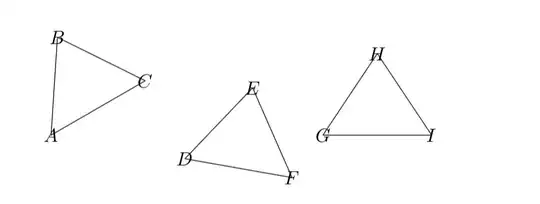

to produce:

The arguments to \Triangle are specified as O{} mmm r(). In order, these mean:

O{} says that #1 is an optional argument, that is given as [#1], and which defaults to "nothing". This is used to give an optional argument to \draw via \draw[#1]
mmm says that #2, #3 and #4 are mandatory arguments (this could also be specified as m m m etc)
r() says that #5 is a required/mandatory argument that must be given in the form (#5)
