How do I put an image on the left of right-aligned text

Question

I'm trying to add an image to the top left corner of a page (inside the margins) in LaTeX. Across from the image I want a set of right-aligned text. I tried using two columns but the image is smaller than the text and it breaks up some of the longer lines of text. Didn't seem to be able to make columns of different width with the multicol package.

Here is an example of what I want (made in open office):

What I want

Possible duplicate: Text (preferably centered with the first line in bold) to the side of included graphics in LaTeX — Werner, Jan 16 '12 at 21:19

score 39 · Accepted Answer · edited Jun 09 '17 at 15:31

39

Use two minipages next to each other:

\documentclass[12pt]{article}

\usepackage[pass,showframe]{geometry}% just to show the page margins

\usepackage[demo]{graphicx}% remove demo option in actual document

\begin{document}
\noindent\begin{minipage}{0.3\textwidth}% adapt widths of minipages to your needs
\includegraphics[width=\linewidth]{yourimage}
\end{minipage}%
\hfill%
\begin{minipage}{0.6\textwidth}\raggedleft
Yesterday,\\
all my troubles seemed so far away\\
Now it looks as though they're here to stay\\
Oh, I believe in yesterday.
\end{minipage}
\end{document}

Here's another screenshot with \fboxes around the minipages and with \dotfill instead of \hfill to make it more obvious how this is constructed. (You wouldn't ever use this in an actual document, obviously.)

edited Jun 09 '17 at 15:31

samcarter_is_at_topanswers.xyz

158,329

answered Jan 16 '12 at 21:14

doncherry

54,637

This would be a nice example to show the benefit of microtype ... :) – doncherry Jan 16 '12 at 21:32
Thanks very much, this worked perfectly! Just learning TeX this last few days. – s0rce Jan 16 '12 at 21:37
2

@LyleGordon: Glad I could help, you've come to the right place when looking for help or just for new things to learn. In case you don't know it already, I highly recommend The Not So Short Introduction to LaTeX2e, which is where I started. Section 6.6 is about minipage and friends ... – doncherry Jan 16 '12 at 21:40

score 7 · Answer 2 · answered Sep 10 '16 at 14:48

7

Use minipage. Put each section inside a minipage and specify the required linewidth for each. Example:

\begin{document}
\begin{minipage}{0.3\textwidth}
\includegraphics[width=\linewidth]{expectation.PNG}
\end{minipage}
\begin{minipage}{0.6\textwidth}\raggedleft
This test is supposed\\
to be algnes\\
to left\\
\end{minipage}
\noindent
\\

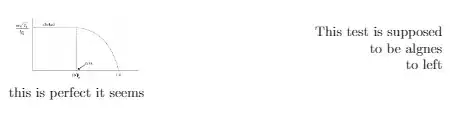

this is perfect it seems

answered Sep 10 '16 at 14:48

Ajmal Moochingal

71

oops! if it's to be aligned to the left, you mean \raggedright. (welcome to tex.sx.) – barbara beeton Sep 10 '16 at 14:57
