Adding page numbers in absolute position (fancyhdr, tikz)

Question

I've been playing with the design of a letterhead class for our department. We want two pictures on the header, with a line under it; and the address on the footer, with a line over it. Here is a MWE that works OK:

mwe.cls:

% Class declaration
\NeedsTeXFormat{LaTeX2e}
\ProvidesClass{mwe}
\DeclareOption*{\PassOptionsToClass{\CurrentOption}{letter}}
\ProcessOptions \relax
\LoadClass{letter}

% Packages
\RequirePackage{tikz}
\RequirePackage{graphicx}
\RequirePackage[utf8]{inputenc}
\RequirePackage[brazil]{babel}
\RequirePackage[a4paper,left=1.9cm,right=1.9cm,top=3.2cm,bottom=3.3cm,headheight=56pt,headsep=0.1in]{geometry}
\RequirePackage{fancyhdr}
\RequirePackage{xcolor}

% Colors
\definecolor{xLine}{rgb}{.58,.80,.87}
\definecolor{xAddr}{rgb}{.19,.52,.61}

% Change width and color of the lines under header and over footer
\renewcommand{\headrulewidth}{2pt}
\renewcommand{\headrule}{\hbox to\headwidth{\color{xLine}\leaders\hrule height \headrulewidth\hfill}}
\renewcommand{\footrulewidth}{2pt}
\renewcommand{\footrule}{\hbox to\headwidth{\color{xLine}\leaders\hrule height \footrulewidth\hfill}}


\fancypagestyle{plain}{
  \fancyhf{}
  \lhead{\includegraphics[height=1.5cm]{logo1.png}\vspace{-3mm}}
  \rhead{\includegraphics[height=1.5cm]{logo2.png}\vspace{-3mm}}
  \fancyfoot[C]{
  \color{xAddr}\small\vspace{-3mm}
  Our Department\\
  Our University\\
  Our Address -- a longer line\\
  Our phone number -- Our e-mail}
}

\pagestyle{plain}

I've added some images to the header, just in case here they are:

mwe.tex:

\documentclass[12pt]{mwe}
\usepackage{lipsum}
\begin{document}
\begin{Large}Yay, a document!\end{Large}
\lipsum[3-12]
\end{document}

Two runs with pdflatex gives this:

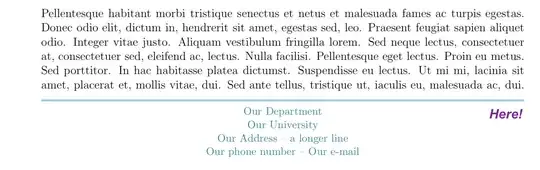

Looking good! But now I want to add a number to each page. I could add a \thepage in any position on the footer, but I'd rather have the number on the right side of the footer:

Based on TikZ full page with absolute node positioning I've tried to define a tikz figure with

\newcommand{\mypagenumber}{
\begin{tikzpicture}[remember picture,overlay]
 \node[anchor=north,minimum height=0.7cm, minimum width=2cm] (names)
   at ([xshift=8.5cm,yshift=3cm]current page.south) {\color{xLine}\Large\thepage};
\end{tikzpicture}}

and this to the definition of \fancypagestyle

  \chead{\mypagenumber} % Why not? as long as it appears on every page

(added these to mwe.cls)

Results are almost what I want: pages 1-9 looks OK:

But as soon as I get two digits on the number page alignment gets bad:

Finally, here are the questions:

How can I define my tikzpicture so the number will be right-aligned with the horizontal line over the footer, even if I change the text size or font?
Is it possible to define the values (anchors, shifts, etc.) in tikzpicture in such a way that if I change the page margins or paper size I don't need to change these values? E.g. is it possible to make the tikzpicture position relative to the line over the footer?
It works but it seems a ugly hack, is there a better/simpler/more robust way?

EDIT -- UPDATE

Here's something that works (based on a different tikz issue in Left and right align inside one TiKZ rectangular node):

\newcommand{\mypagenumber}{
\begin{tikzpicture}[remember picture,overlay]
 \node[fill=gray!20,anchor=north,minimum height=0.7cm,
       text width=3cm,align=flush right] (names)
   at ([xshift=6.97cm,yshift=3cm]current page.south)
   {\color{xLine}\hfill\Large\bf\thepage};
\end{tikzpicture}}

There is a gray background to help visualize the alignment:

Still questions 2 and 3 remain, I had to adjust the xshift parameter until I got the results I wanted -- not sure it is robust. Any help appreciated.

Thanks, Rafael

Change anchor=north to anchor=north east. However, this probably isn't the best way to do it. (I mean, this method generally.) — cfr, Feb 04 '18 at 21:19
@ChristianHupfer: adding just a "left" changed the position of the text. I've fixed it through the xshift and yshift parameters but the problem is still there: the page numbers are not aligned to the right. — Rafael Santos, Feb 04 '18 at 22:25
Also tried align=flush left and align=flush right -- funny, no change at all. I'm searching for tikz align text inside node. — Rafael Santos, Feb 04 '18 at 22:32
For questions 2 and 3, you can try the tikzpagenodes package... — Paul Gaborit, Feb 04 '18 at 23:17
Obviously remove the xshift, too. If you want people to play with your code, provide a minimal working example which shows the problem. — cfr, Feb 05 '18 at 00:28
@PaulGaborit: tikzpagnodes made it much simpler. I still have to set xshift and yshift, but the values are related to the size of the node. I changed the page margins just to test and the page is still on the intended position. Thanks! — Rafael Santos, Feb 05 '18 at 01:18
Why did you go through all this trouble when you could have done just Our Department \hfill {\Large\thepage}\\? — , Feb 05 '18 at 08:45
I prefer to use tikzpagenodes and everypage for this sort of thing. See https://tex.stackexchange.com/questions/276358/text-on-background-image-footer-and-header/276453?s=6|23.5580#276453 — John Kormylo, Feb 05 '18 at 15:12
@joseph : "our department" is centered, with \hfill it gets flushed to the right and the page number flushed to the left. — Rafael Santos, Feb 05 '18 at 22:28
@RafaelSantos, you're right, but even then, ~\hfill Our Department \hfill \thepage solves it. — , Feb 05 '18 at 22:57
Using tikz for simple things like this is a waste of time. — , Feb 05 '18 at 23:14
@Joseph Two hfills may solve the problem but tikz allows more flexibility, from what I learned from the solutions and comments. And learning is seldom a waste of time. — Rafael Santos, Feb 06 '18 at 12:07
@RafaelSantos. Of course you may use whatever commands you prefer, it's just not strictly rational to overdo things when a simple solution fits your needs. Let's just agree to disagree. — , Feb 06 '18 at 13:32

score 2 · Accepted Answer · answered Feb 05 '18 at 11:59

What about this:

     \documentclass[12pt]{mwe}
     \usepackage{lipsum}
     \usepackage{tikzpagenodes}
     \newcommand{\mypagenumber}{
        \begin{tikzpicture}[remember picture,overlay]
        \node[fill=gray!20,anchor=east,minimum height=0.7cm,
        text width=3cm,align=flush right] (names)
        at (current page footer area.south east)
        {\color{xLine}\hfill\Large\bf\thepage};
        \end{tikzpicture}}
     \chead{\mypagenumber}
     \begin{document}
     \begin{Large}Yay, a document!\end{Large}
     \lipsum[3-120]
     \end{document}

When compiling the original first, I got an error message; it seems that

         \LoadClass{letter}

appears twice in mwe.cls.

Much better, got rid of the {x,y}shifts! Thanks! – Rafael Santos Feb 05 '18 at 22:26 — Rafael Santos, Feb 05 '18 at 22:26
