How to write vertically in a cell

Question

I know that with \begin{sideways} ... \end{sideways} I can write a text vertically, but it rotates the text by +90 degrees. What should I do to rotate it by -90 degrees?

Does \begin{turn}{-90} or \begin{turn}{270} work? – knut Jan 19 '12 at 16:39 — knut, Jan 19 '12 at 16:39
So, what's the best option of all these alternatives? – Dr_Zaszuś Apr 29 '15 at 11:28 — Dr_Zaszuś, Apr 29 '15 at 11:28

score 25 · Answer 1 · answered Jan 19 '12 at 16:43

25

You could use the environment turn.

Example:

\documentclass{scrartcl}
\usepackage{rotating}
\begin{document}

\begin{sideways}Test\end{sideways}

\begin{turn}{-90}Test 90\end{turn}

\begin{turn}{270}Test 270\end{turn}

\hrule

Tabular:

\begin{tabular}{ccc}
Normal
&
\begin{turn}{-90}Test 90\end{turn}
&
\begin{turn}{270}Test 270\end{turn}
\end{tabular}

\end{document}

Result (extract)

answered Jan 19 '12 at 16:43

knut

8,838

now, how we are going to center the text here ? tried everything and it didn't work – Amir Aug 28 '16 at 17:31
Can you provide a Minimal Working Example and create a question? How do you want to center the text? – knut Sep 02 '16 at 21:13
It is here: http://tex.stackexchange.com/questions/326897/vertical-alignment-of-a-turned-cell – Amir Sep 03 '16 at 22:15

DOT · Answer 2 · 2021-06-15T15:30:38.167

The example from here worked for me for rotating and make it aligned with the column.

\usepackage{array,multirow,graphicx}
\rotatebox{90}{\parbox{2mm}{\multirow{4{*}{yourtexthere}}}

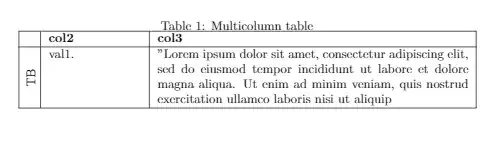

Edit: The complete executable code snippet:

\documentclass{article}
\usepackage[utf8]{inputenc}
\usepackage{array,multirow,graphicx}
\begin{document}
\begin{table}[h!]
\caption{Multicolumn table}
%---------------------------------------------------------------------
\begin{tabular}{
  |p{\dimexpr.05\linewidth-2\tabcolsep-1.3333\arrayrulewidth}% column 1
  |p{\dimexpr.25\linewidth-2\tabcolsep-1.3333\arrayrulewidth}% column 2
  |p{\dimexpr.75\linewidth-2\tabcolsep-1.3333\arrayrulewidth}|% column 3
  }
  \hline
  \centering \textbf{}     & \raggedright \textbf{col2}     & \raggedright\arraybackslash \textbf{col3}    \ \hline
  \parbox[t]{2mm}{\multirow{4}{*}{\rotatebox[origin=c]{90}{TB}}}
&
val1.
&
"Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip
\ \hline
\end{tabular}
\end{table}
\end{document}

score 0 · Answer 3 · answered Jan 19 '12 at 16:39

0

You can try the \reflectbox command from the graphics package. If you provide a Minimal Working Example, someone might be able to help with the specifics.

answered Jan 19 '12 at 16:39

recluze

4,201

1

If you're using graphics commands (and there's no reason not to) you might as well just use \rotatebox – Seamus Jan 19 '12 at 17:49
