Is there a sensible way to achieve node connectors that look like this:
I can achieve the first part of the curve as follows:
% !TEX program = xelatex
\documentclass{book}
\usepackage{tikz}
\usetikzlibrary{positioning}
\usetikzlibrary{arrows}
\usetikzlibrary{calc}
\usetikzlibrary{shapes}
\pgfdeclarelayer{bg}
\pgfsetlayers{bg,main}
\tikzstyle{box}=[rectangle,draw=black,inner xsep=12pt,inner ysep=6pt]
\tikzset{>=triangle 45}
\begin{document}
\begin{tikzpicture}%
\node (top) [box] {Top};
\node (bottom) [box,below=1cm of top] {Bottom};
\begin{pgfonlayer}{bg}%
\draw[->] (bottom.east) -- ++(0.3,0) .. controls +(0.25,0) and +(0,-0.25) .. ++(0.25,0.25) -- ++(0,1);
\end{pgfonlayer}
\end{tikzpicture}%
\end{document}

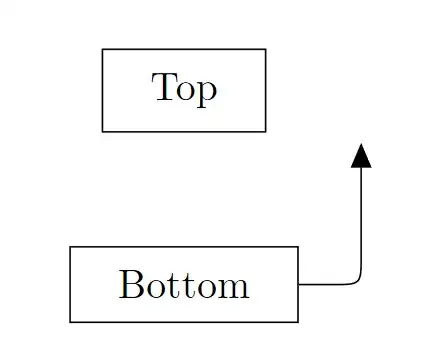

Which looks like this:
However, I'm not sure how to easily finish off the connector. I could do the math to calculate where the second curve should start, but that will result in rather difficult to comprehend code.
Is there a sane way to pull this off?
