How to make binary search trees in an easy and straight forward way?

Question

I'm trying to have this tree in LaTeX and I found this helpful response on this site but I easily got lost with all the brackets that are going on and I now have this

Which is achieved by the following code:

\usepackage{tikz-qtree}
\usetikzlibrary{arrows.meta,bending}
\tikzset{every tree node/.style={minimum width=2em,draw,circle},
     blank/.style={draw=none},
     edge from parent/.style=
     {draw, edge from parent path={(\tikzparentnode) -- (\tikzchildnode)}},
     level distance=1.5cm}
\begin{tikzpicture}
\Tree
[.51
    [.12 ]
    [.87
    \edge[blank]; \node[blank]{};
    \edge[.52
    \edge[]; {83}
     \edge[blank]; \node[blank]{};
    ]
    [.40
             \edge[]; {20}
             \edge[blank]; \node[blank]{};
         ]
    ]
]
\end{tikzpicture}

I know that someone can easily fix all these brackets for me but I would appreciate another method that is easier, much more, so that I can also do the rest of the trees that I want to make on my own.

caverac · Answer 1 · 2018-03-20T13:20:44.157

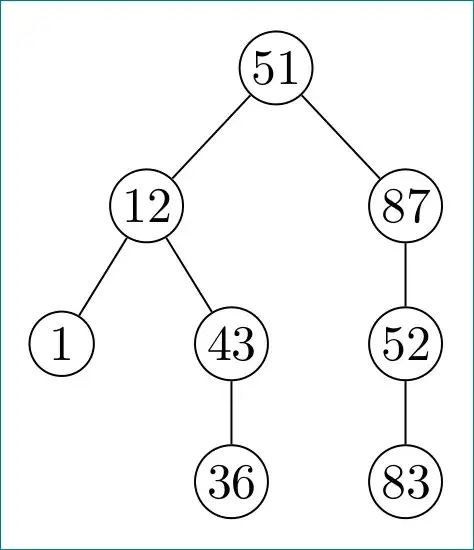

This is a solution using tikz, as an example consider the following tree

To create this code I used

\documentclass[border = 5pt, tikz]{standalone}

\begin{document}
\begin{tikzpicture}[
  every node/.style = {minimum width = 2em, draw, circle},
  ]
  \node {51}
  child {node {12}}
  child {node {87}};
\end{tikzpicture}
\end{document}

In this representation, it is very clear that both 12 and 87 are children of 57. If you want to grow the tree, just keep adding children

\documentclass[border = 5pt, tikz]{standalone}


\begin{document}
\begin{tikzpicture}[
  every node/.style = {minimum width = 2em, draw, circle},
  level/.style = {sibling distance = 30mm/#1}
  ]
  \node {51}
  child {node {12}
        child {node {1}}
        child {node {43}
               child {node {36}}
               child {edge from parent[draw = none]}
              }
        }
  child {node {87}
         child {node {52}
                child {edge from parent[draw = none]}
                child {node {83}}
               }
         child {edge from parent[draw = none]}
        };
\end{tikzpicture}
\end{document}

Zarko · Accepted Answer · 2022-12-11T14:04:21.727

8

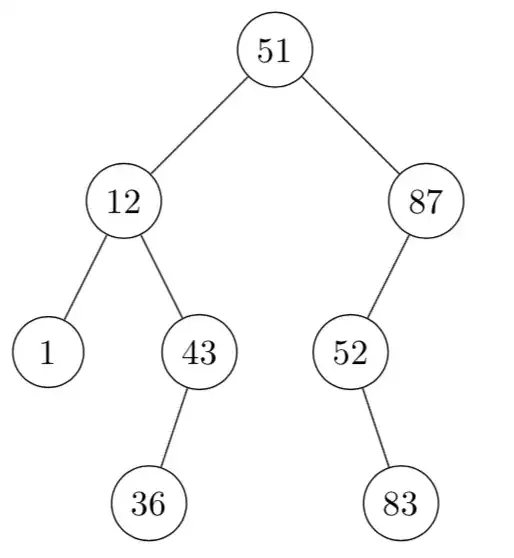

i would simplify tree layout as follows:

and in drawing use package forest:

\documentclass[margin=3mm]{standalone}
\usepackage[edges]{forest}
\begin{document}
    \begin{forest}
for tree={
    grow=south,
    circle, draw, minimum size=3ex, inner sep=1pt,
    s sep=7mm
        }
[51
    [12
        [1]
        [43
            [36]
        ]
    ]
    [87
        [52
            [83]
        ]
    ]
]
\end{forest}
\end{document}

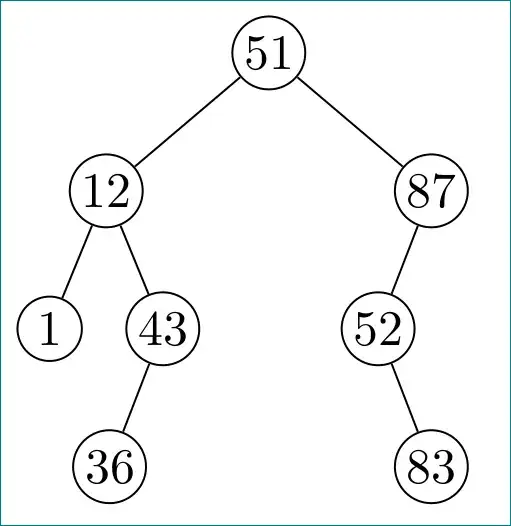

addendum: considering caverac comment:

\documentclass[margin=3mm]{standalone}
\usepackage[edges]{forest}
\begin{document}
    \begin{forest}
for tree={
    grow=south,
    circle, draw, minimum size=3ex, inner sep=1pt,
    s sep=3mm
        }
[51
    [12
        [1]
        [43
            [36]
            [,no edge, draw=none]
        ]
    ]
    [87
        [52
            [,no edge, draw=none]
            [83]
        ]
        [,no edge, draw=none]
    ]
]
\end{forest}
\end{document}

Edit:
In above MWE you can nodes options no edge, draw=none can replace with shorter phantom (@ Arne, thank you for remind me on this).

edited Dec 11 '22 at 14:04

answered Mar 20 '18 at 13:35

Zarko

296,517

3

In a binary search tree, the notions of left child and right child are fundamental, and they kind of disappeared in your implementation. I never used forest before but I think it is possible to make that explicit, would you be so kind and add a correction to your answer? Thanks! – caverac Mar 20 '18 at 13:41
1

@caverac, this option is now added. – Zarko Mar 20 '18 at 13:47
The solution in the addedndum is much much easier to implement and to read compared to what i had. Thanks a lot (+1). – Mar 20 '18 at 14:06
1

Indeed the easiest syntax ! – Tarass Mar 20 '18 at 14:19
the phantom option build in makes ,no edge, draw=none superfluous. – Arne Dec 11 '22 at 13:18
@Arne, you are right. With option phantom can be replaced no edge, draw=none. – Zarko Dec 11 '22 at 13:59

score 3 · Answer 3 · answered Mar 20 '18 at 14:15

\documentclass{article}
\usepackage{tikz}
\usetikzlibrary{calc}
\begin{document}
\begin{tikzpicture}[%level distance=5mm,
level 1/.style={level distance=10mm,sibling distance=24mm},
level 2/.style={level distance=10mm,sibling distance=16mm},
level 3/.style={level distance=10mm,sibling distance=16mm},
font=\scriptsize,inner sep=2pt,every node/.style={draw,circle,minimum size=3ex}]

\node {51} % root
child {node {12} % first level
        child {node{1}} % 2sd level
        child {node{43}
            child {node{36}} % 3rd level
            child[missing]
        }
    edge from parent }
child   {node {87} % first level
            child {node {52} % 2sd level
                child[missing] % 3rd level
                child {node{83}}
            }
            child[missing]
        } ;
\end{tikzpicture}
\end{document}
