scale box problem in table

Question

i was working on a table which is rotated by 90 degrees. I don't know what i might have deleted, and I don't get an output anymore. I have an extra } to put somewhere, but wherever I put it, it does not produce my table.. could you please take a look? thank a lot in advance

\begin{table}[H]
\centering
\scalebox{0.7}{%
\begin{adjustbox}{angle=90}
\begin{tabular}{ccccccccccccc}
\hline
Variabla & \multicolumn{4}{c}{2003} & \multicolumn{4}{c}{2008}& \multicolumn{4}{c}{2012} \\
\hline
  $X_{it}$  &  Ln shitje  &  Ln paga  & Ln kapital  &  Ln aktive  & Ln shitje  &   Ln paga  & Ln kapital & Ln aktive & Ln shitje  &  Ln paga &  Lnkcapital  &  Ln aktive \\
export      &       0.699***&       0.192***&       0.646***&       0.779***&       0.837***&       0.238***&       0.627***&       0.842***&       0.923***&       0.245***&       0.593***&       0.957***\\
R-squared   &       0.463   &       0.047   &       0.390   &       0.429   &       0.512   &       0.120   &       0.373   &       0.4
57   &       0.492   &       0.135   &       0.327   &       0.425   \\
N  &   24909   &   24881  &   24909   &   24903   &   29826   &   29778   &   29826 &   29818   &   27050   &   26995  &   27050  &   27042  \\
 \hline
\end{tabular}%
\caption{}\label{fig:}
\end{adjustbox}
\end{table}

Since you have some responses below that seem to answer your question, please consider marking one of them as ‘Accepted’ by clicking on the tickmark below their vote count (see How do you accept an answer?). This shows which answer helped you most, and it assigns reputation points to the author of the answer (and to you!). It's part of this site's idea to identify good questions and answers through upvotes and acceptance of answers. — samcarter_is_at_topanswers.xyz, Jun 10 '18 at 10:08

score 3 · Answer 1 · answered Apr 15 '18 at 10:39

Your code misses the closing bracket from the scalebox. Aditionally, you can not that easily put a caption command inside an adjustbox environment (See Resize table and caption). In order to rotate a table and its caption, I would use the sidewaystable environment from the rotating package.

As shown in the following MWE, your table and its caption get rotated, but still are much too wide to fit on the page. Reducing the fontsize might work to fit the table onto the page, but depending on the documentclass, one would need an extremely tiny font.

\documentclass{article}
\usepackage{rotating}
\begin{document}

\begin{sidewaystable}
\centering
\begin{tabular}{ccccccccccccc}
\hline
Variabla & \multicolumn{4}{c}{2003} & \multicolumn{4}{c}{2008}& \multicolumn{4}{c}{2012} \\
\hline
  $X_{it}$  &  Ln shitje  &  Ln paga  & Ln kapital  &  Ln aktive  & Ln shitje  &   Ln paga  & Ln kapital & Ln aktive & Ln shitje  &  Ln paga &  Lnkcapital  &  Ln aktive \\
export      &       0.699***&       0.192***&       0.646***&       0.779***&       0.837***&       0.238***&       0.627***&       0.842***&       0.923***&       0.245***&       0.593***&       0.957***\\
R-squared   &       0.463   &       0.047   &       0.390   &       0.429   &       0.512   &       0.120   &       0.373   &       0.4
57   &       0.492   &       0.135   &       0.327   &       0.425   \\
N  &   24909   &   24881  &   24909   &   24903   &   29826   &   29778   &   29826 &   29818   &   27050   &   26995  &   27050  &   27042  \\
 \hline
\end{tabular}%
\caption{}\label{fig:}
\end{sidewaystable}

\end{document}

You might therefor consider to change the layout of your table to something like the following. In this example, I have split up the long rows in thirds and used horizontal rules from the booktabs package.

\documentclass{article}
\usepackage{booktabs}
\begin{document}

\begin{table}
\centering
\begin{tabular}{lcccc}
\toprule
 & \multicolumn{4}{c}{2003}  \\
\cmidrule{2-5}
  $X_{it}$  &  Ln shitje  &  Ln paga  & Ln kapital  &  Ln aktive  \\
export      &       0.699***&       0.192***&       0.646***&       0.779*** \\
R-squared   &       0.463   &       0.047   &       0.390   &       0.429   \\
N  &   24909   &   24881  &   24909   &   24903  \\
 \midrule
  & \multicolumn{4}{c}{2008} \\
 \cmidrule{2-5}
  $X_{it}$  &  Ln shitje  &  Ln paga  & Ln kapital  &  Ln aktive \\
  export      &   0.837***&       0.238***&       0.627***&       0.842***\\
  R-squared   &    0.512   &       0.120   &       0.373   &       0.4 \\
  N  &   29826   &   29778   &   29826 &   29818   \\
  \midrule
   & \multicolumn{4}{c}{2012} \\
  \cmidrule{2-5}
    $X_{it}$  & Ln shitje  &  Ln paga &  Lnkcapital  &  Ln aktive \\
export      &   0.923***&       0.245***&       0.593***&       0.957***\\
R-squared   &       0.492   &       0.135   &       0.327   &       0.425   \\
N    &   27050   &   26995  &   27050  &   27042  \\
 \bottomrule
\end{tabular}%

\caption{some caption}
\label{fig:}
\end{table}

\end{document}

score 3 · Answer 2 · answered Apr 15 '18 at 11:37

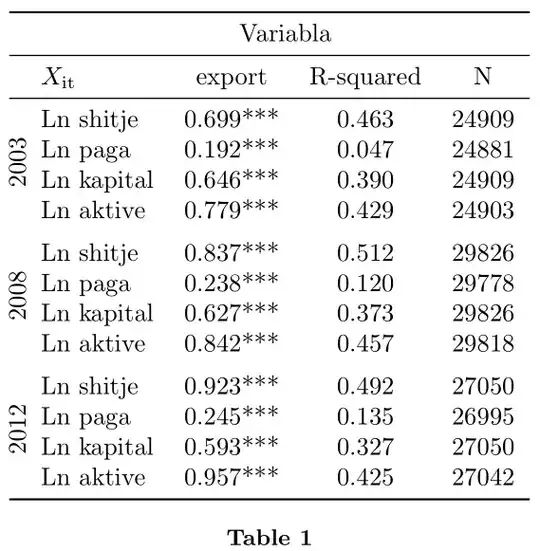

I suggest swapping rows and columns, and using the rules of booktabs to add some vertical padding to the rows:

\documentclass{article}

\usepackage{graphicx}
\usepackage[font=small,labelfont=bf]{caption}

\usepackage{rotating, float, booktabs, multirow}

\begin{document}

\begin{table}[H]
\centering
\begin{tabular}{@{}c@{\hskip 6pt}l*{4}{c}}
\toprule
 & \multicolumn{4}{c}{Variabla}\\
\midrule
 & $X_\mathrm{it}$ & export & R-squared & N\\
\midrule
\multirow{4}{*}{\rotatebox{90}{2003}} & Ln shitje & 0.699*** & 0.463 & 24909 \\
 & Ln paga & 0.192*** & 0.047 & 24881 \\
 & Ln kapital & 0.646*** & 0.390 & 24909 \\
 & Ln aktive & 0.779*** & 0.429 & 24903 \\
 \addlinespace
\multirow{4}{*}{\rotatebox{90}{2008}} & Ln shitje & 0.837*** & 0.512 & 29826 \\
 & Ln paga & 0.238*** & 0.120 & 29778 \\
  & Ln kapital & 0.627*** & 0.373 & 29826 \\
  & Ln aktive & 0.842*** & 0.457 & 29818 \\
 \addlinespace
\multirow{4}{*}{\rotatebox{90}{2012}}
 & Ln shitje & 0.923*** & 0.492 & 27050 \\
 & Ln paga & 0.245*** & 0.135 & 26995 \\
 & Ln kapital & 0.593*** & 0.327 & 27050 \\
 & Ln aktive & 0.957*** & 0.425 & 27042 \\
 \bottomrule
\end{tabular}

\caption{}\label{fig:}%
\end{table}

\end{document}

score 2 · Answer 3 · answered Apr 15 '18 at 11:04

i would use the packages booktabs, threepartable and siunitx and reorganised table similarly as suggest leandriis in his(her) answer:

\documentclass{article}
\usepackage{rotating}
\usepackage{booktabs, threeparttable}
\usepackage{siunitx}

\begin{document}
    \begin{threeparttable}[htb]
\centering
\begin{tabular}{l*{4}{S[table-format=1.3,
                        table-space-text-post=\tnote{***}]}
                }
    \toprule
            &   \multicolumn{4}{c}{2003}  \\
    \cmidrule{2-5}
$X_{it}$    & {Ln shitje}       & {Ln paga}         & {Ln kapital}      & {Ln aktive}       \\
    \midrule
export      & 0.699\tnote{***}  & 0.192\tnote{***}  & 0.646\tnote{***}  & 0.779\tnote{***}  \\
R-squared   & 0.463             & 0.047             & 0.390             & 0.429             \\
N           & {24909}           & {24881}           & {24909}           & {24903}           \\
    \midrule
            &   \multicolumn{4}{c}{2008} \\
    \cmidrule{2-5}
export      & 0.837\tnote{***}  & 0.238\tnote{***}  & 0.627***          & 0.842***          \\
R-squared   & 0.512             & 0.120             & 0.373             & 0.4               \\
N           & {29826}           & {29778}           & {29826}           & {29818}           \\
  \midrule
            &   \multicolumn{4}{c}{2012} \\
  \cmidrule{2-5}
export      & 0.923\tnote{***}  & 0.245\tnote{***}  & 0.593\tnote{***}  & 0.957\tnote{***}  \\
R-squared   & 0.492             & 0.135             & 0.327             & 0.425             \\
N           & {27050}           & {26995}           & {27050}           & {27042}           \\
 \bottomrule
\end{tabular}%
    \begin{tablenotes}[para]
    \item[***] ???
    \end{tablenotes}
    \caption{some caption}
\label{fig:}
    \end{threeparttable}
\end{document}

Note:

threeparttable enable to write table notes below table
captions at table are usual on the top of table
