I am quite new into the LateX world but I gave it a chance since I am writing my thesis. I learnt a lot and so far I resolved all my questions thanks to the forum and previous users. However, I do not manage with the following problem even tho I know there are several topics about it. I read them all but the do not exactly help with what I need.

Probably is a very simple issue but for me it is quite the opposite!

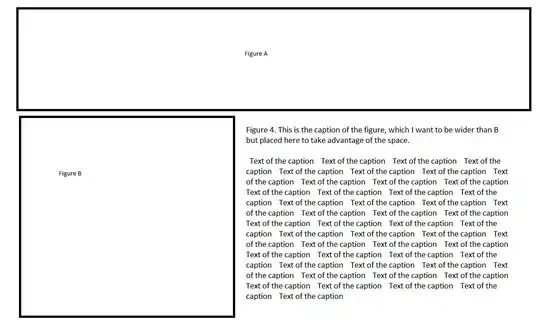

Anyway, this img pictures what I am trying to do:

enter image description here

I played with minipages and several other ways but I dont manage. Can you help me?

I tried this Multiple panel figure, with caption in one of the panels?, but since I have a big figure (a) instead of two, I got lost modifying the code.

Thanks in advance!!

Bobyandbob
  • 4,899
ThesisWriter
  • 3
  • Welcome to TeX.SX! Figure A and B should be part of figure 4? Do you like only one caption for both? – Bobyandbob May 18 '18 at 12:46
  • Also, if possible please post your MWE ... – MadyYuvi May 18 '18 at 13:01
  • Hi both and thanks for answering! A and B belong to Figure 4, yes. They do not carry a subcaption. My code is basically the one i nthe answer of the linked topic. It is basically useless since I just try to modify things inside that one, but I am not achieving that result. – ThesisWriter May 18 '18 at 13:25
  • See also https://tex.stackexchange.com/questions/403661/how-to-prevent-floatrow-from-moving-the-caption?s=4|26.1122 – John Kormylo May 18 '18 at 14:53

1 Answers1

2

The following MWE shows two different examples on how to achieve the desired result. The first uses minipages in order to position the small image and the caption. The second shows how to adapt the answer that you refered to to your images. However, you don't really need subfigures if the individual images do not get additionaly individual subcaptions.

\documentclass{article}
\usepackage{graphicx}
\usepackage{subcaption}

\begin{document}
\begin{figure}[htbp]
\includegraphics[width=\textwidth, height=4cm]{example-image}

\medskip

\begin{minipage}[b]{0.48\textwidth}
\includegraphics[width=\textwidth]{example-image}
\end{minipage}
\hfill
\begin{minipage}[b]{0.48\textwidth}
\caption{some long caption text that spans several lines on the document}
\end{minipage}
\end{figure}

\begin{figure}
\centering

\begin{subfigure}[t]{\textwidth}
\centering
\includegraphics[width=\linewidth]{example-image-a.pdf}
\end{subfigure}

\medskip

\begin{subfigure}[t]{.4\textwidth}
%\centering
\vspace{0pt}% set the real top as the top
\includegraphics[width=\linewidth]{example-image-c.pdf}
\end{subfigure}
\hfill
\begin{minipage}[t]{.55\textwidth}
\caption{Some general caption of all the figures.}
\end{minipage}

\end{figure}
\end{document}
leandriis
  • 62,593
  • Thanks a lot for the answer! I tried the first option you suggested, since it is true that I don't need subfigures if I don't need subcaptions.

    That way, the figures are placed as in my draft, but the caption lies below the second one, instead of being placed in the "free space" on the right. Why is that?

     – ThesisWriter May 23 '18 at 08:11
