LaTeX matplotlib pgf shows no colorbar - instead shows colorbar png image filename

Question

Moved from Stack Overflow

I'm producing various plots with matplotlib and save them as PGF files. These are then imported in my LaTeX file and compiled using the pgf package.

The problem is, I can't seem to render colorbars for some reason. Also web searches came up empty so far, as I'm not quite sure what I'm looking for in terms of bug.

I produce my plot like this

fig = plt.figure()
gs  = gridspec.GridSpec(10, 1)
ax1 = plt.subplot(gs[:7, :])
ax2 = plt.subplot(gs[7:, :], sharex=ax1)

[...]

# plot
sc = *scatter plot of my data*
# colorbar
divider = make_axes_locatable(ax2)
cax = divider.append_axes("right", size="5%", pad=0.05)
plt.colorbar(sc, cax=cax)
# save
fig.set_size_inches(8, 5)
plt.savefig('isotropy-raw.pgf', bbox_inches='tight')

Then I get this

File Output

but upon including that in my tex file

\begin{figure}[h!]
  \centering
  \input{path/to/file/isotropy-raw.pgf}
  \caption[x]{x}
  \label{x}
\end{figure}

it compiles this

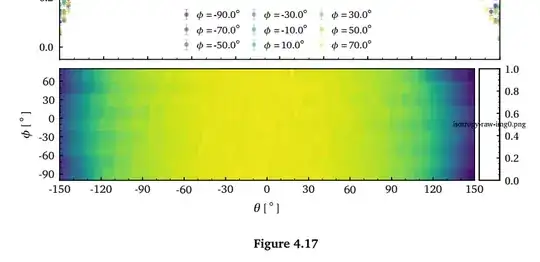

LaTeX Output

I'm a bit baffled at this point. Any help is appreciated!

EDIT:

Providing an MWE

\documentclass[11pt, a4paper, twoside, openright]{book}
\usepackage{pgf}

\begin{document}
\begin{figure}[h!]
  \centering
  \input{isotropy-raw.pgf}
  \caption{A nice caption}
 \end{figure}
\end{document}

PGF File

PNG File

Colorbar PNG

The colorbar png file is created by LaTeX upon compiling.

Can you make a minimal working example (MWE)? Are you able to share the .pgf and .png file? — samcarter_is_at_topanswers.xyz, Jun 21 '18 at 17:02
@samcarter Thank you! I will provide the files and an MWE, give me a sec. — Felix Henningsen, Jun 21 '18 at 17:03
Thanks! I just tested and your code works fine for me ( https://i.stack.imgur.com/8Vx5Q.png). Can you compile the little document from your question and share the .log file? — samcarter_is_at_topanswers.xyz, Jun 21 '18 at 17:15
OK, at the end of your log file it says Package pgf Warning: File "isotropy-raw-img0.png" not found when defining image "pgflastimage". Tried all extensions in ".pdf:.jpg:.jpeg:.png:" on input line 44183. ) — samcarter_is_at_topanswers.xyz, Jun 21 '18 at 17:20
Can you test if `\documentclass{book} \usepackage{graphicx}
\begin{document}

\includegraphics{isotropy-raw-img0.png}

\end{document}` works? — samcarter_is_at_topanswers.xyz, Jun 21 '18 at 17:22
I see that. What causes this if it compiles fine on your machine? In my case, the image is in a subfolder, that might be valuable information. — Felix Henningsen, Jun 21 '18 at 17:22
This wont compile, as it is in /subfolder/isotropy-raw-img0.png — Felix Henningsen, Jun 21 '18 at 17:24
I see, this explains the problem. Open isotropy-ray.pgf in a editor and replace \pgfimage[interpolate=true,width=0.220000in,height=1.210000in]{isotropy-raw-img0.png} by \pgfimage[interpolate=true,width=0.220000in,height=1.210000in]{path/to/file/isotropy-raw-img0.png}. — samcarter_is_at_topanswers.xyz, Jun 21 '18 at 17:25
@samcarter genius! (if you put in the right subfolder) it works! — Felix Henningsen, Jun 21 '18 at 17:31
@samcarter now, that being a kind of dirty solution, any way to automatize this? — Felix Henningsen, Jun 21 '18 at 17:32
To automate maybe this thread could help: https://tex.stackexchange.com/q/127667/36296 — samcarter_is_at_topanswers.xyz, Jun 21 '18 at 17:33
