I want to convert a plain text formatted as a table into a LaTeX table. I have a routing table I wanted to include in my file but here it is:

Routing Tables: Public
         Destinations : 10       Routes : 10

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

       10.0.1.0/24  Direct  0    0           D   10.0.1.1        LoopBack0
       10.0.1.1/32  Direct  0    0           D   127.0.0.1       LoopBack0
     10.0.1.255/32  Direct  0    0           D   127.0.0.1       LoopBack0
      10.0.12.0/24  Direct  0    0           D   10.0.12.1       GigabitEthernet
0/0/0

I tried manually to create a table but I have to include many like this and it would take too long, I also tried consider it as code using \begin{listing}... \end{listing} but doesn't format well either.

I was wondering if is there was any tool or suggested command.

PS: Also the last line "0/0/0" should be part of the previous one.

CarLaTeX
  • 62,716
Lorenzo Rossi
  • 11
  • May be this might help you https://tex.stackexchange.com/questions/165918/how-to-transform-google-docs-tables-into-latex-tables ? I think you could pull the same work-around mentioned there – Raaja_is_at_topanswers.xyz Aug 06 '18 at 06:58
  • there are tools but really with a any text editor it should only be a few seconds work to change each run of white space to &, add a \\ at the end of the lines and then add some \begin{tabular} markup that gives the possibility for hand tuning the layout and will give better, more understandable markup and output than an automated generation. – David Carlisle Aug 06 '18 at 08:14

1 Answers1

1

If your aim is to include the output of some program and not to adapt the information, you can include it verbatim, either by copying it to the LaTeX file or by keeping it in a separate file that is included verbatim. Depending on the text width you may have to adapt the font size.

\documentclass{article}
\usepackage{verbatim}
\begin{document}

\noindent
{\footnotesize
\begin{verbatim}
Routing Tables: Public
         Destinations : 10       Routes : 10

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

       10.0.1.0/24  Direct  0    0           D   10.0.1.1        LoopBack0
       10.0.1.1/32  Direct  0    0           D   127.0.0.1       LoopBack0
     10.0.1.255/32  Direct  0    0           D   127.0.0.1       LoopBack0
      10.0.12.0/24  Direct  0    0           D   10.0.12.1       GigabitEthernet 0/0/0
\end{verbatim}
}

% Alternatively, load the data from a file.

\noindent
{\footnotesize
\verbatiminput{routing.txt}
}

\end{document}

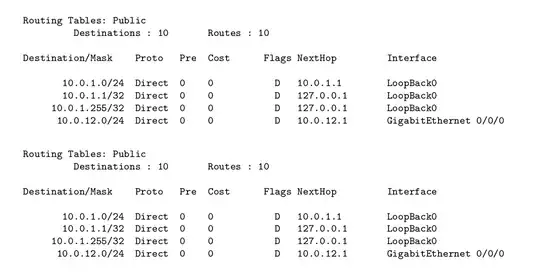

enter image description here

The file routing.txt contains the following lines:

Routing Tables: Public
         Destinations : 10       Routes : 10

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

       10.0.1.0/24  Direct  0    0           D   10.0.1.1        LoopBack0
       10.0.1.1/32  Direct  0    0           D   127.0.0.1       LoopBack0
     10.0.1.255/32  Direct  0    0           D   127.0.0.1       LoopBack0
      10.0.12.0/24  Direct  0    0           D   10.0.12.1       GigabitEthernet 0/0/0
