For example, suppose I had an equation

x = 2 + 1 - 2 - 1 (obviously toy example)

I want the +2 to cancel out with the -2, +1 to cancel out with the -1

So in Latex I would want something like

enter image description here

Is there a simple way to implement multi-colored strike through or cancel in Latex?

enter image description here

A similar question is found here but it is for global coloring crossing out using different colour

Community
  • 1
Fraïssé
  • 3,139

1 Answers1

9

One possibility is to use cancel. (EDIT: Replaced \textcolor by color, big thanks to Werner!)

\documentclass{article}
\usepackage{cancel,xcolor}
\newcommand{\Cancel}[2][black]{{\color{#1}\cancel{\color{black}#2}}}
\begin{document}
\[x~=~\Cancel[blue]{2}+\Cancel[red]{1}-
 \Cancel[blue]{2}-\Cancel[red]{1}\]
\end{document}

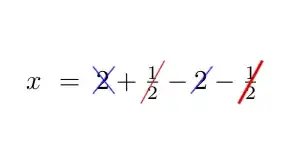

enter image description here

Note, however, that an ambient color will be without effect, i.e. instead of {\color{green}\Cancel[blue]{2}+\Cancel[red]{1}} you'd need to do \Cancel[blue]{\color{green} 2}+\Cancel[red]{\color{green} 1} unfortunately. I guess that there will be better ways and am looking forward to learn new tricks.

EDIT: Just for fun: a TikZ version. The option X will do an \xcancel sort of cross out.

\documentclass{article}
\usepackage{tikz}
\newif\ifCancelX
\tikzset{X/.code={\CancelXtrue}}
\newcommand{\Cancel}[2][]{\relax
\ifmmode%
  \tikz[baseline=(X.base),inner sep=0pt] {\node (X) {$#2$};
  \tikzset{#1}
  \draw[#1,overlay,shorten >=-2pt,shorten <=-2pt] (X.south west) -- (X.north east);
  \ifCancelX
    \draw[#1,overlay,shorten >=-2pt,shorten <=-2pt] (X.north west) -- (X.south east);
  \fi}
\else
  \tikz[baseline=(X.base),inner sep=0pt] {\node (X) {#2};
  \tikzset{#1}
  \draw[#1,overlay,shorten >=-2pt,shorten <=-2pt] (X.south west) -- (X.north east);
  \ifCancelX
    \draw[#1,overlay,shorten >=-2pt,shorten <=-2pt] (X.north west) -- (X.south east);
  \fi}%
\fi}

\begin{document}
\[x~=~\Cancel[blue,X]{2}+\Cancel[red]{\frac{1}{2}}-
 \Cancel[blue]{2}-\Cancel[red, line width=1pt]{\frac{1}{2}}\]
\end{document}

enter image description here

  • I never knew you could use color with cancel ... – Fraïssé Aug 13 '18 at 22:17
  • @EnlightenedOne both start with c ... ;-) (Note that of course an ambient color will be without effect, i.e. instead of \textcolor{green}{\Cancel[blue]{2}+\Cancel[red]{1} you'd need to do \Cancel[blue]{\textcolor{green}{2}}+\Cancel[red]{\textcolor{green}{1}} unfortunately. ) –  Aug 13 '18 at 22:20
  • 1
    Don't use \textcolor{<color>}{<stuff>}, rather use {\color{<color}<stuff>}. This translates your implementation to work within math and text mode, rather than currently just in text mode. Try with \Cancel[blue]{\frac{1}{2}}... – Werner Aug 13 '18 at 22:25
  • @Werner Thank you! I did not know that. Do you want to post an answer and I delete mine? –  Aug 13 '18 at 22:31
  • @marmot Is there a trick to give choice within cancel and xcancel? Otherwise adding a new command Xcancel coded withe \xcancel. – pzorba75 Aug 14 '18 at 03:33
  • 1
    @pzorba75 I added a TikZ version that accepts an X in the options. I don't know to do it otherwise in one command. Of course, your suggestion works and is much more minimal than loading TikZ. –  Aug 14 '18 at 04:10
