How to make text masking background shape lines

Question

I want to draw a picture with some text masking the background shape lines. I tried with opacity but the fill is not very nature.

\documentclass[border=5mm, convert, usenames, dvipsnames]{standalone}
\usepackage{tikz}
\usetikzlibrary{shapes, positioning, calc, arrows.meta, fit}

\begin{document}
\begin{tikzpicture}
    \node [draw, rectangle, minimum width=2cm, minimum height=4cm] (a) {};
    \node [draw, rectangle, minimum width=2cm, minimum height=4cm, right = 1cm of a] (b) {};
    \draw [->, >=latex] (a) to node [above, fill, opacity=0.2,text opacity=1] {HelloWorld} (b);
\end{tikzpicture}
\end{document}

Yield the following

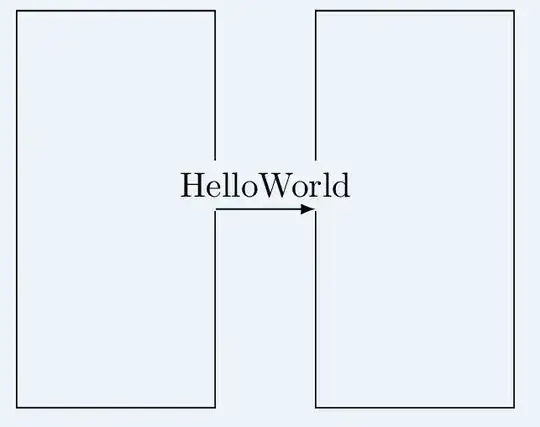

However what I want is like this

Forget the background color, i use some image editing tool to get this. What I want is that part of rectangle shape line dissolved behind the text. I tried to use backgrounds but it also don't work.

Is there a possible solution?

fill=white will mask the arrow line below. yshift may be added as a workaround. But I am wondering if there are some elegant way of "fill of no color", it is better that it only mask the lines intersecting with the text — Eric Sun, Oct 16 '18 at 14:46
`\documentclass[border=5mm, convert, usenames, dvipsnames]{standalone} \usepackage{tikz} \usetikzlibrary{positioning}
\begin{document} \begin{tikzpicture} \node [draw, rectangle, minimum width=2cm, minimum height=4cm] (a) {}; \node [draw, rectangle, minimum width=2cm, minimum height=4cm, right = 1cm of a] (b) {}; \path (a) to node [above, fill=white] {HelloWorld} (b); \draw [-latex] (a) to (b); \end{tikzpicture} \end{document}` — , Oct 16 '18 at 14:51
Yeah, first text then arrow line is a good solution. But I still want to know if there are any chance that fill=white can be replaced with things like fill=nocolor so that I can use the generated png in any color background — Eric Sun, Oct 16 '18 at 15:02
Not really. You could draw the node first, use save path and use path (from this answer) to define the reverseclip trick (see this answer) to spare out the node when drawing the boxes. A corresponding ERASER style has been defined here. — , Oct 16 '18 at 15:27

score 1 · Answer 1 · answered Oct 16 '18 at 20:53

From your comment I take you want to block out the node. One way to do that is based on save path, reverseclip and this answer.

\documentclass[convert, usenames, dvipsnames,border=3.14mm]{standalone}
\usepackage{tikz}
\usetikzlibrary{positioning}
\makeatletter % https://tex.stackexchange.com/a/38995/121799
\tikzset{
  use path/.code={\pgfsyssoftpath@setcurrentpath{#1}}
}
\makeatother
\tikzset{block out/.style={save path=\tmprotect}}%
% https://tex.stackexchange.com/a/12033/121799
\tikzset{reverseclip/.style={insert path={([xshift=\pgflinewidth/2,yshift=\pgflinewidth/2,]current bounding box.north
        east) rectangle ([xshift=-\pgflinewidth/2,yshift=-\pgflinewidth/2]current bounding box.south west)}}}
\begin{document}
\begin{tikzpicture}
 \node [rectangle, minimum width=2cm, minimum height=4cm] (a) {};
 \node [rectangle, minimum width=2cm, minimum height=4cm, right = 1cm of a] (b) {};
 \draw [->, >=latex] (a) to node [above, block out] {HelloWorld} (b);
 \clip[use path=\tmprotect,reverseclip];
 \draw (a.south west) rectangle (a.north east)
 (b.south west) rectangle (b.north east);
\end{tikzpicture}
\end{document}

Seems the magic happens when applying insert path to clip, and it now becomes outsider(reverse) clip. I read the manual about insert path and it says it "add something to the current path". How to understand it in this case? — Eric Sun, Oct 17 '18 at 08:45

score 1 · Accepted Answer · answered Oct 17 '18 at 07:58

I think behind path is what you are looking for. With behind path option node contents is drawn behind the path where it is defined (see example on page 214). This way fill=white will cover the lines and the arrow is drawn over the text.

\documentclass[border=5mm, convert, usenames, dvipsnames]{standalone}
\usepackage{tikz}
\usetikzlibrary{shapes, positioning, calc, arrows.meta, fit}

\begin{document}
\begin{tikzpicture}
    \node [draw, rectangle, minimum width=2cm, minimum height=4cm] (a) {};
    \node [draw, rectangle, minimum width=2cm, minimum height=4cm, right = 1cm of a] (b) {};
    \draw [->, >=latex] (a) to node [above, fill=white, behind path] {HelloWorld} (b);
\end{tikzpicture}
\end{document}

Thank you, behind path is one option I don't know before, quite useful here — Eric Sun, Oct 17 '18 at 08:47
