I have text where I want to adjust the space above the first line. I want to overlay grid lines to show where the vertical position of the text is.

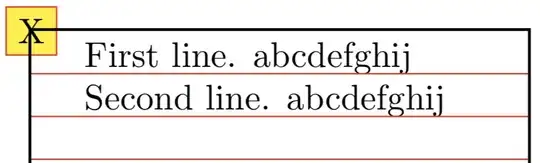

The MWE below with the following line commented is the standard output. The red horizontal lines are integer multiples of \baselineskip from the top.

%\def\IncludeDesiredTopSkip{}

enter image description here

However, if I uncomment this line (which applies the \DesiredTopSkip, which is set to 0pt here), I obtain the following:

\def\IncludeDesiredTopSkip{}

enter image description here

Note that the baseline now is exactly on the line.

Question:

What am I missing that would explain this discrepancy in the two cases and how do I get both cases to properly display the baseline?

Note:

  • In case anyone is curious as to why I want to do this: These lines are then used to compute the \parshape parameters based on where these lines intersect the particular shape.

References:

Code:

%\def\IncludeDesiredTopSkip{}
\documentclass{article}
\usepackage{showframe}
\usepackage{tikz}

\usepackage[paperwidth=7.0cm]{geometry}


\newcommand*{\DesiredTopSkip}{0pt}


\newcommand*{\ShowTextGuideLines}[1]{%
\begin{tikzpicture}[remember picture, overlay]
    \coordinate (X) at ([
            xshift=1.0in+\hoffset+\oddsidemargin,
            yshift=-1.0in-\voffset-\topmargin-\headheight-\headsep%
        ]current page.north west);


\node [draw=red, fill=yellow] at (X) {X};%% DEBUGGING: Ensure (X) is the correct spot.

\foreach \X in {1, ..., #1} {%
    \draw [thin, red] ([yshift=-\X\baselineskip-\DesiredTopSkip]X) -- ++ (\hsize,0);
}%



\end{tikzpicture}%
}%


\begin{document}
\ifdefined\IncludeDesiredTopSkip
    %% See comments in https://tex.stackexchange.com/q/7676/4301
    \hbox{}\kern-\topskip%
    \vspace*{\DesiredTopSkip}%
\fi
First line. abcdefghij
\par
Second line. abcdefghij
\ShowTextGuideLines{3}
\end{document}
Community
  • 1
Peter Grill
  • 223,288

1 Answers1

2

This answer does not really address the question you ask explicitly, but I think it does accomplish what you are trying to do.

The lineno package generates line numbers and places them in the margin. I'm (ab)using this package by telling it to print red horizontal rules instead of numbers, which has the desired effect.

\documentclass{article}

\usepackage{lineno}    %% <- package for numbering lines
%\linenumbers          %% <- turns on line "numbering" globally

\usepackage{xcolor}    %% <- colour support

\newcommand*{\redline}{\color{red}\rule[-.4pt]{\textwidth}{.4pt}}
%% ^^ the optional argument puts the rule just /below/ the baseline.
%% ^^ to centre it on the baseline, change it to -.2pt.
%% ^^ remove the optional argument to place it on top of the baseline
\setmakelinenumbers\redline %% <- draw a horizontal rule instead of numbers

\usepackage{blindtext} %% <- for \blindtext

\begin{document}

\blindtext[1]

\linenumbers

\blindtext[1]

\nolinenumbers

\blindtext[1]

\end{document}

output

Note that instead of \linenumbers ... \nolinenumbers you can also use \begin{linenumbers}...\end{linenumbers} if you prefer this syntax.

Circumscribe
  • 10,856
  • Nice hack. I need the lines to be drawn in tikz so that I can compute intersections. – Peter Grill Nov 21 '18 at 16:40
  • Ah, I see. Do you plan to use this to have your text flow around an image? That's a pretty neat idea. – Circumscribe Nov 21 '18 at 18:38
  • At the moment, I am using this to determine the \parshape parameters so that the text takes on a particular shape -- based on the output display. But, in the future I could use this to adjust the \parshape to flow around an image as well. – Peter Grill Nov 21 '18 at 19:00
  • My answer probably won't be helpful then. To use Tikz you can of course instead define \newcommand*{\redline}{\tikz[baseline] \draw[thin,red] (0,0) -- (\textwidth,0);}, but I suspect that you'll want to compute these intersections and call \parshape before rendering any actual text. – Circumscribe Nov 21 '18 at 19:50
