This is my code (ConTeXt, but I think that's not relevant here):

\usemodule[tikz]
\usetikzlibrary{positioning,fit,shapes,calc,arrows.meta,decorations.markings}

\tikzset{
  arr/.style = { -{Stealth[width=2mm]} },
  garr/.style = {arr, dashed, draw=green},
  cflow/.style={draw=black,ellipse,text centered,minimum width=1cm}
}

\starttext
  \starttikzpicture
    \node[cflow] (A) {A};
    \node[cflow,right=of A] (E) {E};
    \node[cflow,below right=.35cm and 1.4cm of E] (B) {B};

    \path[arr]
      (A) edge (E)
      (E) edge (B);
    \path[garr]
      (A) edge[bend right] (B);
  \stoptikzpicture
\stoptext

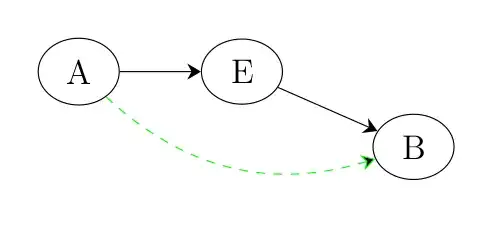

The result is:

Why is the arrow head drawn with both green and black and why do they have different sizes?

flyx
  • 2,051

1 Answers1

5

According to page 190 of the manual, stealth arrows are built according to a quadrilateral.

The < color > will apply both to any drawing and filling operations used to construct the path. For instance, even though the Stealth arrow tips looks like a filled quadrilateral, it is actually constructed by drawing a quadrilateral and then filling it in the same color as the drawing (see the fill option below to see the difference).

But if you specify a color for the arrow with the draw option, it is only its border that takes on this color. For it to fill green, it must also be filled with green.

garr/.style = {arr, dashed,draw=green,fill=green},

Here, it is enough to indicate the color without specifying draw for it to also fill the arrow.

garr/.style = {arr, dashed,green},

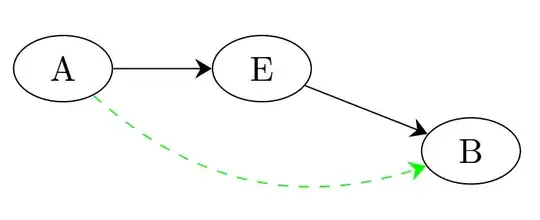

draw-fill

here a solution with PDFLatex (I don't use Context, but it's the same).

\documentclass{article}
\usepackage{tikz}
\usetikzlibrary{positioning,fit,shapes,calc,arrows.meta,decorations.markings}

\tikzset{
  arr/.style = { -{Stealth[width=2mm]} },
  garr/.style = {arr, dashed,green},
  cflow/.style={draw=black,ellipse,text centered,minimum width=1cm}
}
\begin{document}
%\starttext
\begin{tikzpicture}
    \node[cflow] (A) {A};
    \node[cflow,right=of A] (E) {E};
    \node[cflow,below right=.35cm and 1.4cm of E] (B) {B};

    \path[arr]
      (A) edge (E)
      (E) edge (B);
    \path[garr]
      (A) edge[bend right] (B);
\end{tikzpicture}
%\stoptext

\end{document}

Translated with www.DeepL.com/Translator

AndréC
  • 24,137
  • Thanks! I don't even remember how I ended up using draw=green when just green suffices. – flyx Nov 30 '18 at 12:42
  • There are nearly a thousand different keys with TikZ, so the extraordinary thing would be to not forget anything:-) – AndréC Nov 30 '18 at 12:50
