How can we Define our own Simple Environment for Source Code?

Question

Inside of our document we wish to define a new environment for blocks of source code

\newenvironment{srcblock}%
  % Define the environment

Later, we will use the environment:

\begin{srcblock} % use the environment
  % source code here
\end{srcblock}

We seek the following behavior:

Each line in a src code block is numbered
The font used for a src code block is monospaced
A border is drawn around a code code block, much like \fbox does
Each code block "floats" to a position so that it will fit all on one page.

What will srcblock contain in terms of characters? verbatim-like content, perhaps (symbols like #, _, $, ^, ...)? — Werner, Jan 07 '19 at 21:05
Did you already check the listings package? This should be straight-forward with it. Just read the manual. — Martin Scharrer, Jan 07 '19 at 21:34
Since you have some responses below that seem to answer your question, please consider marking one of them as ‘Accepted’ by clicking on the tickmark below their vote count (see How do you accept an answer?). This shows which answer helped you most, and it assigns reputation points to the author of the answer (and to you!). It's part of this site's idea to identify good questions and answers through upvotes and acceptance of answers. — samcarter_is_at_topanswers.xyz, Jan 29 '19 at 15:14

score 3 · Answer 1 · answered Jan 07 '19 at 21:13

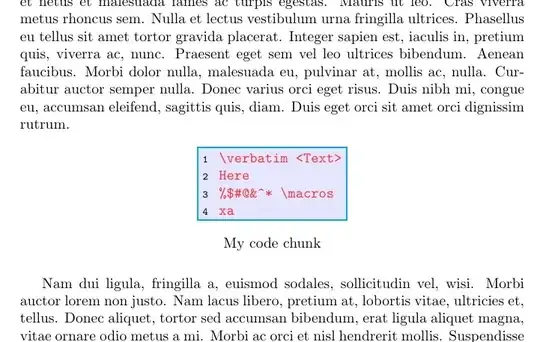

Variation on my answer here: Seemingly trivial: verbatim, newenvironment, and colorbox. It requires a small modification to my verbatimbox package.

\documentclass{article}
\usepackage{xcolor,caption,lipsum}
\usepackage{verbatimbox}
\makeatletter
\newenvironment{cverbbox}[5][]{%
  \setcounter{VerbboxLineNo}{0}%
  \def\verbatim@processline{%
% THE FIRST #1 ACCOUNTS FOR NON-PRINTING COMMANDS; THE SECOND #1 IS FOR
% PRINTED OPTIONAL MATERIAL
    {\addtocounter{VerbboxLineNo}{1}%
    #1\setbox0=\hbox{#1\the\verbatim@line}%
    \hsize=\wd0 \the\verbatim@line\par}}%
  \@minipagetrue%
  \@tempswatrue%
  \global\edef\sv@name{\@macro@name{#2}}%
  \global\edef\cverbboxColor{#4}%
  \global\edef\cverbboxFColor{#5}%
  \@ifundefined{\sv@name content}{%
    \expandafter\newsavebox\expandafter{\csname\sv@name content\endcsname}%
  }%
  \expandafter\global\expandafter\edef\csname\sv@name\endcsname{\usebox{%
  \csname\sv@name content\endcsname}}%
  \setbox0=\vbox\bgroup\color{#3} \verbatim
}
{%
  \endverbatim%
  \unskip\setbox0=\lastbox %
  \egroup%
  \setbox1=\hbox{%
    \colorbox{\cverbboxColor}{\box0}}%
  \global\sbox{\csname\sv@name content\endcsname}%
    {\fboxsep=\fboxrule\colorbox{\cverbboxFColor}{\box1}}%
}
\makeatother
\fboxrule=1pt\fboxsep=3pt\relax
\begin{document}
\lipsum[1]
\begin{figure*}[ht]
\begin{cverbbox}[\textcolor{black}{\scriptsize\theVerbboxLineNo~~}]{\mycvbox}{red!80}{blue!10}{cyan}
\verbatim <Text>
Here
%$#@&^* \macros
xa
\end{cverbbox}
\centerline{\mycvbox}
\caption*{My code chunk}
\end{figure*}
\lipsum[2]
\end{document}

score 3 · Answer 2 · edited Jun 10 '20 at 12:32

This approach is not a simple environment but a standard minted environment nested in you own float environment. Not exactly the asked but:

☑ Each line in a src code block is numbered (optionally)

☑ The font used for a src code block is monospaced (and syntax highlited)

☑ A border is drawn around a code code block, much like \fbox does (with top caption inside using \stdcaption, for a botom caption outside the box use \caption*)

☑ Each code block "floats" to a position (concretely to top of a new page) so that it will fit all on one page.

\documentclass[a6paper]{article}
\usepackage[margin=1cm, paperheight=5in,paperwidth=5in]{geometry}
\pagestyle{empty}
\usepackage{lipsum}
\let\stdcaption\caption
\setcounter{totalnumber}{1}
\usepackage{minted}
\usepackage{float}
\floatstyle{boxed}
\newfloat{fancycode}{t}{loa}
\floatname{fancycode}{LaTeX code}
\begin{document}
\begin{fancycode}
\stdcaption[Basic Structure]{The basic structure of a \LaTeX\ document.}
\begin{minted}[linenos,bgcolor=orange!05]{latex}
    \documentclass{article}
    \begin{document}
    \end{document}
\end{minted}
\end{fancycode}
\begin{fancycode}
\stdcaption[Preamble]{The \LaTeX\ preamble to do a \texttt{fancycode}.}
\begin{minted}[linenos,bgcolor=cyan!10]{latex}
    \usepackage{minted}
    \usepackage{float}
        \floatstyle{boxed}
        \newfloat{fancycode}{t}{loa}
        \floatname{fancycode}{LaTeX code}
\end{minted}
\end{fancycode}
\lipsum[1-2]
\listof{fancycode}{Code examples}
\end{document}
