Bar char/graph with node being actual value and percentage

Question

I would like to have the node of each bar being the actual value and its corresponding percentage.

Here is what I have:

\begin{figure}[h]
    \centering
\begin{tikzpicture}
                \tikzstyle{every node}=[font=\scriptsize]
                \begin{axis}[
                axis lines*=left,
                title=myTitle,
                xbar,
                xmin=0,
                xmax=50,
                width=9cm,
                height=5cm,
                enlarge y limits=0.3,
                xlabel={Number of Stuff},
                symbolic y coords={A, B, C},
                ytick=data,
                nodes near coords,
                point meta={x*100/44},
                nodes near coords={(\pgfmathprintnumber\pgfplotspointmeta\%)},
                nodes near coords align={horizontal},
                y tick label style={font=\scriptsize,text width=1.2cm,align=center}
                ]
                \addplot coordinates{(42,C) (40,B) (32,A)};
                \end{axis}
\end{tikzpicture}
    \caption{A test}
    \label{hist:auth}
\end{figure}

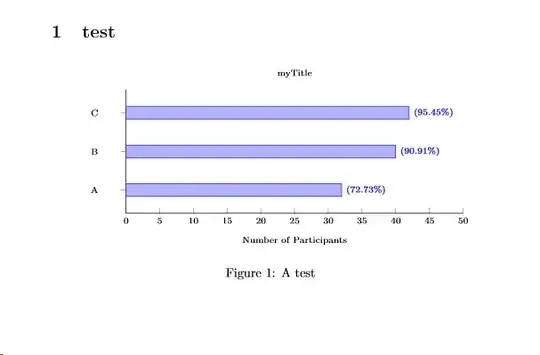

Which gives the following:

So I would like to have for example next to the bar for A the following node: 32 (73%).

I have been playing around with nodes near coords={(\pgfmathprintnumber\pgfplotspointmeta\%)} but I wasn't able to figure out.

Can you explain what you mean? Is it like what @marmot stated? "\tikzstyle is deprecated" — user1527152, Feb 21 '19 at 15:41
I was referring to this discussion. Using tikzpictures is fine, of course. Whether or not it is advantageous for this problem to drop pgfplots is another question. Personally would not drop it here. — , Feb 22 '19 at 17:56

score 1 · Accepted Answer · answered Feb 21 '19 at 00:47

The raw data is stored in rawx etc. \tikzstyle is deprecated.

\documentclass[tikz]{standalone}
\usepackage{pgfplots}
\pgfplotsset{compat=1.16}
\begin{document}
\begin{tikzpicture}[every node/.append style={font=\scriptsize}]
  \begin{axis}[visualization depends on=rawx \as \myx,
     axis lines*=left,
     title=myTitle,
     xbar,
     xmin=0,
     xmax=50,
     width=9cm,
     height=5cm,
     enlarge y limits=0.3,
     xlabel={Number of Stuff},
     symbolic y coords={A, B, C},
     ytick=data,
     nodes near coords,
     point meta={x*100/44},
     nodes near coords={\pgfmathprintnumber\myx~(\pgfmathprintnumber\pgfplotspointmeta\%)},
     nodes near coords align={horizontal},
     y tick label style={font=\scriptsize,text width=1.2cm,align=center}
     ]
     \addplot coordinates{(42,C) (40,B) (32,A)};
  \end{axis}
\end{tikzpicture}
\end{document}

Oh nice! I wasn't aware of \tikzstyle being deprecated. Good to know. — user1527152, Feb 21 '19 at 01:21
@user1527152 It is not "badly" deprecated. In the case at hand, it wouldn't have made too much of a difference. But there are cases where it will, and there are no real advantages (IMHO) to use it, so I personally avoid using it. — , Feb 21 '19 at 04:07

score 0 · Answer 2 · answered Feb 22 '19 at 14:21

Here is a way using pure TikZ

\documentclass[tikz,border=3mm]{standalone}
\begin{document}
\begin{tikzpicture}[x=1.5cm]
\pgfkeys{/pgf/number format/.cd,fixed,precision=2}

\foreach \i in {0,1,...,5}{
\pgfmathsetmacro{\num}{int(10*\i)}
\draw (\i,0) node[below=1mm]{$\num$}--+(90:2mm);
}
% Total 44 participants
\foreach \j/\jtext/\jnum in {1/A/32,2/B/40,3/C/42}{
\draw (0,\j) node[left=5mm]{\jtext}--+(180:2mm);
\pgfmathsetmacro{\jpercent}{\jnum/44*100};
\draw[blue!50,line width=3mm] (0,\j)--+(0:\jnum/10)
node[right,blue]{$\jnum \;(\pgfmathprintnumber{\jpercent} \%)$};
}

\draw (0,3.5)--(0,0)--(5,0);
\path
(current bounding box.north) node[above]{My title}
(current bounding box.south) node[below=2mm]{Number of Participants};
\end{tikzpicture}
\end{document}

Sorry but I'm still confused on what is the point you are trying to get across? I used the figure environment in my example because it is like that in my sources. Are you recommending to separate tikz picture from an whole document? — user1527152, Feb 23 '19 at 15:49
@ user152712 You just copy \begin{tikzpicture}....\end{tikzpicture} in my code, then paste into \begin{tikzpicture}....\end{tikzpicture} in your code you posted in the question — Black Mild, Feb 23 '19 at 18:44
